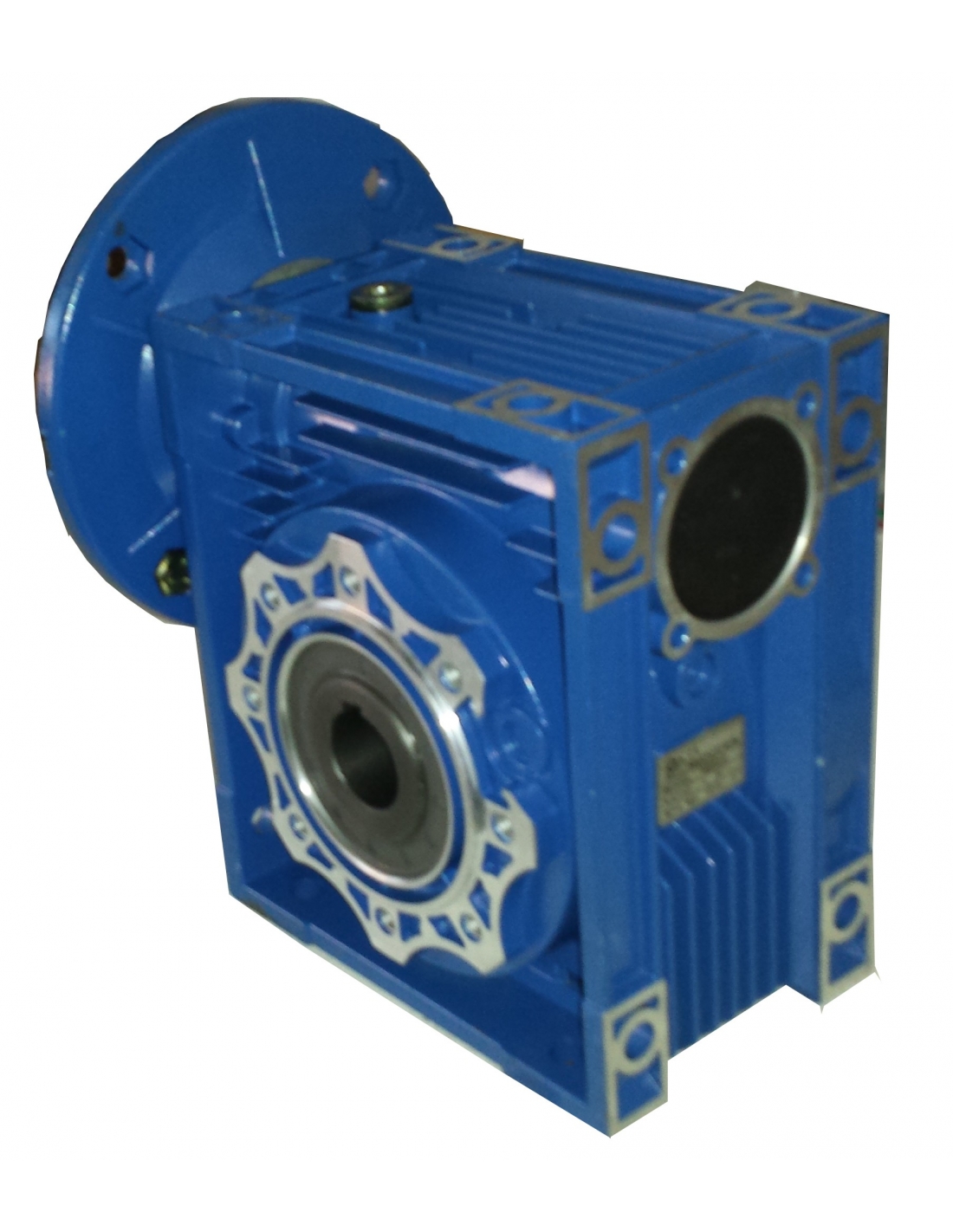

Endless reducer crown Size 90 Flange PAM 250/28 - Motor housing 100 B5

€261.24 Tax included

€215.90 tax excl.

Free shipping!

With hollow output shaft of Ø35mm, and input flange PAM 250/28 (Ø Ext 250mm and Ø Input shaft 28mm) type B5, suitable for motors with housing size 100.

Reduction ratios: 7,5-10-15-20-25-30.

The powers of the usual engines at 1500 rpm are:

  • 3CV Max. net. i=30.
  • 4CV Max. net. i=20.
  • 5.5CV Max. net. i=10.
Reduction ratio
  • 7.5
  • 10
  • 15
  • 20
  • 25
  • 30

No queries yet, leave the first!


Endless reducer crown size 90, compact execution and high performance, with hollow output shaft of 35mm and inlet shaft of 28mm.

This reducer size supports motors with B5 flange size 100, this flange size has an OExterior of 250mm and the reducer has an input shaft diameter of 28mm. PAM 250/28.

Dimensiones brida entrada reductor sinfin corona

  • Q: 250mm.
  • M: 215mm.
  • N: 180mm.
  • D: 28mm.

Engine power at 1500 rpm commonly used for this type of gearbox and with higher service factor fs≥1 are:

  • 3CV 1500rpm. Maximum reduction I-30.
  • 4CV 1500rpm. Maximum reduction I-20.
  • 5.5CV 1500rpm. Maximum reduction I-10.

The reduction ratios (i) available are from 7.5 to 30, depending on the input revolutions we can get the following revolutions on the output axis shown in the following table.

Tabla de revoluciones de salida reductores

Dimensiones reductor corona sinfin tamaño 90

You can download all the dimensions of the reducer by clicking on the "DOWNLOADS" tab.
