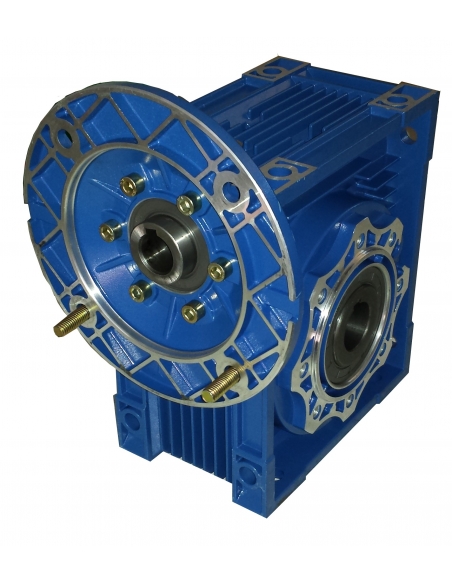

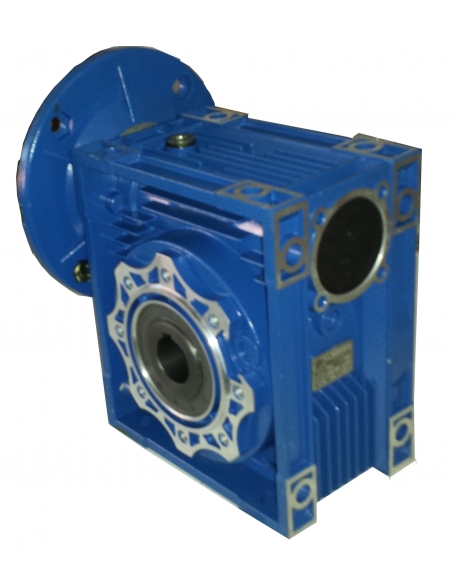

Endless crown reducer Size110 Flange PAM 200/19 - Motor housing 80 B5

€403.50 Tax included

€333.47 tax excl.

Free shipping!

With hollow output shaft of 42mm, and input flange PAM 200/19 (Ø Ext 200mm and Ø Input shaft 19mm) type B5, suitable for motors with housing size 80.

Reduction ratios: 100.

Powers of usual engines at 1500 rpm are:

  • 0.75CV Network. i=100.
  • 1CV Network. i=100.
Reduction ratio
  • 100

No queries yet, leave the first!


Endless reducer crown size 110, compact execution and high performance, with hollow output shaft of 42mm and input shaft of 19mm.

This reducer size supports motors with B5 flange size 80, this flange size has an OExterior of 200mm and the reducer has an input shaft diameter of 19mm.

Dimensiones brida entrada reductor sinfin corona

  • Q: 200mm.
  • D: 19mm.

Engine power at 1500 rpm commonly used for this type of gearbox and with higher service factor fs≥1 are:

  • 0.75CV 1500rpm. Reduction I-100.
  • 1CV 1500rpm. Reduction I-100.

The reduction ratios (i) available are from 7.5 to 100, depending on the input revolutions we can get the following revolutions on the output axis shown in the following table.

Tabla de revoluciones de salida reductores

You can download all the dimensions of the reducer by clicking on the "DOWNLOADS" tab.

Dimensiones reductor tamaño 110
