€62.27 Tax included

€51.46 tax excl.

With hollow output shaft of Ø14mm, and input flange PAM 80/9 (Ø Ext 80mm and Ø Input shaft 9mm) type B14, suitable for motors with housing size 56.

Reduction ratios available: 7.5-10-15-20-25-30-40-50-63-80.

The powers of the usual motors for these reducers are 0.12hp and 0.16hp (maximum recommended ratio I = 60) 1500 rpm.


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Reduction ratio
  • 7.5
  • 10
  • 15
  • 20
  • 25
  • 30
  • 40
  • 50
  • 60
  • 80

No queries yet, leave the first!

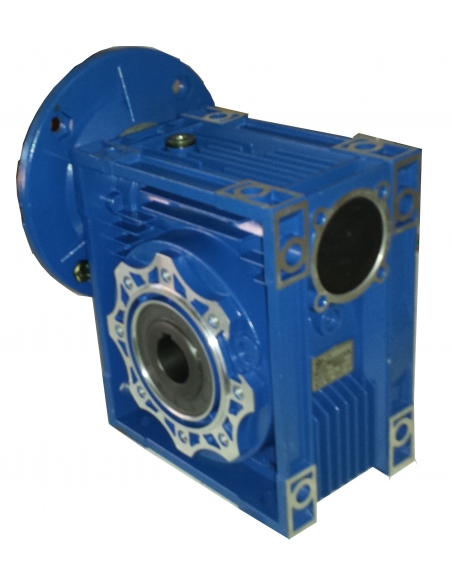

Endless reducer crown of size 30,compact execution and high performance, with hollow output shaft of Ø14mm and input shaft of Ø9mm.

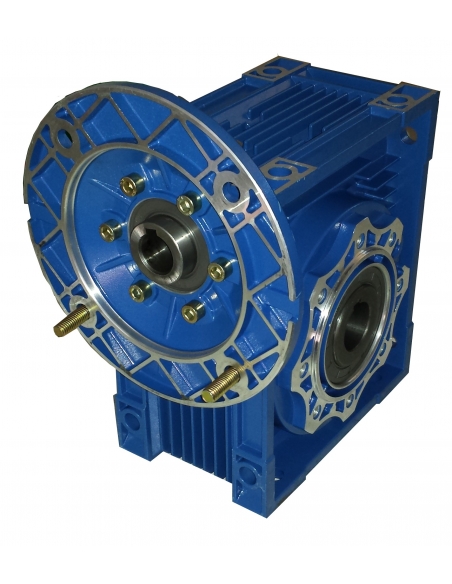

This reducer size supports B14 flange motors size 56, this flange size has an outer diameter of 80mm, and the reducer has an inlet shaft diameter of 9mm, PAM 80/9.

Dimensiones brida entrada reductor sinfin corona

  • P: 80mm.
  • M: 65mm.
  • N: 50mm.
  • D: Ø9mm.

Usual motors for these reducers are 0.16hp and 0.25hp (max recommended ratio I=25) 1500 rpm.

The reduction ratios (i) available are from 7.5 to 100, depending on the input revolutions we can obtain the following revolutions on the output axis shown in the following table.

Tabla de revoluciones de salida reductores

Dimensiones reductor sinfin corona tamaño 30

You can download all the dimensions of the reducer by clicking on the "ATTACHMENTS" tab.


Material for professional use, install in compliance with the regulations in force at the installation site.
