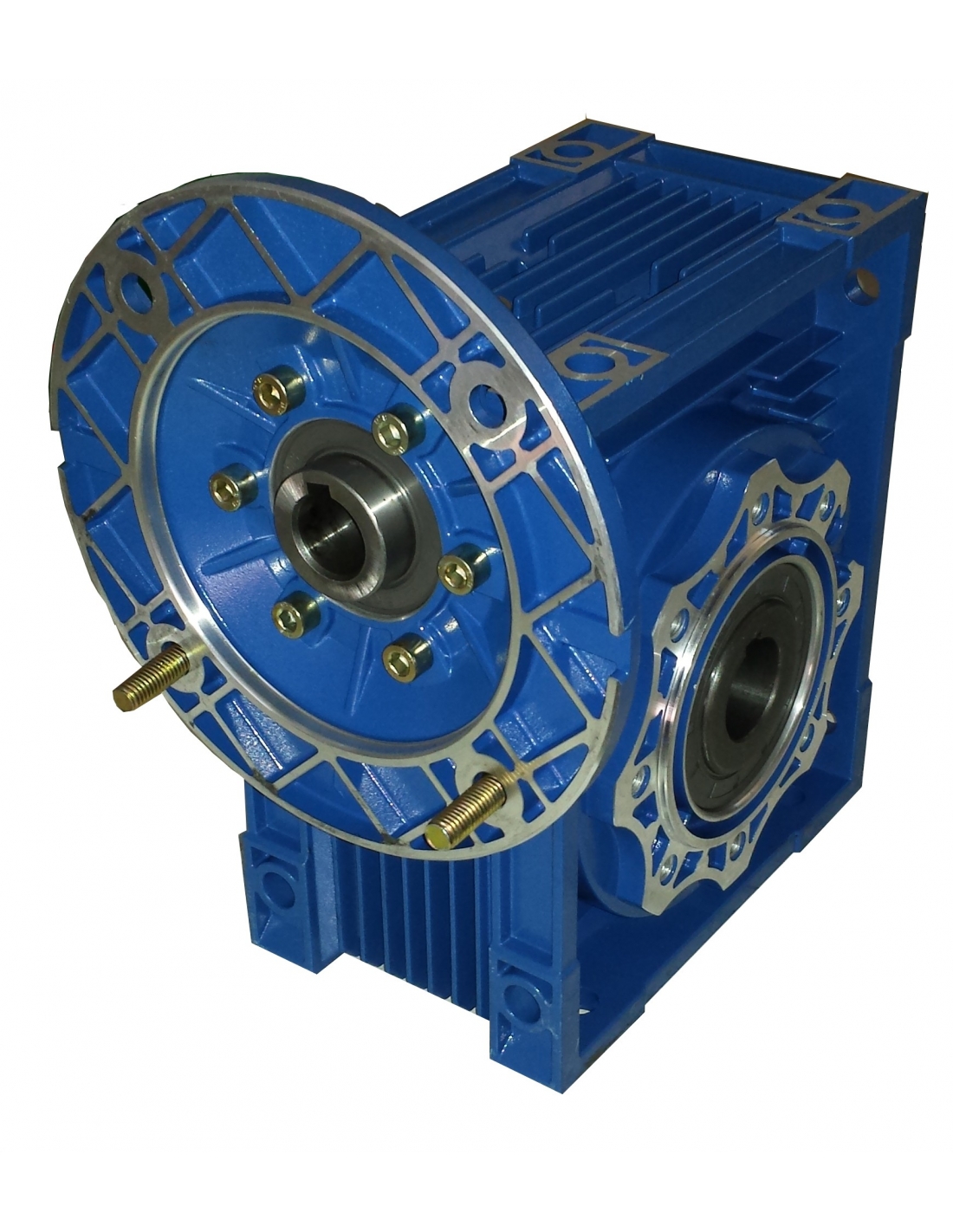

Endless reducer crown Size 110 Flange PAM 200/24 - Motor housing 90 B5

€403.50 Tax included

€333.47 tax excl.

Free shipping!

With hollow output shaft of Ø42mm, and input flange PAM 200/24 (Ø Ext 200mm and Ø Input shaft 24mm) type B5, suitable for motors with housing size 90.

Reduction ratios: 50-60-80.

Powers of usual engines at 1500 rpm are:

  • 1.5CV Network. i=50-80.
  • 2CV Network. i=50-80.
  • 3CV Car. reduced, Network. i=50 and 60.
Reduction ratio
  • 50
  • 60
  • 80

No queries yet, leave the first!

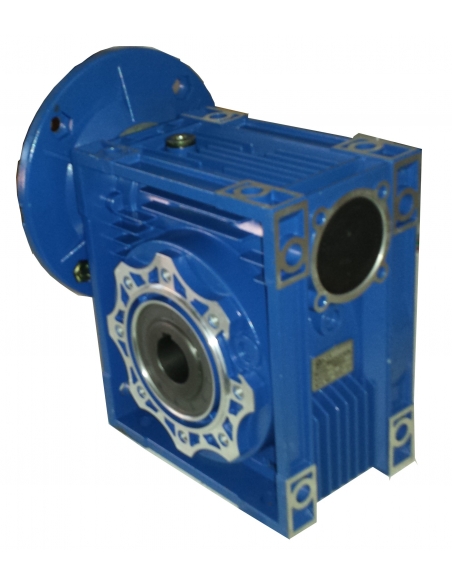

Endless crown reducer of size 110, compact execution and high performance, with hollow output shaft of Ø42mm and input shaft of Ø24mm.

This reducer size supports B5 flange motors size 90, this flange size has an Outer Ø of 200mm and the reducer has an inlet shaft diameter of 24mm.

Dimensiones brida entrada reductor sinfin corona

  • P: 200mm.
  • M:
  • N:
  • D: Ø24mm.

The powers of the motors at 1500 rpm usually used for this type of reducers and with higher service factor fs≥1 are:

  • 1.5CV 1500rpm. Reduction I = 50 to 80.
  • 2CV 1500rpm. Reduction I = 50 to 80.
  • 3 hp 1500rpm reduced housing. Reduction I=50 and 60.

The reduction ratios (i) available are from 7.5 to 100, depending on the input revolutions we can obtain the following revolutions on the output axis shown in the following table.

Tabla de revoluciones de salida reductores

You can download all the dimensions of the reducer by clicking on the "ATTACHMENTS" tab.

Dimensiones reductor tamaño 110
