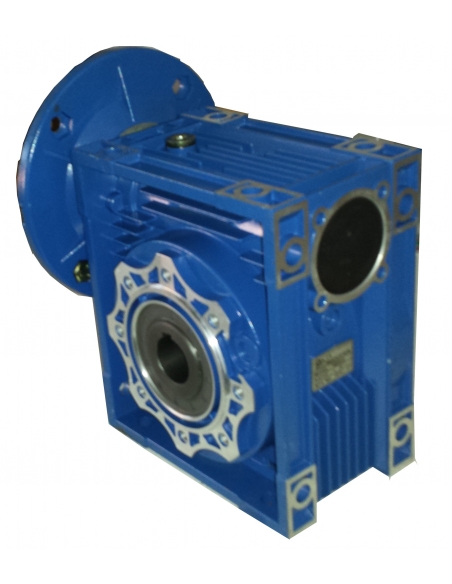

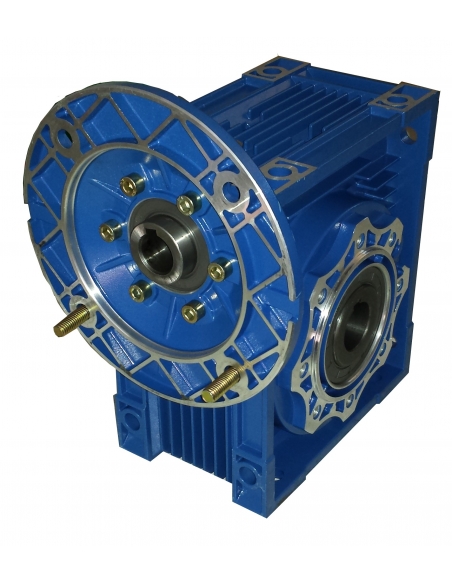

Crown Endless Reducer Size 25 Flange PAM 80/9 - Motor housing 56 B14
Crown Endless Reducer Size 25 Flange PAM 80/9 - Motor housing 56 B14
Crown Endless Reducer Size 25 Flange PAM 80/9 - Motor housing 56 B14
Crown Endless Reducer Size 25 Flange PAM 80/9 - Motor housing 56 B14

Crown Endless Reducer Size 25 Flange PAM 80/9 - Motor housing 56 B14

€57.50 Tax included

€47.52 tax excl.

With hollow outlet shaft diameter 11mm, and PAM 80/9 inlet flange (Ext diameter 80mm and diameter 9mm inlet shaft) type B14, suitable for motors with size 56 housing.

Reduction ratios available: 10-15-20-30-40-50-60.

Usual motor powers for these reducers are 0.08hp, 0.12hp and 0.16hp reduced housing (maximum recommended ratio I = 25) 1500 rpm.


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Reduction ratio
  • 10
  • 15
  • 20
  • 30
  • 40
  • 50
  • 60

No queries yet, leave the first!


Endless reducer crown size 25,compact execution and high performance, with hollow shaft output of 11mm and inlet shaft of 9mm.

This reducer size supports motors with flange B14 size 56, this flange size has an OExterior of 80mm and the reducer has an input shaft diameter of 9mm, PAM 80/9.

Dimensiones brida entrada reductor sinfin corona

  • Q: 80mm.
  • M: 65mm.
  • N: 50mm.
  • D: 9mm.

Common motors for these gearboxes are 0.08CV and 0.12CV in normal housing, and 0.16CV in reduced housing (max recommended ratio I-25) 1500 rpm.

The available reduction ratios (i) are from 10 to 60, depending on the input revolutions we can get the following revolutions on the output axis shown in the following table.

Tabla de revoluciones de salida reductores

Dimensiones reductor tamaño 25

You can download all the dimensions of the reducer by clicking on the "DOWNLOADS" tab.


Material for professional use, install in compliance with the regulations in force at the installation site.
