3-position metal selector with return 2 open...

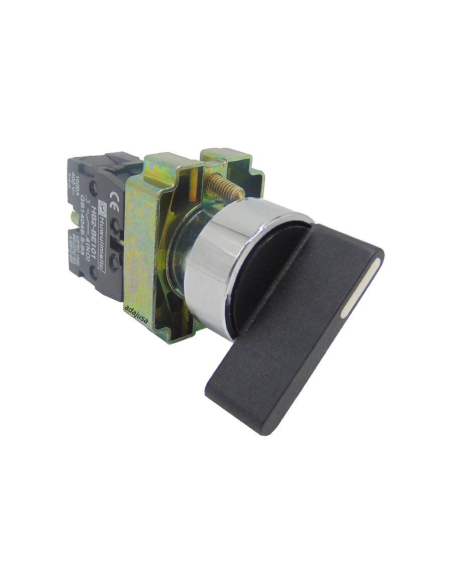

3-position metal selector with return 2 open contacts (NO) complete with long handle

3-position metal selector with return 2 open contacts (NO) complete with long handle

€3.80 Tax included

€3.14 tax excl.

Long handle metal selector with 3 positions with return (1 fixed position and 2 others keeping it activated), 2 open contacts (NO).

The supply includes the complete selector with two open contacts.

Reference: NYBD53KLO

Electrical diagram of selector 2 NO with return
Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Long handle metal selector 3 positions with return (a fixed position in the others remains as long as it is activated), 2 open contacts (NO), possibility of adding additional contacts. drill diameter 22mm.

The supply includes the complete selector with two open contacts.

Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: NYBD53KLO
  • Color: black
  • Number of positions: 3 monostable positions (with return)
  • Contact : 2 NO
  • Material: metal.
  • Ith Intensity: 10(6)A
  • Intensity Ie (AC1, 230V): 6A
  • Intensity Ie (AC15, 230V): 3A
  • Intensity Ie (DC15, 250V): 0.27A
  • Ui voltage: 660V
  • Contact resistance: 50 mOhm.
  • Protection grade: IP42
  • Regulations: EN 60947-1; EN 60947-5-1
Long lever selector dimensions

Material for professional use, install in compliance with the regulations in force at the installation site.
