Three-phase electric motors 750 rpm flange B5 aluminum housing

Standard IEC three-phase electric motors asinchrone, flanges type B5, 8 poles, 750 rpm (in sync). Oil retention on the output shaft and rear shield cap to prevent dust, water, oil or foreign particles from entering the engine. Tropicalized winding impregnated with high insulation resin. Aluminum housing. - IP55 Fully closed. - Ventilation: Exterior. - Insulation Class F - EFF2 - For aggressive environments - Voltages: 230/400 V., 50 Hz. - Number of poles: 8 (750 rpm). - Flange type: B5.

Three-phase motor 0.09Kw... Three-phase motor 0.09Kw... 2
Three-phase electric motors 750 rpm flange B5 aluminum housing

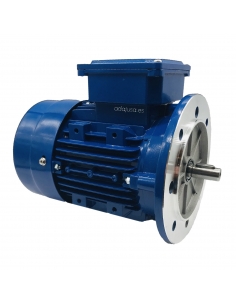

Three-phase motor 0.09Kw 0.12HP 230/400V 750 rpm Flange B5 aluminum housing

SS7118B54E1
€111.25 (€91.94 tax excl.)
Three-phase electric motor 0.09kW (0.12HP) 230/400V 750 rpm (8 Poles) Flange B5, aluminum housing. Manufactured under European IEC regulations. Voltage: 230/400Vac 50/60Hz. number of poles: 8. Revs: 750 rpm. Flange: B5. Shaft diameter: 14mm. Flange diameter: 160mm. Power: 0.09Kw - 0.12Hp. Size: 71. Energy efficiency: IE1. Representative...
Three-phase motor 0.12Kw... Three-phase motor 0.12Kw... 2
Three-phase electric motors 750 rpm flange B5 aluminum housing

Three-phase motor 0.12Kw 0.16CV 230/400V 750 rpm B5 flange aluminum casing

SS7128B54E1
€131.78 (€108.91 tax excl.)
Three-phase electric motor 0.12kW (0.16CV) 230/400V 750 rpm (8 Poles) B5 flange, aluminum housing. Manufactured under European IEC regulations. Reference: SS-71M2-8 B5 Voltage: 230/400Vac 50/60Hz. number of poles: 8. Revolutions: 750 rpm . Flange: B5. Shaft diameter: 14mm. flange diameter: Ø160mm. Power: 0.12Kw - 0.16Cv. Size: 71. Energy efficiency: IE1....
Three-phase motor 0.18Kw... Three-phase motor 0.18Kw... 2
Three-phase electric motors 750 rpm flange B5 aluminum housing

Three-phase motor 0.18Kw 0.25CV 230/400V 750 rpm B5 flange aluminum casing

SS8018B54E1
€137.83 (€113.91 tax excl.)
Three-phase electric motor 0.18kW (0.25CV) 230/400V 750 rpm (8 Poles) B5 flange, aluminum housing. Manufactured under European IEC regulations. Reference: SS-80M1-8 B5 Voltage: 230/400Vac 50/60Hz. number of poles: 8. Revolutions: 750 rpm . Flange: B5. Shaft diameter: 19mm. flange diameter: Ø200mm. Power: 0.18Kw - 0.25Cv. Size: 80. Energy efficiency: IE1....
Three-phase motor 0.25Kw... Three-phase motor 0.25Kw... 2
Three-phase electric motors 750 rpm flange B5 aluminum housing

Three-phase motor 0.25Kw 0.33CV 230/400V 750 rpm B5 flange aluminum casing

SS8028B54E1
€145.97 (€120.64 tax excl.)
Three-phase electric motor 0.25kW (0.33CV) 230/400V 750 rpm (8 Poles) B5 flange, aluminum housing. Manufactured under European IEC regulations. Reference: SS-80M2-8 B5 Voltage: 230/400Vac 50/60Hz. number of poles: 8. Revolutions: 750 rpm . Flange: B5. Shaft diameter: 19mm. flange diameter: Ø200mm. Power: 0.25Kw - 0.33Cv. Size: 80. Energy...
Three-phase motor 0.37Kw... Three-phase motor 0.37Kw... 2
Three-phase electric motors 750 rpm flange B5 aluminum housing

Three-phase motor 0.37Kw 0.5CV 230/400V 750 rpm B5 flange aluminum casing

SS90S8B54E1
€160.95 (€133.02 tax excl.)
Three-phase electric motor 0.37kW (0.5CV) 230/400V 750 rpm (8 Poles) B5 flange, aluminum housing. Manufactured under European IEC regulations. Reference: SS-90S-8 B5 Voltage: 230/400Vac 50/60Hz. number of poles: 8. Revolutions: 750 rpm . Flange: B5. Shaft diameter: 24mm. flange diameter: Ø200mm. Power: 0.37Kw - 0.5Cv. Size: 90. Energy...
Three-phase motor 0.55Kw... Three-phase motor 0.55Kw... 2
Three-phase electric motors 750 rpm flange B5 aluminum housing

Three-phase motor 0.55Kw 0.75CV 230/400V 750 rpm B5 flange aluminum casing

SS90L8B54E1
€169.64 (€140.20 tax excl.)
Three-phase electric motor 0.55kW (0.75CV) 230/400V 750 rpm (8 Poles) B5 flange, aluminum housing. Manufactured under European IEC regulations. Reference: SS-90L-8 B5 Voltage: 230/400Vac 50/60Hz. number of poles: 8. Revolutions: 750 rpm . Flange: B5. Shaft diameter: 24mm. flange diameter: Ø200mm. Power: 0.55Kw - 0.75Cv. Size: 90. Energy...
Three-phase motor 0.75Kw... Three-phase motor 0.75Kw... 2
Three-phase electric motors 750 rpm flange B5 aluminum housing

Three-phase motor 0.75Kw 1CV 230/400V 750 rpm B5 flange aluminum casing

SS100L18B54E1
€220.56 (€182.28 tax excl.)
Three-phase electric motor 0.75kW (1CV) 230/400V 750 rpm (8 Poles) B5 flange, aluminum housing. Manufactured under European IEC regulations. Reference: SS-100L1-8 B5 Voltage: 230/400Vac 50/60Hz. number of poles: 8. Revolutions: 750 rpm . Flange: B5. Shaft diameter: 28mm. flange diameter: Ø250mm. Power: 0.75Kw - 1Cv. Size: 100. Energy...
Free shipping!
Three-phase motor 1.1Kw... Three-phase motor 1.1Kw... 2
Three-phase electric motors 750 rpm flange B5 aluminum housing

Three-phase motor 1.1Kw 1.5CV 230/400V 750 rpm B5 flange aluminum casing

SS100L28B54E1
€242.22 (€200.18 tax excl.)
Three-phase electric motor 1.1kW (1.5CV) 230/400V 750 rpm (8 Poles) B5 flange, aluminum housing. Manufactured under European IEC regulations. Reference: SS-100L2-8 B5 Voltage: 230/400Vac 50/60Hz. number of poles: 8. Revolutions: 750 rpm . Flange: B5. Shaft diameter: 28mm. flange diameter: Ø250mm. Power: 1.1Kw - 1.5Cv. Size: 100. Energy...
Free shipping!
Three-phase motor 1.5Kw 2CV... Three-phase motor 1.5Kw 2CV... 2
Three-phase electric motors 750 rpm flange B5 aluminum housing

Three-phase motor 1.5Kw 2CV 230/400V 750 rpm B5 flange aluminum casing

SS112M8B54E1
€302.05 (€249.63 tax excl.)
Three-phase electric motor 1.5kW (2CV) 230/400V 750 rpm (8 Poles) B5 flange, aluminum housing. Manufactured under European IEC regulations. Reference: SS-112M-8 B5 Voltage: 230/400Vac 50/60Hz. number of poles: 8. Revolutions: 750 rpm . Flange: B5. Shaft diameter: 28mm. flange diameter: Ø250mm. Power: 1.5Kw - 2Cv. Size: 112. Energy efficiency:...
Free shipping!
Three-phase motor 2.2Kw 3CV... Three-phase motor 2.2Kw 3CV... 2
Three-phase electric motors 750 rpm flange B5 aluminum housing

Three-phase motor 2.2Kw 3CV 230/400V 750 rpm B5 flange aluminum casing

SS132S8B54E1
€477.95 (€395.00 tax excl.)
Three-phase electric motor 2.2kW (3CV) 230/400V 750 rpm (8 Poles) B5 flange, aluminum housing. Manufactured under European IEC regulations. Reference: SS-132S-8 B5 Voltage: 230/400Vac 50/60Hz. number of poles: 8. Revolutions: 750 rpm . Flange: B5. Shaft diameter: 38mm. flange diameter: Ø300mm. Power: 2.2Kw - 3Cv. Size: 132. Energy efficiency:...
Free shipping!
Three-phase motor 3Kw 4HP... Three-phase motor 3Kw 4HP... 2
Three-phase electric motors 750 rpm flange B5 aluminum housing

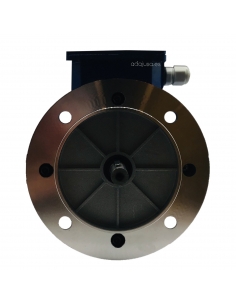

Three-phase motor 3Kw 4HP 230/400V 750 rpm Flange B5 aluminum housing

SS132M8B54E1
€530.84 (€438.71 tax excl.)
Three-phase electric motor 3kW (4HP) 230/400V 750 rpm (8 Poles) Flange B5, aluminum housing. Manufactured under European IEC regulations. Voltage: 230/400Vac 50/60Hz. number of poles: 8. Revs: 750 rpm. Flange: B5. Shaft diameter: 38mm. flange diameter: Ø300mm. Power: 3Kw - 4HP. Size: 132. Energy efficiency: IE1. Representative image...
Free shipping!
