Three-phase brake motors 1500 rpm flange B14 - MGM

Three-phase electric motors with brake,standard asynchronous IEC, flanges type B14, 4 poles, 1500 rpm (in sync). 230/400V and 400/690V., 50 Hz. Oil retention on the output shaft and rear shield cap to prevent dust, water, oil or foreign particles from entering the engine. Tropicalized winding impregnated with high insulation resin. Aluminum housing. - IP55 Fully closed. - Ventilation: Exterior. - Insulation Class F - EFF2 - For aggressive environments - Voltages: 230/400V. 400/690V. - Number of poles: 4 (1500 rpm). - Flange type: B14.

Three-phase motor 0.18Kw...
Three-phase brake motors 1500 rpm flange B14 - MGM

Three-phase motor 0.18Kw 0.25HP with brake 230/400V 1500 rpm B14 flange - MGM

MGMBMX63B4B14
€383.30 (€316.78 tax excl.)
Three-phase self-braking electric motor 0.18kW (0.25HP) 230/400Vac., 1500 rpm (4 Poles), B14 flange, aluminum housing. Manufactured under European IEC regulations. Manufacturer: MGM Reference: BMX63B4 B14 Voltage: 230/400Vac 50/60Hz. Power: 0.18Kw - 0.25HP. Number of poles: 4. Revolutions: 1500 rpm . Flange: B14. Shaft diameter: 11mm. flange diameter:...
Three-phase motor 0.25Kw...
Three-phase brake motors 1500 rpm flange B14 - MGM

Three-phase motor 0.25Kw 0.33HP with brake 230/400V 1500 rpm B14 flange - MGM

MGMBAX71A4B14
€407.20 (€336.53 tax excl.)
Three-phase self-braking electric motor 0.25kW (0.33HP) 230/400Vac., 1500 rpm (4 Poles), B14 flange, aluminum housing. Manufactured under European IEC regulations. Manufacturer: MGM Reference: BAX71A4 B14 Voltage: 230/400Vac 50/60Hz. Power: 0.25Kw - 0.33HP. Number of poles: 4. Revolutions: 1500 rpm . Flange: B14. Shaft diameter: 14mm. flange diameter:...
Three-phase motor 0.37Kw...
Three-phase brake motors 1500 rpm flange B14 - MGM

Three-phase motor 0.37Kw 0.5HP with brake 230/400V 1500 rpm B14 flange - MGM

MGMBAX71B4B14
€433.86 (€358.56 tax excl.)
Three-phase self-braking electric motor 0.37kW (0.5HP) 230/400Vac., 1500 rpm (4 Poles), B14 flange, aluminum housing. Manufactured under European IEC regulations. Manufacturer: MGM Reference: BAX71B4 B14 Voltage: 230/400Vac 50/60Hz. Power: 0.37Kw - 0.5HP. Number of poles: 4. Revolutions: 1500 rpm . Flange: B14. Shaft diameter: 14mm. flange diameter:...
Three-phase motor 0.55Kw...
Three-phase brake motors 1500 rpm flange B14 - MGM

Three-phase motor 0.55Kw 0.75CV with brake 230/400V 1500 rpm B14 flange - MGM

MGMBAX80A4B14
€514.75 (€425.41 tax excl.)
Three-phase self-braking electric motor 0.55kW (0.75HP) 230/400Vac., 1500 rpm (4 Poles), B14 flange, aluminum housing. Manufactured under European IEC regulations. Manufacturer: MGM Reference: BAX80A4 B14 Voltage: 230/400Vac 50/60Hz. Power: 0.55Kw - 0.75HP. Number of poles: 4. Revolutions: 1500 rpm . Flange: B14. Shaft diameter: 19mm. flange diameter:...
Three-phase motor 0.75Kw...
Three-phase brake motors 1500 rpm flange B14 - MGM

Three-phase motor 0.75Kw 1HP with brake 230/400V 1500 rpm B14 flange - MGM

MGMBAX80B4B14
€565.31 (€467.20 tax excl.)
Three-phase self-braking electric motor 0.75kW (1HP) 230/400Vac., 1500 rpm (4 Poles), B14 flange, aluminum housing. Manufactured under European IEC regulations. Manufacturer: MGM Reference: BAX80B4 B14 Voltage: 230/400Vac 50/60Hz. Power: 0.75Kw - 1HP. Number of poles: 4. Revolutions: 1500 rpm . Flange: B14. Shaft diameter: 19mm. flange diameter: 120mm....
Three-phase motor 1.1Kw...
Three-phase brake motors 1500 rpm flange B14 - MGM

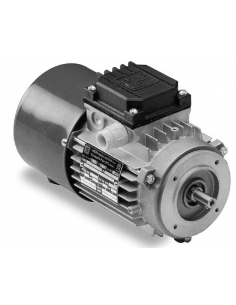

Three-phase motor 1.1Kw 1.5HP with brake 230/400V 1500 rpm B14 flange - MGM

BAX90SA4B14
€684.80 (€565.95 tax excl.)
Three-phase self-braking electric motor 1.1kW (1.5HP) 230/400Vac., 1500 rpm (4 Poles), B14 flange, aluminum housing. Manufactured under European IEC regulations. Manufacturer: MGM Reference: BAX90SA4 B14 Voltage: 230/400Vac 50/60Hz. Power: 1.1Kw - 1.5HP. Number of poles: 4. Revolutions: 1500 rpm . Flange: B14. Shaft diameter: 24mm. flange diameter: 140mm....
Three-phase motor 1.5Kw 2HP...
Three-phase brake motors 1500 rpm flange B14 - MGM

Three-phase motor 1.5Kw 2HP with brake 230/400V 1500 rpm B14 flange - MGM

BAX90LA4B14
€744.55 (€615.33 tax excl.)
Three-phase self-braking electric motor 1.5kW (2HP) 230/400Vac., 1500 rpm (4 Poles), B14 flange, aluminum housing. Manufactured under European IEC regulations. Manufacturer: MGM Reference: BAX90LA4 B14 Voltage: 230/400Vac 50/60Hz. Power: 1.5Kw - 2HP. Number of poles: 4. Revolutions: 1500 rpm . Flange: B14. Shaft diameter: 24mm. flange diameter: 140mm. PAM...
Three-phase motor 2.2Kw 3HP...
Three-phase brake motors 1500 rpm flange B14 - MGM

Three-phase motor 2.2Kw 3HP with brake 230/400V 1500 rpm B14 flange - MGM

BAX100LA4B14
€902.65 (€745.99 tax excl.)
Three-phase self-braking electric motor 2.2kW (3HP) 230/400Vac., 1500 rpm (4 Poles), B14 flange, aluminum housing. Manufactured under European IEC regulations. Manufacturer: MGM Reference: BAX100LA4 B14 Voltage: 230/400Vac 50/60Hz. Power: 2.2Kw - 3HP. Number of poles: 4. Revolutions: 1500 rpm . Flange: B14. Shaft diameter: 28mm. flange diameter: 160mm....
Three-phase motor 3Kw 4HP...
Three-phase brake motors 1500 rpm flange B14 - MGM

Three-phase motor 3Kw 4HP with brake 230/400V 1500 rpm B14 flange - MGM

BAX112MB4B14
€1,050.64 (€868.30 tax excl.)
Three-phase self-braking electric motor 3kW (4HP) 230/400Vac., 1500 rpm (4 Poles), B14 flange, aluminum housing. Manufactured under European IEC regulations. Manufacturer: MGM Reference: BAX112MB4 B14 Voltage: 230/400Vac 50/60Hz. Power: 3Kw - 4CV. Number of poles: 4. Revolutions: 1500 rpm . Flange: B14. Shaft diameter: 28mm. flange diameter: 160mm. PAM :...
Three-phase motor 4Kw 5.5HP...
Three-phase brake motors 1500 rpm flange B14 - MGM

Three-phase motor 4Kw 5.5HP with brake 230/400V 1500 rpm B14 flange - MGM

BAX112MC4B14
€1,244.59 (€1,028.59 tax excl.)
Three-phase self-braking electric motor 4kW (5.5HP) 230/400Vac., 1500 rpm (4 Poles), B14 flange, aluminum housing. Manufactured under European IEC regulations. Manufacturer: MGM Reference: BAX112MC4 B14 Voltage: 230/400Vac 50/60Hz. Power: 4Kw - 5.5HP. Number of poles: 4. Revolutions: 1500 rpm . Flange: B14. Shaft diameter: 28mm. flange diameter: 160mm....
Three-phase motor 5.5Kw...
Three-phase brake motors 1500 rpm flange B14 - MGM

Three-phase motor 5.5Kw 7.5HP with brake 400/690V 1500 rpm B14 flange - MGM

BAX132SB4B14
€1,744.64 (€1,441.85 tax excl.)
Three-phase self-braking electric motor 5.5kW (7.5HP) 400/690Vac., 1500 rpm (4 Poles), B14 flange, aluminum housing. Manufactured under European IEC regulations. Manufacturer: MGM Reference: BAX132SB4 B14 Voltage: 400/690Vac 50/60Hz. Power: 5.5Kw - 7.5HP. Number of poles: 4. Revolutions: 1500 rpm . Flange: B14. Shaft diameter: 38mm. flange diameter:...
Three-phase motor 7.5Kw...
Three-phase brake motors 1500 rpm flange B14 - MGM

Three-phase motor 7.5Kw 10HP with brake 400/690V 1500 rpm B14 flange - MGM

BAX132MA4B14
€1,885.28 (€1,558.08 tax excl.)
Three-phase self-braking electric motor 7.5kW (10HP) 400/690 Vac., 1500 rpm (4 Poles), B14 flange, aluminum housing. Manufactured under European IEC regulations. Manufacturer: MGM Reference: BAX132MA4 B14 Voltage: 400/690Vac 50/60Hz. Power: 7.5Kw - 10HP. Number of poles: 4. Revolutions: 1500 rpm . Flange: B14. Shaft diameter: 38mm. flange diameter: 200mm....
Showing 1-12 of 12 item(s)
