Three-phase electric motors 750 rpm flange B5 cast iron case

Standard IEC asinchronous three-phase electric motors, B5 type flange, 8 poles, 750 rpm (in sync). Oil retention on the output shaft and rear shield cap to prevent dust, water, oil or foreign particles from entering the engine. Tropicalized winding impregnated with high insulation resin. cast iron case. - IP55 Fully closed. - Ventilation: Exterior. - Class F insulation - EFF2 - For aggressive environments. - Voltages: 230/400 V., 50 Hz. - Number of poles: 8 (750 rpm). - Flange type: B5.

Three-phase motor 2.2Kw/3HP... Three-phase motor 2.2Kw/3HP... 2
Three-phase electric motors 750 rpm flange B5 cast iron case

Three-phase motor 2.2Kw/3HP 230/400V 750 rpm Flange B5 cast iron case

SSY132S8B541
€390.44 (€322.68 tax excl.)
Three-phase electric motor 2.2kW (3HP) 230/400V 750 rpm (8 Poles) Flange B5, cast housing. Manufactured under European IEC regulations. Voltage: 230/400Vac 50/60Hz. number of poles: 8. Revs: 750 rpm. Flange: B5. Shaft diameter: 38mm. Flange diameter: 300mm. Power: 2.2Kw - 3HP. Size: 132. Energy efficiency: IE1. Representative image for...
Three-phase motor 3Kw/4HP... Three-phase motor 3Kw/4HP... 2
Three-phase electric motors 750 rpm flange B5 cast iron case

Three-phase motor 3Kw/4HP 230/400V 750 rpm Flange B5 cast iron case

SSY132M8B541
€460.56 (€380.63 tax excl.)
Three-phase electric motor 3kW (4HP) 230/400V 750 rpm (8 Poles) Flange B5, cast housing. Manufactured under European IEC regulations. Voltage: 230/400Vac 50/60Hz. number of poles: 8. Revs: 750 rpm. Flange: B5. Shaft diameter: 38mm. Flange diameter: 300mm. Power: 3Kw - 4Hp. Size: 132. Energy efficiency: IE1. Representative image for...
Three-phase motor 4Kw 5.5HP... Three-phase motor 4Kw 5.5HP... 2
Three-phase electric motors 750 rpm flange B5 cast iron case

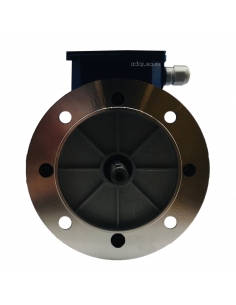

Three-phase motor 4Kw 5.5HP 230/400V 750 rpm Flange B5 cast iron case

SSY160M18B541
€627.80 (€518.84 tax excl.)
Three-phase electric motor 4kW (5.5HP) 230/400V 750 rpm (8 Poles) Flange B5, cast housing. Manufactured under European IEC regulations. Voltage: 230/400Vac 50/60Hz. number of poles: 8. Revs: 750 rpm. Flange: B5. Shaft diameter: 42mm. Flange diameter: 350mm. Power: 4Kw - 5.5Hp. Size: 160. Energy efficiency: IE1. Representative image for...
Three-phase motor 4Kw 5.5HP... Three-phase motor 4Kw 5.5HP... 2
Three-phase electric motors 750 rpm flange B5 cast iron case

Three-phase motor 4Kw 5.5HP 400/690V 750 rpm Flange B5 cast iron case

SSY160M18B561
€627.80 (€518.84 tax excl.)
Three-phase electric motor 4kW (5.5HP) 400/690V 750 rpm (8 Poles) Flange B5, cast housing. Manufactured under European IEC regulations. Voltage: 400/690Vac 50/60Hz. number of poles: 8. Revs: 750 rpm. Flange: B5. Shaft diameter: 42mm. Flange diameter: 350mm. Power: 4Kw - 5.5Hp. Size: 160. Energy efficiency: IE1. Representative image for...
Three-phase motor 5.5Kw... Three-phase motor 5.5Kw... 2
Three-phase electric motors 750 rpm flange B5 cast iron case

Three-phase motor 5.5Kw 7.5HP 230/400V 750 rpm Flange B5 cast iron case

SSY160M28B541
€704.35 (€582.11 tax excl.)
Three-phase electric motor 5.5kW (7.5HP) 230/400V 750 rpm (8 Poles) Flange B5, cast housing. Manufactured under European IEC regulations. Voltage: 230/400Vac 50/60Hz. number of poles: 8. Revs: 750 rpm. Flange: B5. Shaft diameter: 42mm. Flange diameter: 350mm. Power: 5.5Kw - 7.5Hp. Size: 160. Energy efficiency: IE1. Representative image for...
Three-phase motor 5.5Kw... Three-phase motor 5.5Kw... 2
Three-phase electric motors 750 rpm flange B5 cast iron case

Three-phase motor 5.5Kw 7.5HP 400/690V 750 rpm Flange B5 cast iron case

SSY160M28B561
€704.35 (€582.11 tax excl.)
Three-phase electric motor 5.5kW (7.5HP) 400/690V 750 rpm (8 Poles) Flange B5, cast housing. Manufactured under European IEC regulations. Voltage: 400/690Vac 50/60Hz. number of poles: 8. Revs: 750 rpm. Flange: B5. Shaft diameter: 42mm. Flange diameter: 350mm. Power: 5.5Kw - 7.5Hp. Size: 160. Energy efficiency: IE1. Representative image for...
Three-phase motor 7.5Kw... Three-phase motor 7.5Kw... 2
Three-phase electric motors 750 rpm flange B5 cast iron case

Three-phase motor 7.5Kw 10HP 230/400V 750 rpm Flange B5 cast iron case

SSY160L8B541
€815.62 (€674.07 tax excl.)
Three-phase electric motor 7.5kW (10HP) 230/400V 750 rpm (8 Pole) Flange B5, cast housing. Manufactured under European IEC regulations. Voltage: 230/400Vac 50/60Hz. number of poles: 8. Revs: 750 rpm. Flange: B5. Shaft diameter: 48mm. Flange diameter: 350mm. Power: 7.5Kw - 10Hp. Size: 160. Energy efficiency: IE1. Representative image for...
Three-phase motor 7.5Kw... Three-phase motor 7.5Kw... 2
Three-phase electric motors 750 rpm flange B5 cast iron case

Three-phase motor 7.5Kw 10HP 400/690V 750 rpm Flange B5 cast iron case

SSY160L8B561
€815.62 (€674.07 tax excl.)
Three-phase electric motor 7.5kW (10HP) 400/690V 750 rpm (8 Poles) Flange B5, cast housing. Manufactured under European IEC regulations. Voltage: 400/690Vac 50/60Hz. number of poles: 8. Revs: 750 rpm. Flange: B5. Shaft diameter: 48mm. Flange diameter: 350mm. Power: 7.5Kw - 10Hp. Size: 160. Energy efficiency: IE1. Representative image for...
Three-phase motor 11Kw 15HP... Three-phase motor 11Kw 15HP... 2
Three-phase electric motors 750 rpm flange B5 cast iron case

Three-phase motor 11Kw 15HP 400/690V 750 rpm Flange B5 cast iron case

SSY180L8B561
€1,208.96 (€999.14 tax excl.)
Three-phase electric motor 11kW (15HP) 400/690V 750 rpm (8 Pole) Flange B5, cast housing. Manufactured under European IEC regulations. Voltage: 400/690Vac 50/60Hz. number of poles: 8. Revs: 750 rpm. Flange: B5. Shaft diameter: 48mm. Flange diameter: 350mm. Power: 11Kw - 15Hp. Size: 180. Energy efficiency: IE1. Representative image for...
Three-phase motor 15Kw 20HP... Three-phase motor 15Kw 20HP... 2
Three-phase electric motors 750 rpm flange B5 cast iron case

Three-phase motor 15Kw 20HP 400/690V 750 rpm Flange B5 cast iron case

SSY200L8B561
€1,478.10 (€1,221.57 tax excl.)
Three-phase electric motor 15kW (20hp) 400/690V 750 rpm (8 Poles) Flange B5, cast iron case. Manufactured under European IEC regulations. Voltage: 400/690Vac 50/60Hz. number of poles: 8. Revs: 750 rpm. Flange: B5. Shaft diameter: 55mm. flange diameter: Ø400mm. Power: 15Kw - 20Hp. Size: 200. Energy efficiency: IE1. Representative image for...
Three-phase motor 18.5Kw... Three-phase motor 18.5Kw... 2
Three-phase electric motors 750 rpm flange B5 cast iron case

Three-phase motor 18.5Kw 25HP 400/690V 750 rpm Flange B5 cast iron case

SSY225S8B561
€1,807.70 (€1,493.97 tax excl.)
Three-phase electric motor 18,5kW (25hp) 400/690V 750 rpm (8 Poles) Flange B5, cast iron housing. Manufactured under European IEC regulations. Voltage: 400/690Vac 50/60Hz. number of poles: 8. Revs: 750 rpm. Flange: B5. Shaft diameter: 60mm. flange diameter: Ø450mm. Power: 18.5Kw - 25hp. Size: 225. Energy efficiency: IE1. Representative...
Three-phase motor 22Kw 30HP... Three-phase motor 22Kw 30HP... 2
Three-phase electric motors 750 rpm flange B5 cast iron case

Three-phase motor 22Kw 30HP 400/690V 750 rpm Flange B5 cast iron case

SSY225M8B561
€1,940.80 (€1,603.97 tax excl.)
Three-phase electric motor 22kW (30HP) 400/690V 750 rpm (8 Poles) Flange B5, cast iron housing. Manufactured under European IEC regulations. Voltage: 400/690Vac 50/60Hz. number of poles: 8. Revs: 750 rpm. Flange: B5. Shaft diameter: 60mm. flange diameter: Ø450mm. Power: 22Kw - 30HP. Size: 225. Energy efficiency: IE1. Representative image...
Three-phase motor 30Kw 40HP... Three-phase motor 30Kw 40HP... 2
Three-phase electric motors 750 rpm flange B5 cast iron case

Three-phase motor 30Kw 40HP 400/690V 750 rpm Flange B5 cast iron case

SSY250M8B561
€2,391.02 (€1,976.05 tax excl.)
Three-phase electric motor 30kW (40hp) 400/690V 750 rpm (8 Poles) Flange B5, cast iron housing. Manufactured under European IEC regulations. Voltage: 400/690Vac 50/60Hz. number of poles: 8. Revs: 750 rpm. Flange: B5. Shaft diameter: 65mm. flange diameter: Ø550mm. Power: 30Kw - 40HP. Size: 250. Energy efficiency: IE1. Representative image for...
Three-phase motor 37Kw 50HP... Three-phase motor 37Kw 50HP... 2
Three-phase electric motors 750 rpm flange B5 cast iron case

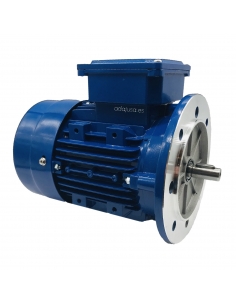

Three-phase motor 37Kw 50HP 400/690V 750 rpm Flange B5 cast iron case

SSY280S8B561
€3,008.53 (€2,486.39 tax excl.)
Three-phase electric motor 37kW (50hp) 400/690V 750 rpm (8 Poles) Flange B5, cast iron housing. Manufactured under European IEC regulations. Voltage: 400/690Vac 50/60Hz. number of poles: 8. Revs: 750 rpm. Flange: B5. Shaft diameter: 75mm. flange diameter: Ø550mm. Power: 37Kw - 50HP. Size: 280. Energy efficiency: IE1. Representative image...
Showing 1-14 of 14 item(s)
