Blue luminous selector 2 full metal positions 1 open contact NA
Blue luminous selector 2 full metal positions 1 open contact NA

Blue luminous selector 2 positions full metal contact 1NO+1NC

€6.75 Tax included

€5.58 tax excl.

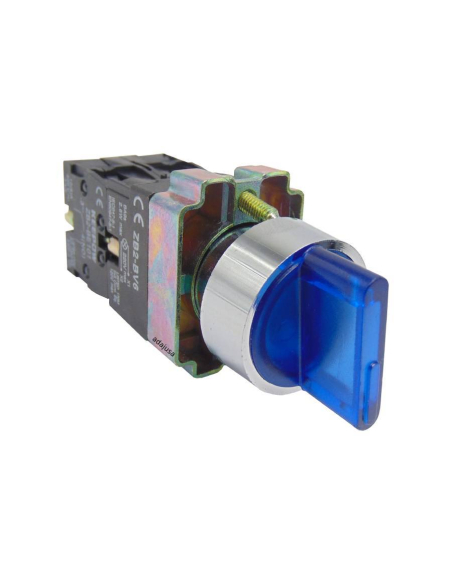

Luminous short handle selector, metal, 2 maintained positions, 1 open contact (NO), blue color.

The supply includes the complete selector with one open contact. Does not include bulb.

Reference: NYGBK2665K

Electrical diagram of selector 2 positions NO_NC

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Blue luminous selector, short lever, metal, 2 held positions, open contact (NO), possibility of adding additional contacts. Drill diameter 22mm.

The supply includes the complete selector with an open contact and does not include a bulb.

characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: NYGBK2665K
  • Color blue
  • Number of positions: 2 maintained
  • Contact : 1 NO + 1NC
  • Material: metal
  • Ith intensity: 10(6) A
  • Intensity Ie (AC1, 230): 6A
  • Intensity Ie (AC15, 230V): 3A
  • Intensity Ie (DC13, 250V): 0.27A
  • EU voltage: 660V
  • Um voltage: 400V
  • Contact resistance: 50 mOhm
  • Protection grade: IP42
  • Maximum bulb voltage: 230 V
  • Maximum bulb power: 2.6W
  • Bulb socket type: Ba9s
  • Regulations: CE, EN 60947-1, EN 60947-5-1
Illuminated selector dimensions
Material for professional use, install in compliance with the regulations in force at the installation site.
