Green luminous selector 2 full metal positions 1 open contact NA
Green luminous selector 2 full metal positions 1 open contact NA

Green illuminated selector 3 positions full metal 2 contacts 1NO+1NC

€6.68 Tax included

€5.52 tax excl.

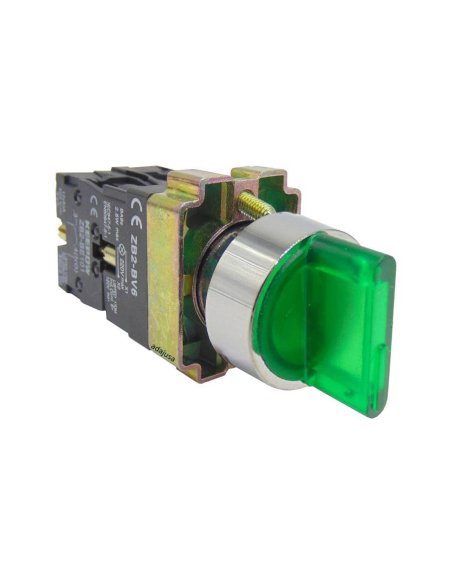

Luminous short handle selector, metallic, with 3 maintained positions, 1 open contact (NO) and 1 closed contact (NC), green color.

The supply includes the complete selector with one open and one closed contact. Does not include bulb.

Reference : NYGBK3365Z

Electrical diagram of selector 2 positions NO_NC

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Green illuminated selector, short handle, metal, 3 maintained positions, 1 open contact (NO) and 1 closed contact (NC), possibility of adding additional contacts. Drill diameter 22mm.

The supply includes the complete selector with one open contact and another closed contact, it does not include a bulb.

characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference : NYGBK3365Z
  • Green color
  • Number of positions: 3 maintained
  • Contact : 1 NO + 1 NC
  • Material: metal
  • Ith intensity: 10(6) A
  • Ie intensity: 6A
  • Ie intensity: 3A
  • Ie intensity: 0.27A
  • EU voltage: 660V
  • Um voltage: 400V
  • Contact resistance: 50 mOhm
  • Protection grade: IP42
  • Maximum bulb voltage: 230 V
  • Maximum bulb power: 2.6W
  • Bulb socket type: Ba9s
  • Regulations: CE, EN 60947-1, EN 60947-5-1
Illuminated selector dimensions
Material for professional use, install in compliance with the regulations in force at the installation site.
