Complete 3-position metal selector with 2 open...
Complete 3-position metal selector with 2 open contacts (NO)

Complete 3-position metal selector with 2 open contacts (NO)

€4.17 Tax included

€3.45 tax excl.

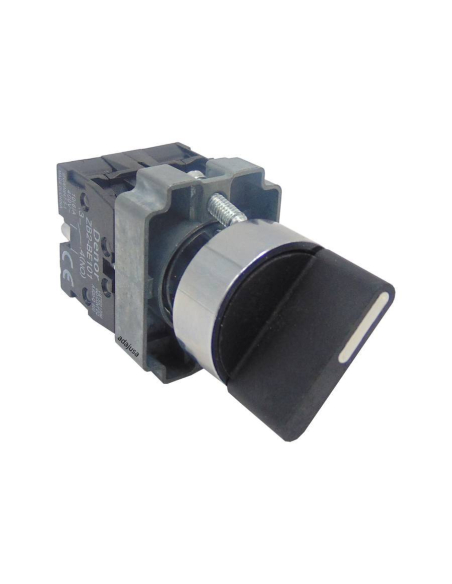

Metallic electric selector with short lever, 3 maintained positions, 2 open contacts (NO).

The supply includes the complete selector with two open contacts.

Reference: NYBD33KST

3 position selector scheme

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Short lever metal selector , 3 maintained positions and with 2 open contacts (NO), possibility of adding additional contacts. drill diameter 22.5 mm.

The supply includes the complete selector with two open contacts.

Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: NYBD33KST
  • Color: black
  • Number of positions: 3 maintained
  • Contact1: 2 NO open contacts
  • Material: metal
  • Ith Intensity: 10(6)A
  • Intensity Ie (AC1, 230V): 6A
  • Intensity Ie (AC15, 230V): 3A
  • Intensity Ie (DC15, 230V): 0.27A
  • Ui voltage: 660V
  • Contact resistance: 25 mOhm
  • Protection grade: IP42
  • Regulations: CE, EN 60947-1, EN 60947-5-1

adajusa metal selector

Material for professional use, install in compliance with the regulations in force at the installation site.
