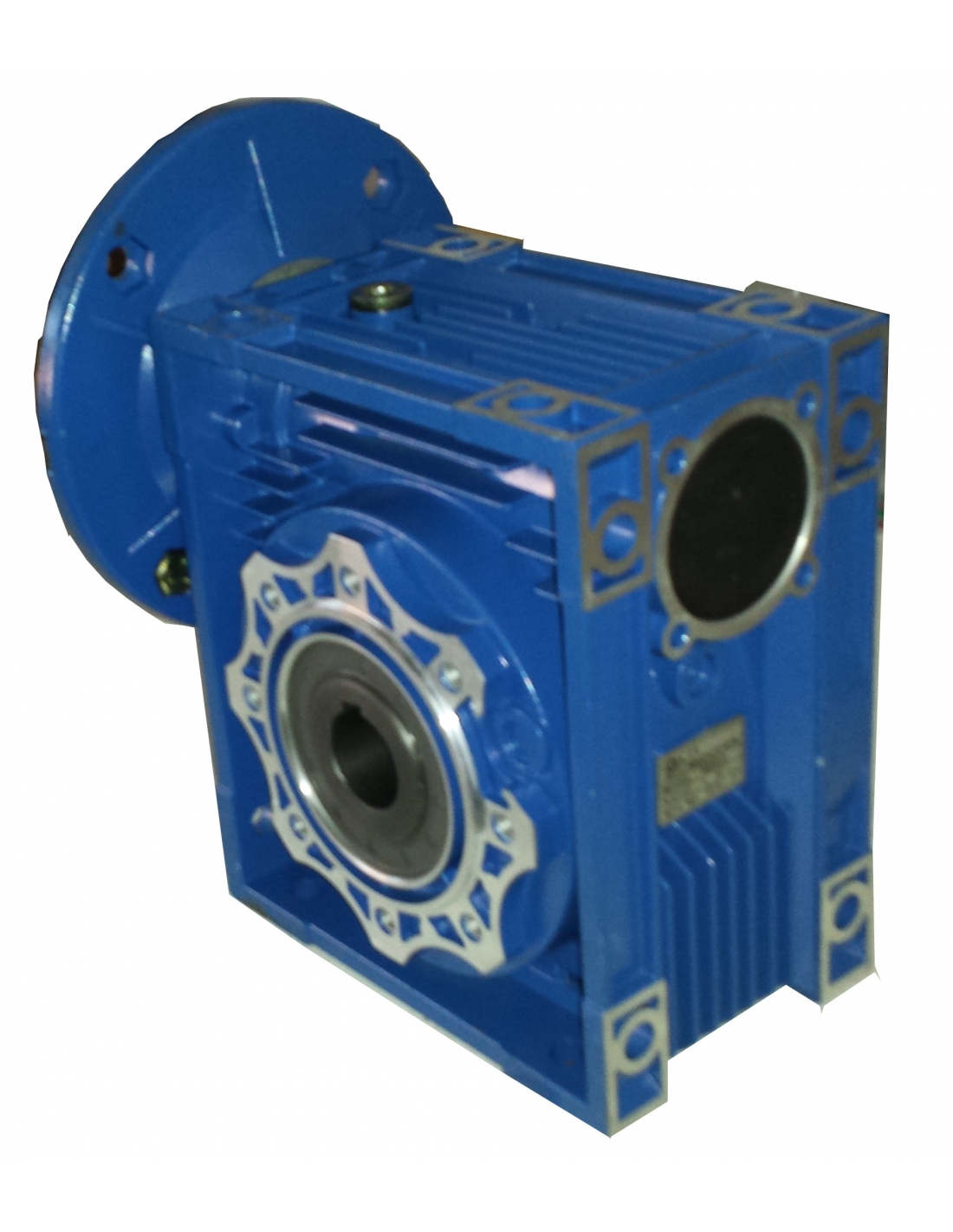

Reducer worm wheel size 50 Flange PAM 120/19 - Motor housing 80 B14

€107.99 Tax included

87.8 tax excl.

YDSEG5080B1430

With hollow output shaft Ø25mm, and flange input shaft PAM 120/19 (Ø Ext 200mm and Ø Input shaft 19mm) type B14, suitable for motors with size 80 housing.

Reduction ratios: 5-7,5-10-15-20-20-25-30-40-50

Reducer valid for 1,000 or 1,500 motors rpm

The power ratings of the usual motors at 1,500 rpm are:

  • 0.75hp Max. mains i=30
  • 1HP Max. net. i=20


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Reduction ratio
  • 7.5
  • 10
  • 15
  • 20
  • 25
  • 30
  • 40
  • 50
  • 5

No queries yet, leave the first!
Privacy
Shipments
Returns


Reducer size 50 worm gearbox, compact design and high performance, with hollow output shaft Ø25mm and input shaft Ø19mm.

This size of gearbox supports motors with flange B14 size 80, this size of flange has an O.D. of 120mm and the gearbox has an input shaft diameter of 19mm, PAM 120/19.

Dimensiones brida entrada reductor sinfin corona

  • P: 120mm
  • M: 100mm
  • N: 80mm
  • D: Ø19mm

The motor powers at 1500 rpm usually used for this type of gearboxes and with higher service factor fs≥1 are:

  • 0,75CV 1500rpm. Maximum reduction I= 30
  • 1hp 1500rpm. Maximum reduction I= 20

The reduction ratios (i) available are from 5 to 50, depending on the input revolutions we can obtain the following revolutions on the output shaft shown in the following table.

Tabla de revoluciones de salida reductores

Dimensiones reductor sinfin corona tamaño 50

You can download the complete dimensions of the gearbox by clicking on the "ATTACHMENTS" tab.

Material for professional use, install in compliance with the regulations in force at the place of installation.
