Worm Reducer Size 130 PAM 300/38 flange - Motor casing 132 B5

€492.22 Tax included

€406.79 tax excl.

Free shipping!

With Ø45mm hollow output shaft, and PAM 300/38 input flange (Ext Ø 300mm and input shaft Ø 38mm) type B5, suitable for motors with frame size 132.

Reduction ratios: 7.5-10-15-20-25-30-40.

The powers of the usual engines at 1500 rpm are:

  • 7.5CV Max. grid. i=30
  • 10CV Max. grid. i=20




Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Reduction ratio
  • 7.5
  • 10
  • 15
  • 20
  • 25
  • 30
  • 40

No queries yet, leave the first!

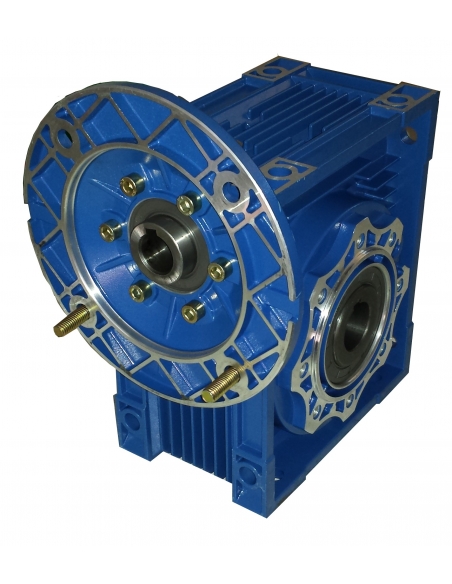

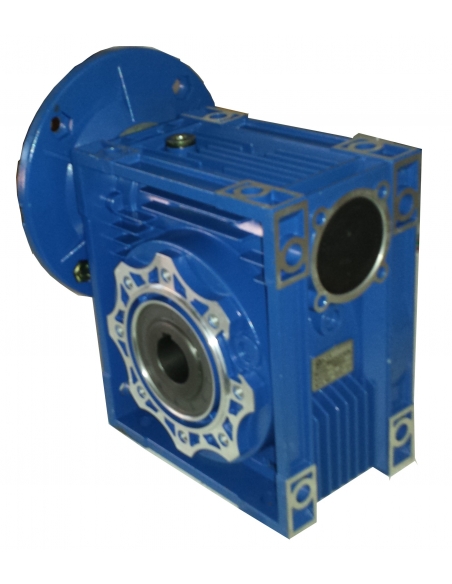

Size 130 crown worm Reducer , compact in execution and high performance, with Ø45mm hollow output shaft and Ø38mm input shaft.

This size of reducer accepts motors with B5 size 132 flange , this flange size has an External Ø of 300mm and the reducer has an input shaft diameter of 38mm, PAM 300/38.

Inlet flange dimensions of worm gear reducer

  • Q: 300mm
  • M: 265mm
  • N: 230mm
  • D: Ø38mm

The powers of the motors at 1500 rpm usually used for this type of reducers and with a higher service factor fs≥1 are:

  • 7.5hp 1500rpm. Maximum reduction I= 30
  • 10CV 1500rpm. Maximum reduction I= 20

The reduction ratios (i) available are from 7.5 to 40, depending on the input revolutions we can obtain the following revolutions on the output shaft shown in the following table.

Reducer output revolutions table


T130DIMENSIONS


For more information you can download the technical sheet by clicking on the "Attachments" tab


Material for professional use, install in compliance with the regulations in force at the installation site
