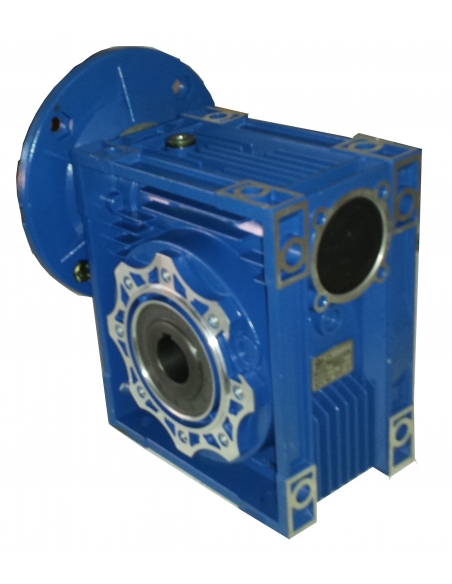

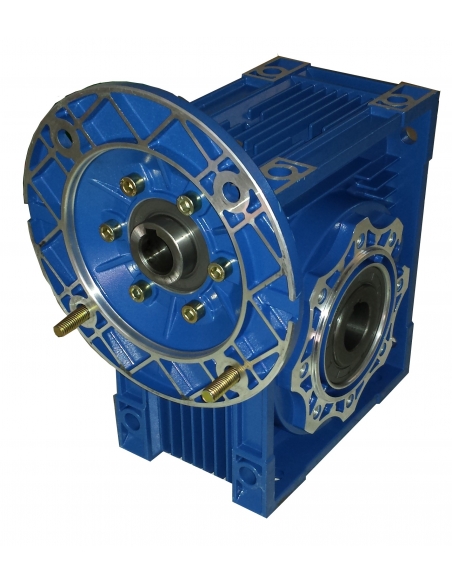

Worm Reducer Size 130 PAM 200/24 flange - Motor casing 90 B5

€505.30 Tax included

€410.81 tax excl.

With Ø45mm hollow output shaft, and PAM 200/24 input flange (Ext Ø 200mm and input shaft Ø 24mm) type B5, suitable for motors with frame size 90.

Reduction ratios: 80-100.

Typical engine powers at 1500 rpm are:

  • 1.5CV Red. i=80-100
  • 2CV Red. i=80-100
  • 3CV Red. i=80-100





Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Reduction ratio
  • 80

No queries yet, leave the first!
Privacy
Shipments
Returns


Size 130 crown worm Reducer , compact execution and high performance, with Ø45mm hollow output shaft and Ø24mm input shaft.

This size of reducer accepts motors with a B5 size 90 flange , this flange size has an External Ø of 200mm and the reducer has an input shaft diameter of 24mm.

Inlet flange dimensions of worm gear reducer

  • Q: 200mm
  • M: 165mm
  • N: 130mm
  • D: Ø24mm

The powers of the motors at 1500 rpm usually used for this type of reducers and with a higher service factor fs≥1 are:

  • 1.5hp 1500rpm. Reduction I= 80 to 100
  • 2 HP 1500rpm. Reduction I= 80 to 100
  • 3 HP 1500rpm. Reduction I= 80 to 100

The reduction ratios (i) available are from 7.5 to 100, depending on the input revolutions we can obtain the following revolutions on the output shaft shown in the following table.

Reducer output revolutions table

For more information you can download the technical sheet by clicking on the "Attachments" tab

Material for professional use, install in compliance with the regulations in force at the installation site
