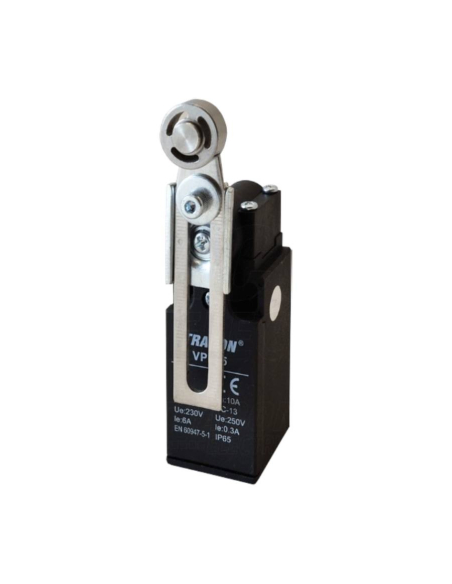

End of stroke adjustable vertical lever roller steel Series VP

€8.50 Tax included

6.91 tax excl.

VP145

Electric limit switch, 1NO+1NC contacts, adjustable vertical lever drive with Ø18mm steel pulley. Made of highly impact resistant thermoplastic resin.


Part number: VP145



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Limit switch electric, mechanical position detector, made of thermoplastic resin very resistant to shocks. The limit switchincorporates a chamber with 2 electrical contacts, one open NO and the other closed NC. The limit switchis operated by means of a metallic steel roller, adjustable in height, which can be operated in both directions. Sheave diameter 18mm.



Operating travel (mm)


Technical characteristics:

  • Manufacturer/Supplier: TRACON
  • Manufacturer's reference: VP145
  • Actuator type: metal pulley push button Ø18
  • Contacts: 1NO + 1NC
  • Rated voltage: 230Vac
  • Rated current (In): 5A AC1 230V / 2A AC15 230V / 0,3A DC13 250V
  • Rated thermal intensity (Ith): 10A
  • Rated voltage of isolation: 500Vac
  • Mechanical life: 5x106 cycles
  • Material: Thermoplastic, metal actuator head
  • Inlet thread: M20
  • Connection cable: 0.75 - 1.5mm2
  • Ambient operating temperature: -25oC to +55oC
  • Degree of protection: IP65
  • Standards: EN60947-5-1, EN60947-1



Dimensions:








Material for professional use, install in compliance with the regulations in force at the place of installation.
This component should not be used safety or hazardous applications.

Questions

Question
me pueden decir el plazo de entrega seria en Toledo y me harían falta dos unidades- Gracias
Answer

Buenas tardes,

Si el producto aparece en color verde, indica que esta en stock, el plazo de entrega, es el que aparece publicitado en nuestra pagina web 24-48h es enviado.

Los gastos de envio son los que se indican en nuestra pagina web, para 2 unidades sera de 8€+IVA.

Puede usted acceder a las condiciones de venta que estan en nuestra pagina, para ver la totalidad de condiciones de envío.

Todo el tramite ha de hacerse online.

Saludos

Alejandro Barba Rolando on 06/04/2018 14:40:48

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Pressure switch 1/8 no with protective head - ADAJUSA
  • Pack
Vacuum switches, pressure switches and flowmeters

Pressure switch 1/8 contact closed with protection head - Metal Work

Metal Work
PK-PRESNC
€17.71 (€14.40 tax excl.)
1/8 pneumaticpressure switch with closed contact, adjustable pressure range between 1 and 10 bar. With protection cover providing IP54 degree of protection. When the set pressure is reached, the contact switches to open position. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
End of race lever with FCT series rod with cable - Giovenzana
limit switch - position detectors - electric pedals - sensors

Limit switch rod lever FCT Series with cable - Giovenzana

Giovenzana Internacional B.V.
GIFCT2x10xxxD
€42.88 (€34.86 tax excl.)
Limit switch electric lever actuator with adjustable metal rod, FCT series, push button operation, made of thermoplastic material, positive opening contacts. 2 contacts available (select from the side menu), with 2 types of actuation, slow or snap action. Representative image for illustrative purposes, the item supplied will correspond to the...

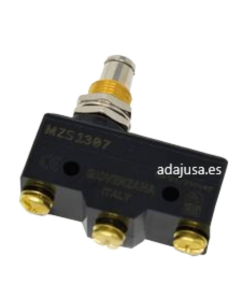

Pushbutton microswitch MZS1307 adajusa.es
limit switch - position detectors - electric pedals - sensors

Pushbutton microswitch MZS1307 threaded head piston - Giovenzana

Giovenzana Internacional B.V.
GI-MFI1307
€8.57 (€6.97 tax excl.)
Threaded head piston actuated microswitch, 1 changeover contact (NO/NC). High load capacity and sudden rupture. Manufactured under strict European regulations. Equipped with a type of shot that ensure a high degree of precision. Fast and reliable standalone switching suitable for use in industrial and general purpose applications. Reference: MZS1307
Electric foot pedal bistable Aignep 06V0000012 | Interlocking, IP65 | Adajusa Electric foot pedal bistable Aignep 06V0000012 | Interlocking, IP65 | Adajusa 2
limit switch - position detectors - electric pedals - sensors

Electric foot pedal with interlocking and without protection cover - Aignep

Aignep
06V0000012
€42.05 (€34.19 tax excl.)
Electric pedal for general and industrial use, with mechanical interlocking (bistable): when pressed, the contact changes state and remains activated until pressed again. Made of resistant thermoplastic without protection cover, NO/NC switched electrical contact. Ideal for hands-free operation of machinery. High visibility yellow color. Color: yellow...

Customers who bought this product also bought:

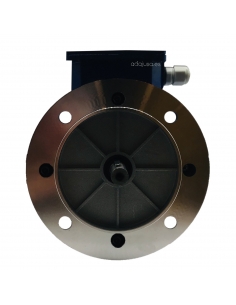

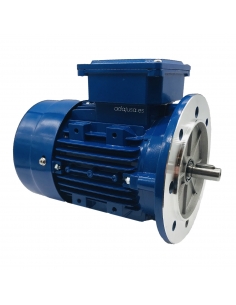

Three-phase motor 1.1Kw 1.5CV 230/400V 1500 rpm IE1 Flange B5 reduced housing Three-phase motor 1.1Kw 1.5CV 230/400V 1500 rpm IE1 Flange B5 reduced housing 2
