Cross roller limit switch (microswitch microswitch) Series LS15

€6.52 Tax included

5.3 tax excl.

LS15GQ21-B

Limit switch operated by means of crossed metal roller (microswitch microswitch), 1 changeover contact (NO/NC). High load capacity.


Part number: LS15GQ21-B


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Actuating limit switch by means of crossed metal roller, 1 change-over contact (NO/NC). High load capacity. Lateral fixing by means of screws, electrical connection by means of threaded nuts. Possibility of adding protection cover (not included).



Operating travel (mm):




Technical characteristics

  • Manufacturer/Supplier: TRACON
  • Part number: LS15GQ21-B
  • Actuator type: High piston with crossed metallic pulley
  • Rated thermal current: 15A
  • Rated current: 5A AC1 230V / 2A AC15 230V / 0,3A DC13 250V
  • Rated voltage of isolation: 500V
  • Electrical contact: 1 Switched (NO/NC)
  • Material: Plastic
  • Connection cable: 0.5 - 1.5mm2
  • Mechanical life: 1x106 cycles
  • Ambient operating temperature: -25oC to +55oC
  • Degree of protection: IP00
  • Standard: EN 60947-1, EN 60947-5-1



Dimensions:






Material for professional use, must be installed in compliance with the regulations in force at the place of installation

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Electric pedal with protection cover 06v0000007 PCI-00 Aignep: ADAJUSA : price
limit switch - position detectors - electric pedals - sensors

Electric pedal with protection cover - Aignep

Aignep
06V0000007
€37.20 (€30.24 tax excl.)
Electric pedal monostable, for general and industrial use, with protection cover and NO/NC electrical contact. Immediate action: it remains activated only while pressure is applied with the foot, returning to its initial position when released. Made of high resistance thermoplastic, ideal for machines requiring momentary control. Yellow color for maximum...

16 other products in the same category:

Pushbutton microswitch MZS1308 piston with threaded head roller - Giovenzana
limit switch - position detectors - electric pedals - sensors

Pushbutton microswitch MZS1308 piston with threaded head roller - Giovenzana

Giovenzana Internacional B.V.
GI-MFI1308
€9.84 (€8.00 tax excl.)
Piston-operated microswitch with roller, threaded head, 1 changeover contact (NO/NC). High load capacity and sudden rupture. Manufactured under strict European regulations. Equipped with a type of shot that ensure a high degree of precision. Fast and reliable standalone switching suitable for use in industrial and general purpose applications....
Giovenzana MFI Series MicroSwitch - adajusa
limit switch - position detectors - electric pedals - sensors

MFI series pushbutton microswitch

Giovenzana Internacional B.V.
GI-MFI
€2.92 (€2.37 tax excl.)
Micro pushbutton drive switch, without any speakers. 1 switched contact (NA/NC). High load capacity and sudden breakage. Manufactured under strict European regulations. Equipped with self-cleaning contacts and a type of fire that ensure a high degree of precision. Fast and reliable switching independent of the drive speed. Reference: MFI...
MFI.4 Giovenzana Series Micro Breaker - adajusa
limit switch - position detectors - electric pedals - sensors

MFI series long lever micro breaker.4

Giovenzana Internacional B.V.
GI-MFI.4
€3.03 (€2.46 tax excl.)
Micro long lever drive switch. 1 switched contact (NA/NC). High load capacity and sudden breakage. Manufactured under strict European regulations. Equipped with self-cleaning contacts and a type of fire that ensure a high degree of precision. Fast and reliable switching independent of the drive speed. Reference: MFI.4 Representative image for...
View

Customers who bought this product also bought:

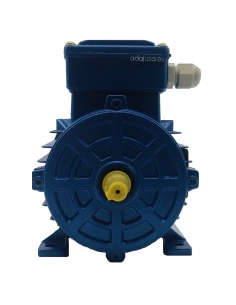

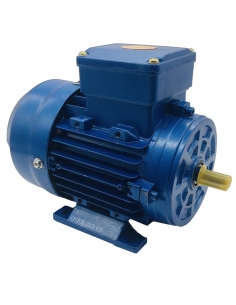

Three-phase motor 3Kw 4CV 230/400V 1500 rpm IE3 Flange B3 foot Three-phase motor 3Kw 4CV 230/400V 1500 rpm IE3 Flange B3 foot 2
