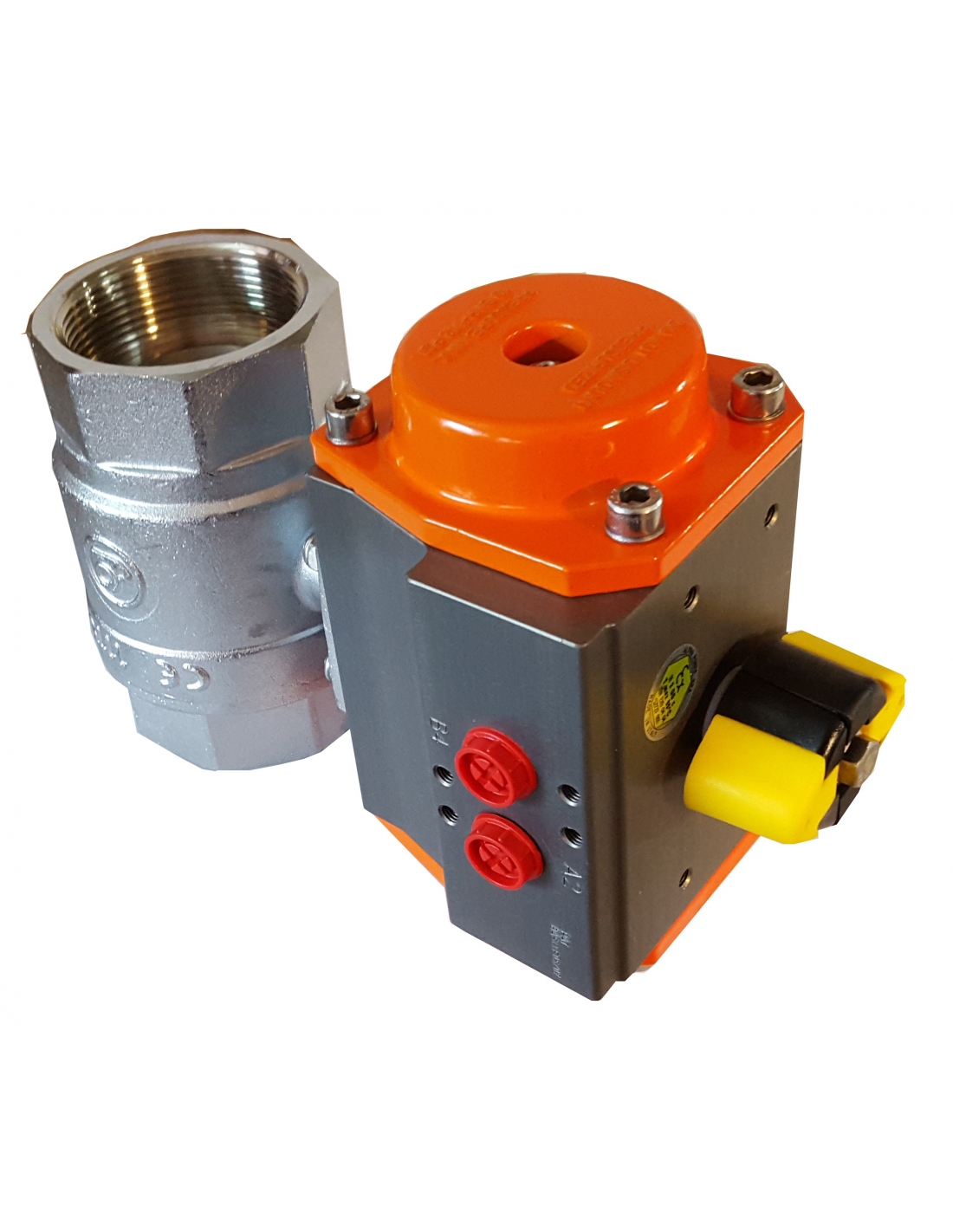

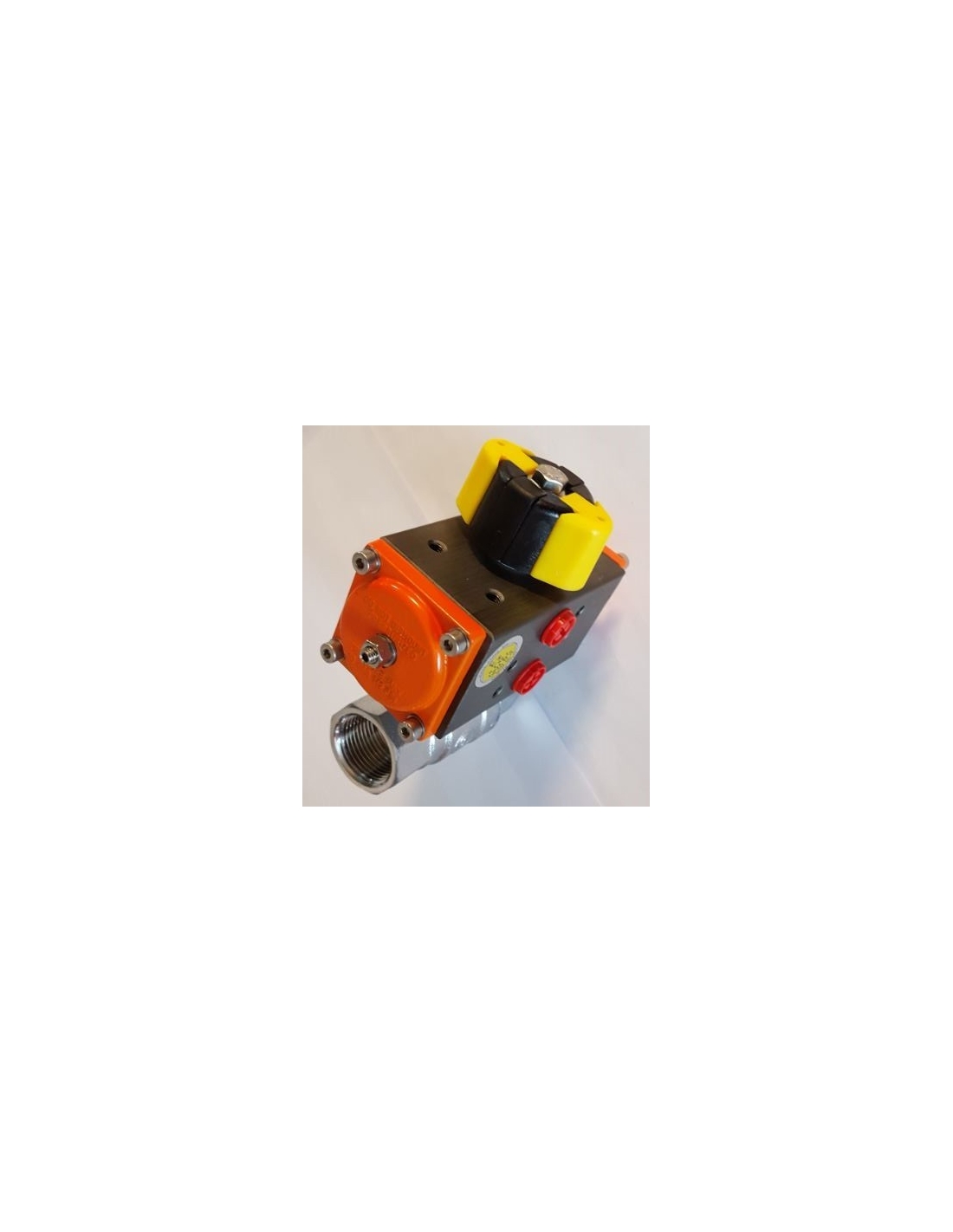

1/4 2/2-way valve with pneumatic rotary actuator

1 2/2-way valve with pneumatic rotary actuator

1 2/2-way valve with pneumatic rotary actuator - Metal Work

Name: 1 2/2-way valve with pneumatic rotary actuator - Metal Work
Brand: Metal Work
SKU: VB22LC025050D
Price: 202.1628 EUR
Availability: PreOrder

€202.16 Tax included

€164.36 tax excl.

1" dial valve, 2-way 2-position, 2/2, with double-acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass.

The valve has a manual activation control.

Valves with ATEX certification.

Reference: VB22LC025050D / W0900300105

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

1" dial valve, 2-way 2-position, 2/2, with double-acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to be able to act the valve manually.

Valves with ATEX certification.

Specifications:

Assembly manufacturer: Metal Work.
Manufacturer reference: VB22LC025050D / W0900300105
Actuator type: Ø32 double pneumatic effect (AP32).
Valve type: 2 ways 2 positions (2/2).
Thread type: G 1" female.
Valve body: nickel-plated OT58 brass.
Dial: Chrome OT58 brass.
Joints: PTFE.
Nominal pressure PN: 16 bar
Standard: ISO 5211 (direct mounting to the actuator)
Temperature: -20ºC to +80ºC

Tabla de dimensiones actuadores rotativos 2 vias

Valvulas rotatorias con actuador neumático 2 vias dimensiones

Material for professional use, install in compliance with the regulations in force at the place of installation.

Valves with pneumatic actuator

catalog valves with actuator Metal Work

Download (688.05KB)
