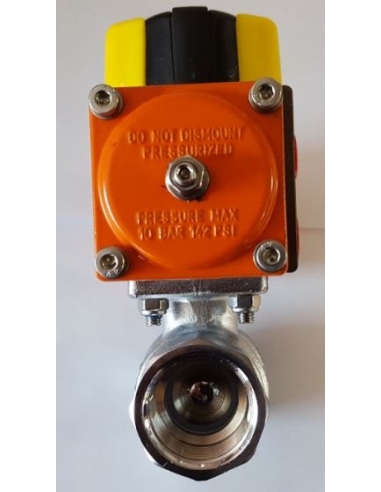

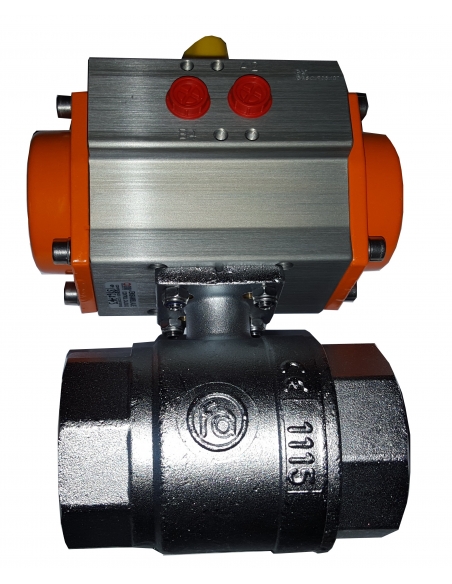

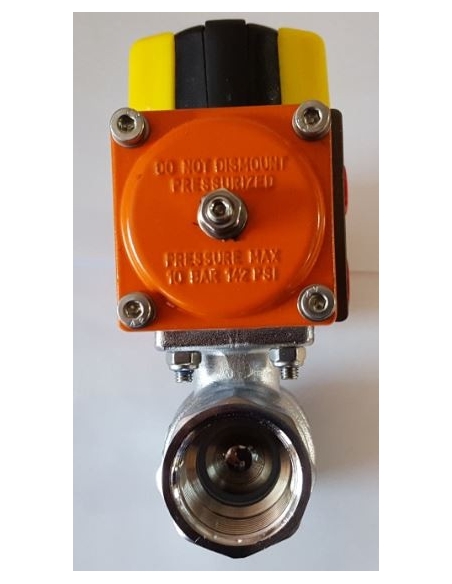

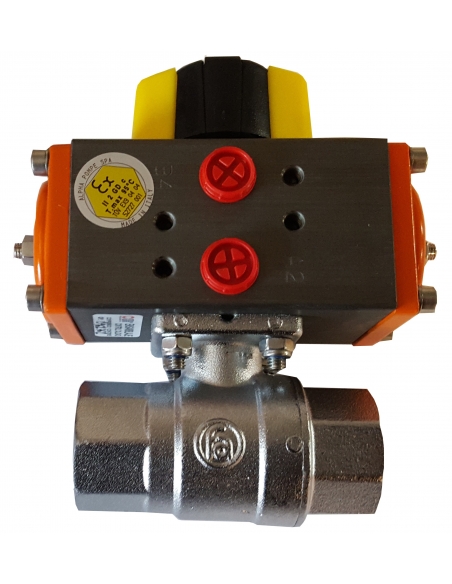

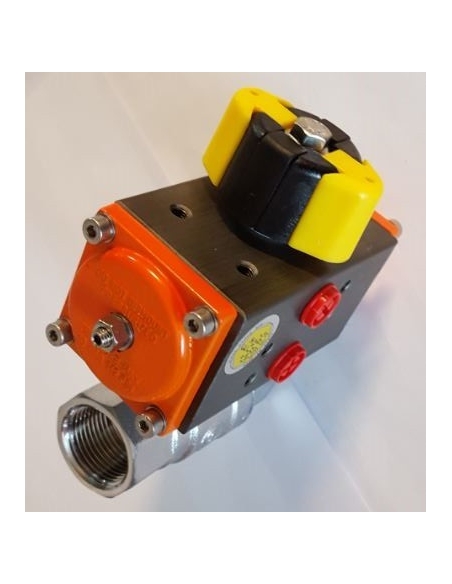

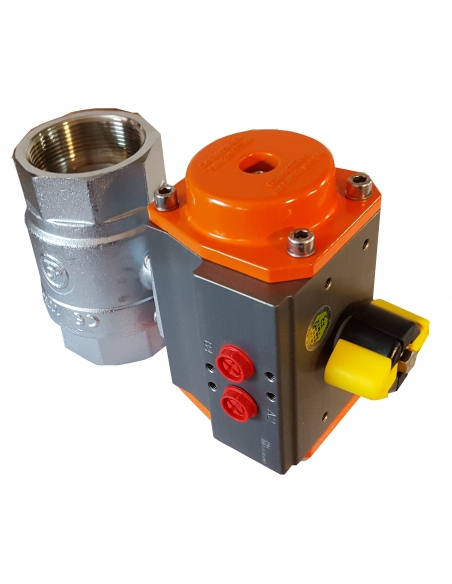

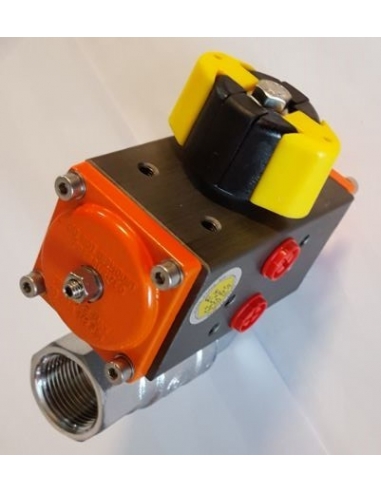

Valve 1 1/4 2/2 ways with pneumatic rotary actuator - Metal Work

€183.23 Tax included

148.97 tax excl.

W0900300106

1" 1/4 ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass.

The valve has a manual activation control.

Valves with ATEX certification.

Part number: W0900300106

Simbolo neumatico actuador con valvula doble efecto Pictograma ATEX

Logotipo metal work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

2 questions about the product


1" 1/4 ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to operate the valve manually.

Valves with ATEX certification.

Technical characteristics:

  • Manufacturer of the assembly: Metal Work.
  • Manufacturer's reference: W0900300106
  • Type of actuator: Ø50 double acting pneumatic (AP50).
  • Valve type: 2 way 2 positions (2/2).
  • Thread type: G 1" 1/4 female.
  • Valve body: brass OT58 nickel plated.
  • Ball: OT58 chrome-plated brass.
  • Seals: PTFE.
  • Nominal pressure PN: 16 bar
  • Standard: ISO 5211 (direct mounting to actuator)
  • Temperature: -20ºC to +80ºC

Tabla de dimensiones actuadores rotativos 2 vias

Valvulas rotatorias con actuador neumático 2 vias dimensiones

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Seria adecuada para accionamiento rápido 5 veces por minuto, Presión de aire necesaria para accionar Tiene retorno por muelle o es de doble efecto.
Answer

Buenas tardes,

No es problema la realización de 5 maniobras por minuto, con respecto a la presión de trabajo, no es recomendable bajar de 5 kg/cm2, mas que nada, porque bajara la velocidad de actuación de la valvula.

Tambien le aclaro que son de doble efecto, de hecho, para realizar tantas maniobras, no es recomendable simple efecto.

Saludos

Jose on 03/18/2018 08:18:26
Question
necesito 3 valvulas completas de 1.5 pulgadas y 2 de 1 pulgada para una maquina de microaglomerado el fluido que circula es emulsion asfaltica y estan colocadas en el exterior de la maquina ( fluido viscoso se pega ) IP65 UN SALUDO
Answer

Buenos días,

Le indico que estas electroválvulas no son adecuadas para la aplicación, y no disponemos de ningun otro modelo.

Saludos

JOSE MARIA CONDE on 01/29/2018 18:27:10
