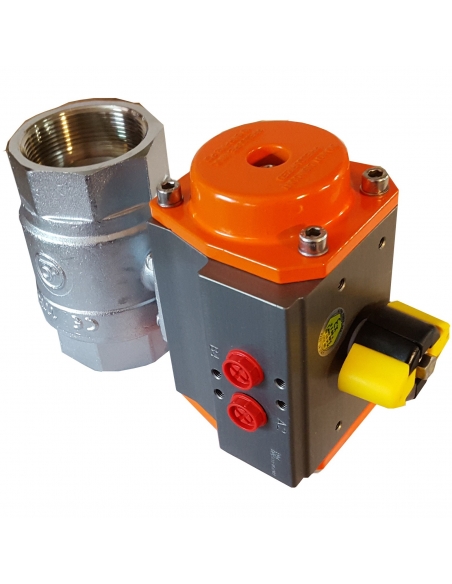

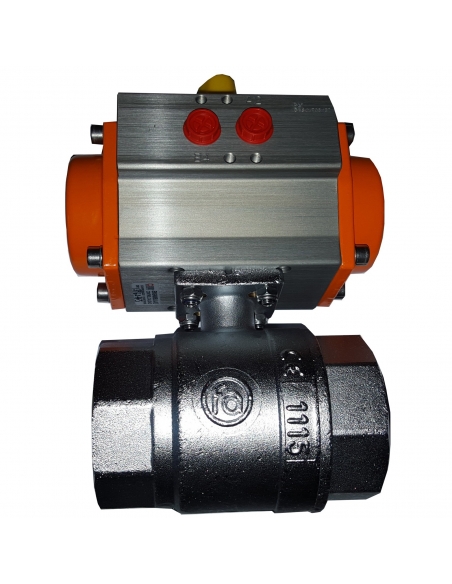

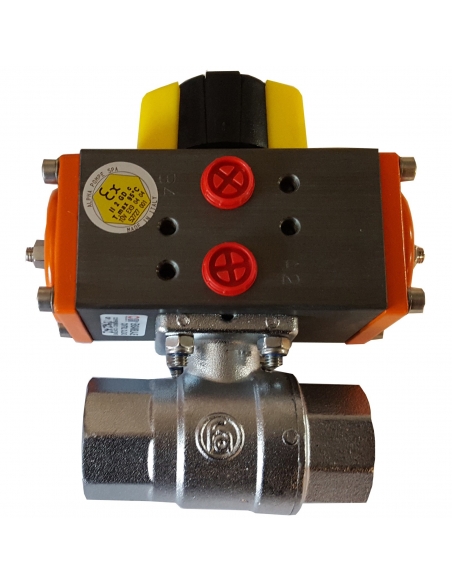

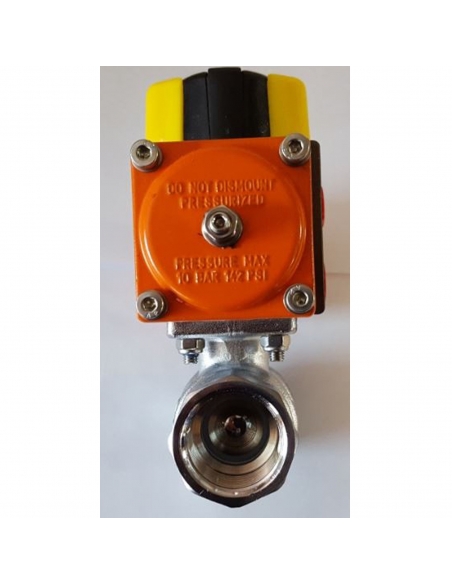

1/4 2/2-way valve with pneumatic rotary actuator

Valve 1/4 2/2-way with pneumatic rotary actuator - Metal Work

Name: Valve 1/4 2/2-way with pneumatic rotary actuator - Metal Work
Brand: Metal Work
SKU: W0900300101
Price: 127.49 EUR
Availability: BackOrder

€127.49 Tax included

103.65 tax excl.

W0900300101

1/4" ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass.

The valve has a manual activation control.

Valves with ATEX certification.

Part number: W0900300101

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

1/4" ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to operate the valve manually.

Valves with ATEX certification.

Technical characteristics:

Manufacturer of the assembly: Metal Work.
Manufacturer's reference: W0900300101
Type of actuator: Ø32 double acting pneumatic (AP32).
Valve type: 2 way 2 positions (2/2).
Thread type: G 1/4" female.
Valve body: brass OT58 nickel plated.
Ball: OT58 chrome-plated brass.
Seals: PTFE.
Nominal pressure PN: 16 bar
Standard: ISO 5211 (direct mounting to actuator)
Temperature: -20ºC to +80ºC

Tabla de dimensiones actuadores rotativos 2 vias

Valvulas rotatorias con actuador neumático 2 vias dimensiones

Material for professional use, install in compliance with the regulations in force at the place of installation.

Valves with pneumatic actuator

catalog valves with actuator Metal Work

Download (688.05KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

3/8 2/2-way valve with pneumatic rotary actuator - Metal Work

Metal Work

W0900300102

€127.49 (€103.65 tax excl.)

3/8" ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300102 Representative image for illustrative purposes,...

1/4 2/2-way valve with pneumatic rotary actuator 2

Valves with pneumatic actuators

1/2 2/2-way valve with pneumatic rotary actuator - Metal Work

Metal Work

W0900300103

€125.95 (€102.40 tax excl.)

1/2" ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300103 Representative image for illustrative purposes,...

Valves with pneumatic actuators

Valve 3/4 2/2 way with actuator pneumatic rotary - Metal Work

Metal Work

W0900300104

€172.13 (€139.94 tax excl.)

3/4" ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300104 Representative image for illustrative purposes,...

Valves with pneumatic actuators

1 2/2-way valve with pneumatic rotary actuator - Metal Work

Metal Work

W0900300105

€157.14 (€127.76 tax excl.)

1" ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300105 Representative image for illustrative purposes, the...

Valves with pneumatic actuators

Valve 1 1/4 2/2 ways with pneumatic rotary actuator - Metal Work

Metal Work

W0900300106

€183.23 (€148.97 tax excl.)

1" 1/4 ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300106 Representative image for illustrative purposes,...

16 other products in the same category:

Valves with pneumatic actuators

Valve 1/4 2/2 way stainless steel with actuator pneumatic rotary - Metal Work

Metal Work

W0900300001

€170.18 (€138.36 tax excl.)

Stainless steel 1/4" ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Stainless steel valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300001 Representative image for illustrative...

Valves with pneumatic actuators

Valve 1 1/2 2/2 ways with pneumatic rotary actuator - Metal Work

Metal Work

W0900300107

€217.30 (€176.67 tax excl.)

1" 1/2 ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300107 Representative image for illustrative purposes,...

Valves with pneumatic actuators

Rotary actuator diameter 63 - Metal Work

Metal Work

AD063GQ014DA

€154.24 (€125.40 tax excl.)

Double-acting Ø63 pneumatic rotary actuator, for actuating ball, butterfly, or any other type of valve, with a 90º turning angle. The actuator can be easily coupled to valves complying with ISO 5211 - DIN3337 regulations. NAMUR standard valves and solenoid valves can be fixed to the actuator for its operation. Reference: W79AD063GQ014DA Representative...

Angled seat valve 1 1/4 2/2 NC actuator in INOX diameter 63| Aignep | Adajusa

Valves with pneumatic actuators

Angled seat valve 1 1/4 NC actuator in INOX diameter 63 - Aignep

Aignep

X1YXF10630

€257.65 (€209.47 tax excl.)

Normally closed (NC) simple acting inclined seat valve with 1" 1/4 thread. PTFE gaskets which allow it to work in a wide range of fluid temperatures (-10ºC to +180ºC). The actuator body It is made of AISI 304 stainless steel and is pneumatically actuated. The valve can be installed in any mounting position, the body manufactured in the shape of a "Y"...

Valves with pneumatic actuators

Valve 1 2/2 way stainless steel with actuator pneumatic rotary - Metal Work

Metal Work

W0900300005

€219.96 (€178.83 tax excl.)

Stainless steel 1" ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Stainless steel valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300005 Representative image for illustrative...

Angled seat valve 2 2/2 NC | Aignep | Adajusa

Valves with pneumatic actuators

Angled seat valve 2 NC actuator in technopolymer - Aignep

Aignep

X2YXH10800

€299.39 (€243.41 tax excl.)

Normally closed (NC) simple acting inclined seat valve with 2" thread. PTFE gaskets which allow it to work in a wide range of temperatures in the fluid (-10ºC to +180ºC). The actuator body is manufactured in technopolymer and is pneumatically actuated. The valve can be installed in any mounting position, the body manufactured in the shape of a "Y"...

Angled seat valve 1 2/2 NC | Aignep | Adajusa

Valves with pneumatic actuators

Angled seat valve 1 NC actuator in technopolymer - Aignep

Aignep

X2Y0910630

€149.70 (€121.71 tax excl.)

Normally closed (NC) simple acting inclined seat valve with 1" thread. PTFE gaskets which allow it to work in a wide range of temperatures in the fluid (-10ºC to +180ºC). The actuator body is manufactured in technopolymer and is pneumatically actuated. The valve can be installed in any mounting position, the body manufactured in the shape of a "Y"...

Seat valve 1/2 2/2 NC | Aignep | Adajusa

Valves with pneumatic actuators

Compact valve for fluids 1/2 NC with pneumatic actuator Fluxa series - Aignep

Aignep

51012

€74.06 (€60.21 tax excl.)

Compact seat valve, with simple acting pneumatic actuator , diameter 35mm, and normally closed (NC), with 1/2 thread. Together at FKM. The actuator body is made of anodized aluminum alloy and is pneumatically actuated. The valve is made of brass. Reference: 51012 Representative image for illustrative purposes, the item supplied will correspond to the...

Valves with pneumatic actuators

Rotary actuator 75 - Metal Work

Metal Work

0D075GQ014DA

€199.83 (€162.46 tax excl.)

Pneumatic rotary actuator Ø75 of double effect, to act ball valves, butterfly, or any other type, with angle of rotation of 90º. The actuator allows easy coupling to valves in compliance with ISO 5211 - DIN3337. On the actuator can be fixed valves and solenoid valves STANDARD NAMUR for its action. Reference: W790D075GQ014DA ...

1/4 3/2-way "L" valve with pneumatic rotary actuator

1/4 3/2-way "L" valve with pneumatic rotary actuator 2

Valves with pneumatic actuators

T-stainless steel valve 1/4 3/2-way with pneumatic rotary actuator

Metal Work

W0900300112

€239.51 (€194.72 tax excl.)

1/4" stainless steel ball valve, 3 way 2 positions, 3/2, with "T" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve made of stainless steel. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300300112 Representative...

Angled seat valve 1 1/2 2/2 NC | Aignep | Adajusa

Valves with pneumatic actuators

Angled seat valve 1 1/2 NC actuator in technopolymer - Aignep

Aignep

X2YXG10800

€258.57 (€210.22 tax excl.)

Normally closed (NC) simple acting inclined seat valve with 1 1/2 thread. PTFE gaskets which allow it to work in a wide range of fluid temperatures (-10ºC to +180ºC). The actuator body is made of technopolymer and is pneumatically actuated. The valve can be installed in any mounting position, the "Y" shaped body increases flow by 30% and increases the...

Valves with pneumatic actuators

Stainless steel valve 3/8 3/2-way L with pneumatic rotary actuator - Metal Work

Metal Work

W0900300081

€239.51 (€194.72 tax excl.)

Stainless steel valve, 3/8" ball, 3 way 2 positions, 3/2, "L" configuration, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Stainless steel valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300081 Representative image...

Angled seat valve 1 1/2 2/2 NC actuator in INOX diameter 90| Aignep | Adajusa

Valves with pneumatic actuators

Angled seat valve 1 1/2 NC actuator in INOX diameter 90 - Aignep

Aignep

X1YXG10900

€355.36 (€288.91 tax excl.)

Normally closed (NC) simple acting inclined seat valve with 1" 1/2 thread. PTFE gaskets which allow it to work in a wide range of fluid temperatures (-10ºC to +180ºC). The actuator body It is made of AISI 304 stainless steel and is pneumatically actuated. The valve can be installed in any mounting position, the body manufactured in the shape of a "Y"...

Angled seat valve 1/2 2/2 NC | Aignep | Adajusa

Valves with pneumatic actuators

Angled seat valve 1/2 NC actuator in INOX - Aignep

Aignep

X1Y0510400

€119.95 (€97.52 tax excl.)

Normally closed (NC) simple acting inclined seat valve with 1/2 thread. PTFE gaskets which allow it to work in a wide range of temperatures in the fluid (-10ºC to +180ºC). The actuator body is made of AISI 304 stainless steel and is pneumatically actuated. The valve can be installed in any mounting position, the "Y" shaped body increases flow by 30% and...

Valves with pneumatic actuators

Valve way 3/8 3/2 L- with pneumatic rotary actuator - Metal Work

Metal Work

W0900300122

€154.91 (€125.94 tax excl.)

3/8" ball valve, 3 way 2 positions, 3/2, "L" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Nickel-plated brass valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300122 Representative image for illustrative...

Valves with pneumatic actuators

Valve 1 3/2 way stainless steel L-shaped with actuator pneumatic rotary - Metal Work

Metal Work

W0900300084

€327.92 (€266.60 tax excl.)

Stainless steel 1" ball valve, 3 way 2 positions, 3/2, "L" configuration, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Stainless steel valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300084 Representative image...

Customers who bought this product also bought:

Anti-return valve tube 6 in polyamide - Airon - ADAJUSA

Anti-return valves

Anti-return valve tube diameter 6 in polyamide

Generico-AIR

VURTT06

€7.28 (€5.92 tax excl.)

Anti-return valve with built-in fittings for tube Ø6, in polyamide (plastic). It allows the passage of the aíre onlyo in one of the two directions of travel.Reference: VU. R.TT.06 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic dealers

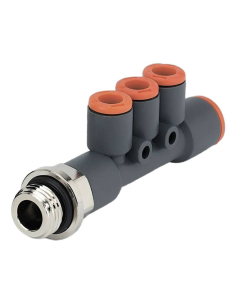

1/4 Collector with 4 outlets 6 and 4 with technopolymer fittings - Metal Work

Metal Work

2L45002

€9.52 (€7.74 tax excl.)

Collector distributor with male thread of 1/4 "and 1 outlet with racor Ø6 and 3 outlets fittings Ø4, made of chromed brass and technopolymer, for pneumatic applications.Reference: 2L45002 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

1/4 metal pressure regulator with pressure gauge - Mindman

1/4 metal pressure regulator with pressure gauge - Mindman 2

Filter groups of 1/4 FR-L

Metal pressure regulator 1/4 with pressure gauge - Mindman

Mindman

MAR20008A

€21.59 (€17.55 tax excl.)

Pressure regulator of 1/4 0-8.5 Kgrs., with metal body. Fixation by square. The pressure regulator is supplied with the fixing bracket and the pressure gauge.Reference: 281MAR20008A Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Fixed squadron cylinder diameter 32 - ADAJUSA

Pneumatic cylinder accessories

Cylinder fixing Squad diameter 32

Generico-AIR

PB032

€3.64 (€2.96 tax excl.)

Fixing Squad for pneumatic cylinder diameter 32mm. This fixing bracket is suitable for cylinders manufactured according to ISO 15552 - ISO 6431 of any brand. Reference: PB.032 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic logic valve function O Metal Work - ADAJUSA

Pneumatic logic valve function O Metal Work - ADAJUSA 2

Logic valves and special valves

Pneumatic logic valve function OR - Metal Work

Metal Work

W3604000001

€17.75 (€14.43 tax excl.)

Pneumatic logic valve function "OR" with built-in quick fittings for 4mm diameter tube.Reference: W3604000001 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Foot support with cast bearings

Bearing bracket shaft 25mm UCP205 - ISB

ISB

UCP205-ISB

€8.41 (€6.84 tax excl.)

Casting bracket with UCP205 inserted bearing for 25mm diameter shaft, self-aligning support bracket with ball bearing inserted with prisoners in the inner ring, plate sealing endowed with a lip in nitrile rubber. Bearing with spherical outer rings for self-alignment and to compensate for alignment defects. Reference: UCP205 Representative image for...

Magnetic sensor reed (2 wires) with connector and cable - Metal Work

Magnetic sensor reed (2 wires) with connector and cable - Metal Work 2

Pneumatic cylinder accessories

Magnetic sensor reed 2 wires connector and cable - Metal Work

Metal Work

W0950000201

€36.44 (€29.63 tax excl.)

Magnetic detector sensor with cable and connector included 2 wires. Reference: W0950000201 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

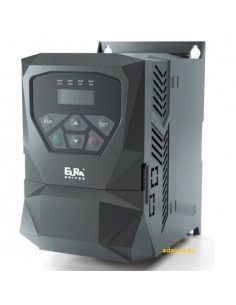

E600 series frequency converter Eura Drives adajusa
