T-stainless steel valve 1/4 3/2-way with pneumatic rotary actuator

€239.51 Tax included

194.72 tax excl.

W0900300112

1/4" stainless steel ball valve, 3 way 2 positions, 3/2, with "T" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve made of stainless steel.

The valve has a manual activation control.

Valves with ATEX certification.

Part number: W0900300300112

Simbolo neumatico actuador con valvula doble efecto Pictograma ATEX

Logotipo metal work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/4" ball valve, 3 way 2 positions, 3/2, made of stainless steel, with "T" valve configuration, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a knob to operate the valve manually.

The configuration of the valve is in "T", in one position, the valve allows the passage from 1 to 2 or 1 to 1 remaining the 3 closed; in the other position, the passage is allowed between all the way.

Valves with ATEX certification.

Diagrama válvula en T de 3 Vías

Technical characteristics:

  • Manufacturer of the assembly: Metal Work
  • Manufacturer's reference: W0900300300112
  • Type of actuator: Ø32 double acting pneumatic.
  • Valve type: 3 way 2 positions (3/2).
  • Valve configuration: "T" configuration.
  • Thread type: G 1/4" female
  • Valve body: AISI 316 stainless steel
  • Ball: Stainless steel AISI 316
  • Seals: PTFE.
  • Nominal pressure PN: 40 bar
  • Standard: ISO 5211 (direct mounting to actuator)
  • Temperature: -20ºC to +80ºC
  1. Dimensiones actuadores neumaticos con valvulas 3 vías

Dimensiones valvulas con actuador neumático de 3 vías

Esquema montaje válvula 3 vías en L con actuador

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

Valve 1/4 3/2-way L- with pneumatic rotary actuator - Metal Work

Metal Work
W0900300121
€158.76 (€129.07 tax excl.)
1/4" ball valve, 3 way 2 positions, 3/2, with "L" configuration, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Nickel-plated brass valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300121 Representative image for...
1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

Stainless steel valve 1/4 3/2-way L with pneumatic rotary actuator - Metal Work

Metal Work
W0900300080
€239.51 (€194.72 tax excl.)
Stainless steel 1/4" ball valve, 3 way 2 positions, 3/2, "L" configuration, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Stainless steel valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300080 Representative image...
1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

T-stainless steel valve 1/4 3/2-way with pneumatic rotary actuator

Metal Work
W0900300112
€239.51 (€194.72 tax excl.)
1/4" stainless steel ball valve, 3 way 2 positions, 3/2, with "T" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve made of stainless steel. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300300112 Representative...

16 other products in the same category:

1/4 2/2-way valve with pneumatic rotary actuator 1/4 2/2-way valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

3/8 2/2-way valve with pneumatic rotary actuator - Metal Work

Metal Work
W0900300102
€127.49 (€103.65 tax excl.)
3/8" ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300102 Representative image for illustrative purposes,...
1/4 2/2-way valve with pneumatic rotary actuator 1/4 2/2-way valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

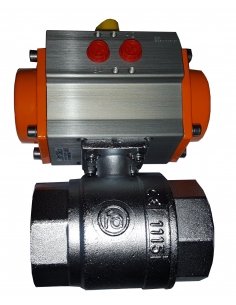

Stainless steel valve 2 2/2-way with pneumatic rotary actuator - Metal Work

Metal Work
W0900300008
€465.96 (€378.83 tax excl.)
Stainless steel 2" ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Stainless steel valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300008 Representative image for illustrative...
1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

L-valve 1 3/2-way with pneumatic rotary actuator - Metal Work

Metal Work
W0900300125
€230.91 (€187.73 tax excl.)
1" ball valve, 3 way 2 positions, 3/2, with "L" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Nickel-plated brass valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300125 Representative image for illustrative...
1/4 2/2-way valve with pneumatic rotary actuator 1/4 2/2-way valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

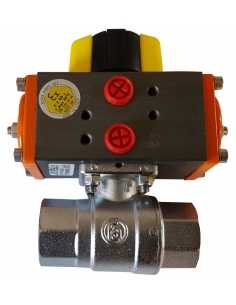

Valve 1 1/2 2/2 ways with pneumatic rotary actuator - Metal Work

Metal Work
W0900300107
€217.30 (€176.67 tax excl.)
1" 1/2 ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300107 Representative image for illustrative purposes,...
Angled seat valve 1/2 2/2 NC actuator in technopolymer diameter 50| Aignep | Adajusa
Valves with pneumatic actuators

Angled seat valve 1/2 NC actuator in technopolymer diameter 50 - Aignep

Aignep
X2Y0510500
€96.17 (€78.19 tax excl.)
Normally closed (NC) simple acting inclined seat valve with 1/2 thread. PTFE gaskets which allow it to work in a wide range of temperatures in the fluid (-10ºC to +180ºC). The actuator body is made of technopolymer and is pneumatically actuated. The valve can be installed in any mounting position, the "Y" shaped body increases flow by 30% and increases...
1/4 2/2-way valve with pneumatic rotary actuator 1/4 2/2-way valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

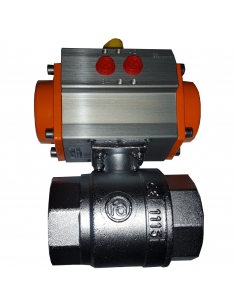

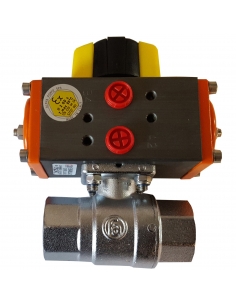

Stainless steel valve 3/4 2/2-way with pneumatic rotary actuator - Metal Work

Metal Work
W0900300004
€183.41 (€149.11 tax excl.)
Stainless steel 3/4" ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Stainless steel valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300004 Representative image for illustrative...
1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

Stainless steel T-valv2 3/2-way with pneumatic rotary actuator - Metal Work

Metal Work
W0900300119
€823.63 (€669.62 tax excl.)
2" stainless steel ball valve, 3 way 2 positions, 3/2, "T" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve made of stainless steel. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300119 Representative image for...
Angled seat valve 1/2 2/2 NC | Aignep | Adajusa
Valves with pneumatic actuators

Angled seat valve 1/2 NC actuator in INOX - Aignep

Aignep
X1Y0510400
€119.95 (€97.52 tax excl.)
Normally closed (NC) simple acting inclined seat valve with 1/2 thread. PTFE gaskets which allow it to work in a wide range of temperatures in the fluid (-10ºC to +180ºC). The actuator body is made of AISI 304 stainless steel and is pneumatically actuated. The valve can be installed in any mounting position, the "Y" shaped body increases flow by 30% and...
1/4 2/2-way valve with pneumatic rotary actuator 1/4 2/2-way valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

1/2 2/2-way valve with pneumatic rotary actuator - Metal Work

Metal Work
W0900300103
€125.95 (€102.40 tax excl.)
1/2" ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300103 Representative image for illustrative purposes,...
1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

Stainless steel T-valve 1 3/2-way with pneumatic rotary actuator - Metal Work

Metal Work
W0900300116
€327.92 (€266.60 tax excl.)
1" stainless steel ball valve, 3 way 2 positions, 3/2, with "T" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve made of stainless steel. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300116 Representative image...
Angled seat valve 1 1/2 2/2 NC | Aignep | Adajusa
Valves with pneumatic actuators

Angled seat valve 1 1/2 NC actuator in technopolymer - Aignep

Aignep
X2YXG10800
€258.57 (€210.22 tax excl.)
Normally closed (NC) simple acting inclined seat valve with 1 1/2 thread. PTFE gaskets which allow it to work in a wide range of fluid temperatures (-10ºC to +180ºC). The actuator body is made of technopolymer and is pneumatically actuated. The valve can be installed in any mounting position, the "Y" shaped body increases flow by 30% and increases the...
Seat valve 1/2 2/2 NC | Aignep | Adajusa
Valves with pneumatic actuators

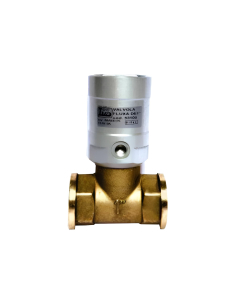

Compact valve for fluids 1/2 NC with pneumatic actuator Fluxa series - Aignep
