Rotary actuator diameter 42 F04 - Metal Work

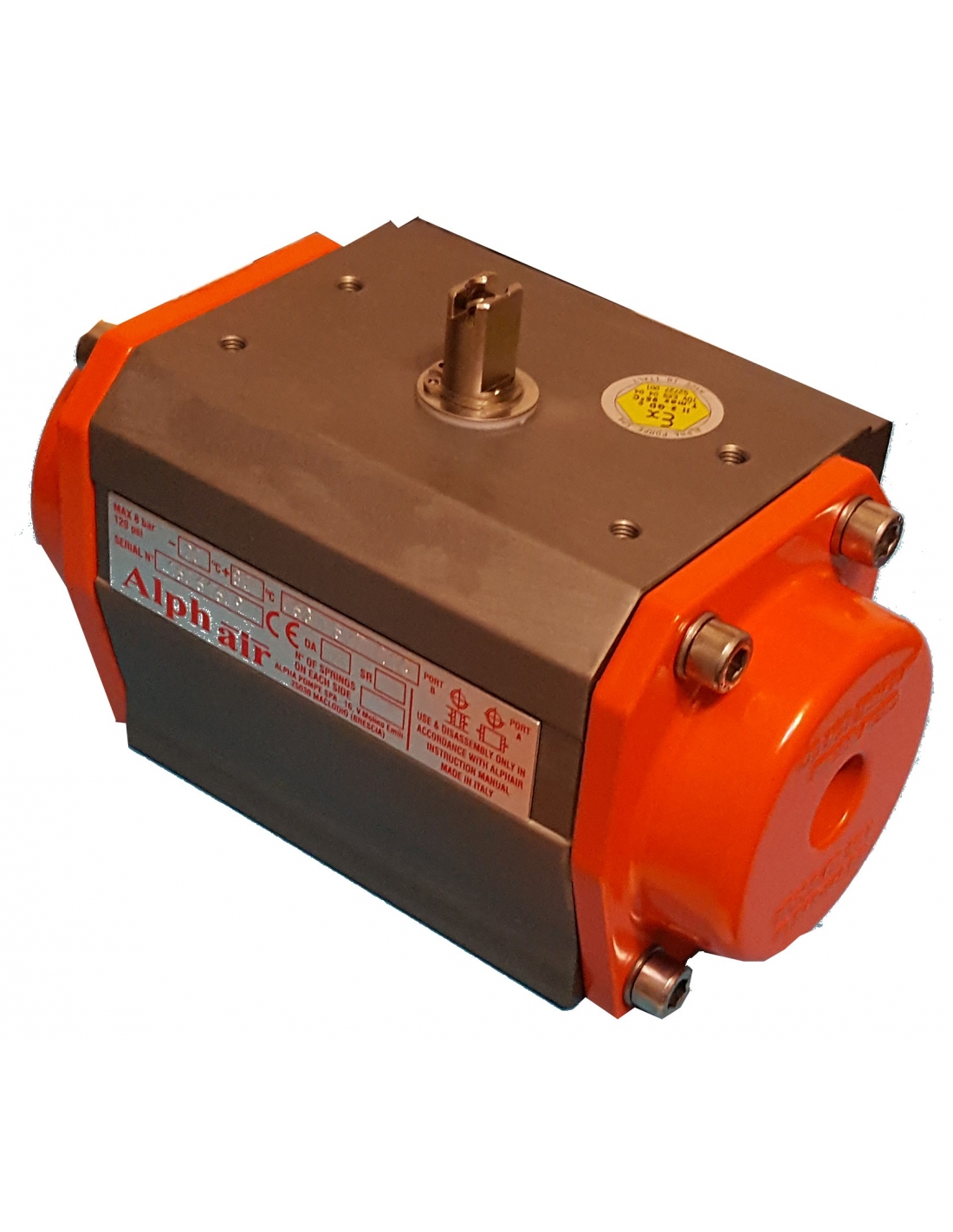

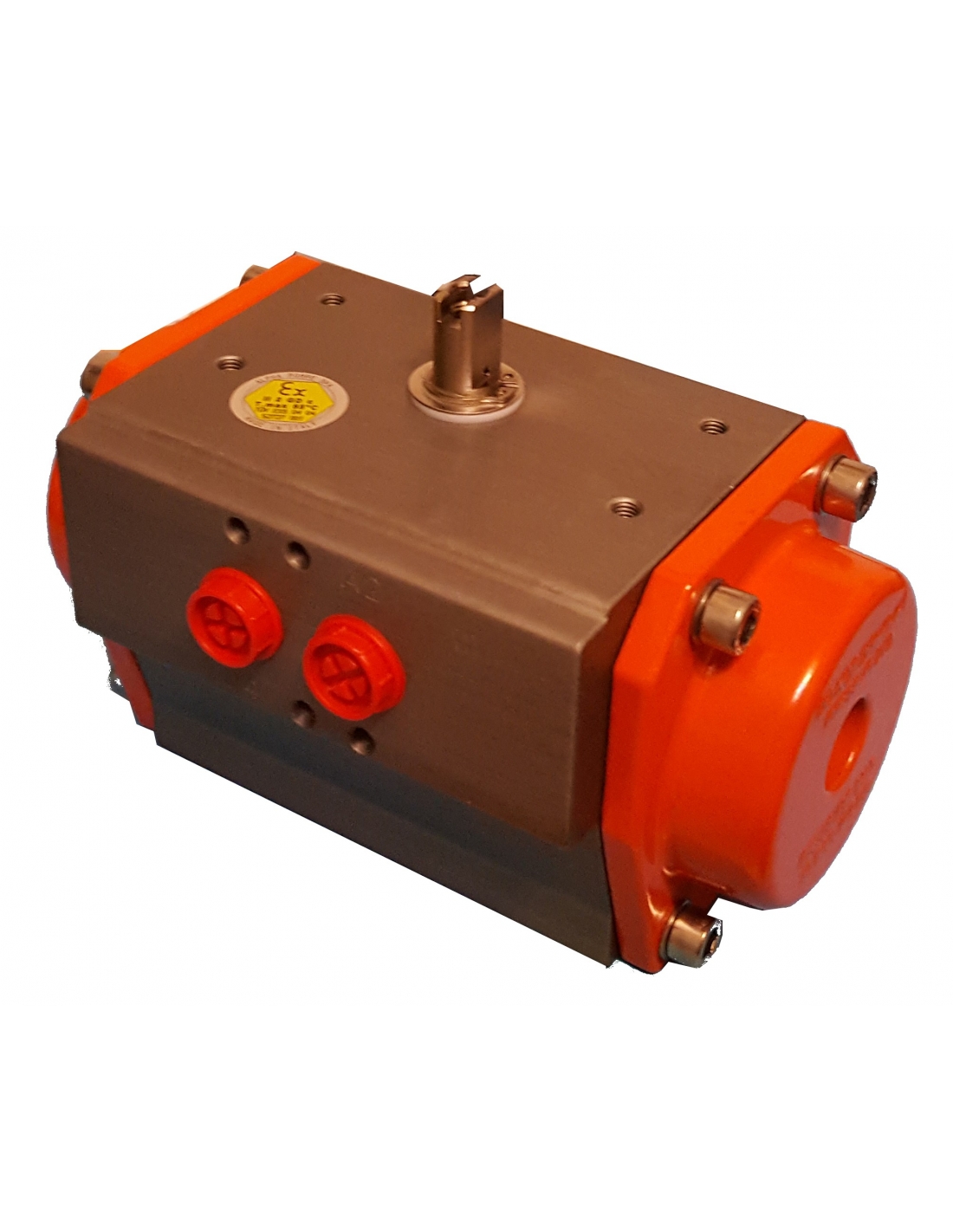

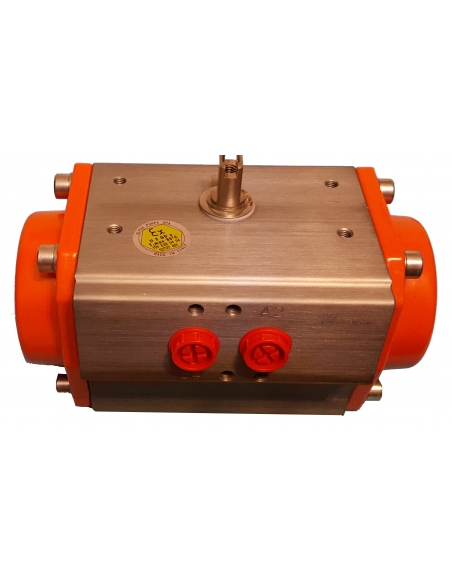

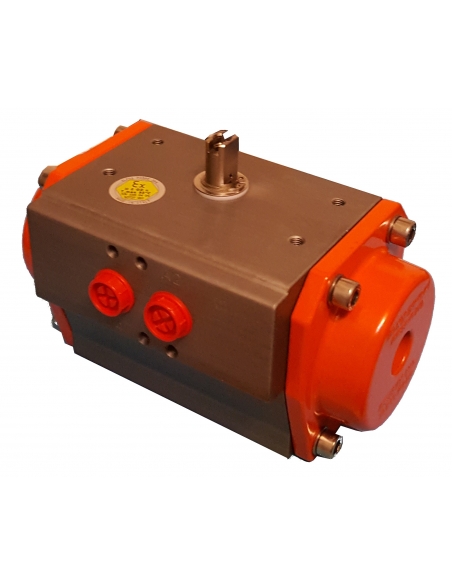

Pneumatic rotary actuator Ø42 of double effect, to act ball valves, butterfly, or any other type, with anchorage F04 and angle of rotation of 90º.

The actuator allows to be easily coupled to valves complying with the ISO 5211 - DIN3337 standard, allows to receive valves distance F04. On the actuator can be fixed valves and solenoid valves STANDARD NAMUR for its action.

Specifications

• Manufacturer/Supplier: Metal Work
• Reference: W790B042GQ009DA
• Operating pressure:
  • bar: 3 to 8
  • MPa: 0.3 to 0.8
  • Psi: 43 to 116
• Operating temperature: -20ºC to +80ºC
• Fluid: 20 μm dry filtered air
• Rotation angle: 90º ±5º
• Mechanical connection: Square type
• Machining for valve or solenoid valve on body type NAMUR VDIVDE-3845
• ATEX Category:
  • II 2G Ex h IIC T5 Gb
  • II 2D Ex h IIIC T95ºC Db
• Mounting position: Any, vertical is not recommended
• Actuator type: Double effect
• Rated torque at 6 bar 7.6 Nm
• Rotation time: 0.5 s.

Dimensions:

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
