L-valve 1 3/2-way with pneumatic rotary actuator - Metal Work

€230.91 Tax included

187.73 tax excl.

W0900300125

1" ball valve, 3 way 2 positions, 3/2, with "L" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Nickel-plated brass valve body.

The valve has a manual activation control.

Valves with ATEX certification.

Part number: W0900300125

Simbolo neumatico actuador con valvula doble efecto Pictograma ATEX

Logotipo metal work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1" ball valve, 3 way 2 positions, 3/2, with "L" valve configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a knob to operate the valve manually.

The configuration of the valve is in "L", in one position, the valve allows the passage from 1 to 2 or 1 to 1 remaining the 3 closed; in the other position, the passage is allowed from 1 to 3 or 3 to 1 remaining the 2 closed.

Valves with ATEX certification.

Diagrama válvula en L

Technical specifications:

  • Manufacturer of the assembly: Metal Work.
  • Manufacturer's reference: W0900300125
  • Type of actuator: Ø50 double acting pneumatic (AP50).
  • Valve type: 3 way 2 positions (3/2).
  • Valve configuration: "L" configuration.
  • Thread type: G 1" female.
  • Valve body: brass OT58 nickel plated.
  • Ball: OT58 chrome-plated brass.
  • Seals: PTFE.
  • Nominal pressure PN: 16 bar
  • Standard: ISO 5211 (direct mounting to actuator)
  • Temperature: -20ºC to +80ºC

Dimensiones valvula 3 vias el L con actuador

Dimensiones valvulas con actuador neumático de 3 vías

Válvula en L con actuador neumático

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

3/4 3/2- way L-shaped valve with pneumatic rotary actuator - Metal Work

Metal Work
W0900300124
€208.24 (€169.30 tax excl.)
3/4" ball valve, 3 way 2 positions, 3/2, with "L" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Nickel-plated brass valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300124 Representative image for...
1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

Valve 1 1/4 3/2 L-way with pneumatic rotary actuator - Metal Work

Metal Work
W0900300126
€278.13 (€226.12 tax excl.)
1"1/4 ball valve, 3 way 2 positions, 3/2, with "L" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Nickel-plated brass valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300126 Representative image for...
1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

Valve 1 1/2 3/2 L-way with pneumatic rotary actuator - Metal Work

Metal Work
W0900300127
€364.87 (€296.64 tax excl.)
1"1/2 ball valve, 3 way 2 positions, 3/2, with "L" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Nickel-plated brass valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300127 Representative image for...
1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

Valve 2 3/2-way L with pneumatic rotary actuator - Metal Work

Metal Work
W0900300128
€458.77 (€372.98 tax excl.)
2" ball valve, 3 way 2 positions, 3/2, "L" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Nickel-plated brass valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300128 Representative image for illustrative...

16 other products in the same category:

Angled seat valve 2 2/2 NC actuator in INOX diameter 90 | Aignep | Adajusa
Valves with pneumatic actuators

Angled seat valve 2 NC actuator in INOX diameter 90 - Aignep

Aignep
X1YXH10900
€404.25 (€328.66 tax excl.)
Normally closed (NC) simple acting inclined seat valve with 2" thread. PTFE gaskets which allow it to work in a wide range of temperatures in the fluid (-10ºC to +180ºC). The actuator body is manufactured in AISI 304 stainless steel and is pneumatically actuated. The valve can be installed in any mounting position, the body manufactured in the shape of a...
1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

Stainless steel T-valve 1 3/2-way with pneumatic rotary actuator - Metal Work

Metal Work
W0900300116
€327.92 (€266.60 tax excl.)
1" stainless steel ball valve, 3 way 2 positions, 3/2, with "T" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve made of stainless steel. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300116 Representative image...
Angled seat valve 1 1/2 2/2 NC actuator in INOX diameter 63| Aignep | Adajusa
Valves with pneumatic actuators

Angled seat valve 1 1/2 NC actuator in INOX diameter 63 - Aignep

Aignep
X1YXG10630
€270.98 (€220.31 tax excl.)
Normally closed (NC) simple acting inclined seat valve with 1" 1/2 thread. PTFE gaskets which allow it to work in a wide range of fluid temperatures (-10ºC to +180ºC). The actuator body It is made of AISI 304 stainless steel and is pneumatically actuated. The valve can be installed in any mounting position, the body manufactured in the shape of a "Y"...
1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

Valve 1/4 3/2-way L- with pneumatic rotary actuator - Metal Work

Metal Work
W0900300121
€158.76 (€129.07 tax excl.)
1/4" ball valve, 3 way 2 positions, 3/2, with "L" configuration, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Nickel-plated brass valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300121 Representative image for...
Angled seat valve 1 2/2 NC actuator in INOX diameter 63| Aignep | Adajusa
Valves with pneumatic actuators

Angled seat valve 1 NC actuator in INOX diameter 63 - Aignep

Aignep
X1Y0910630
€199.90 (€162.52 tax excl.)
Normally closed (NC) simple acting inclined seat valve with 1" thread. PTFE gaskets which allow it to work in a wide range of temperatures in the fluid (-10ºC to +180ºC). The actuator body is manufactured in AISI 304 stainless steel and is pneumatically actuated. The valve can be installed in any mounting position, the body manufactured in the shape of a...
1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

3/8 3/2 T-way valve with pneumatic rotary actuator - Metal Work

Metal Work
W0900300132
€154.91 (€125.94 tax excl.)
3/8" ball valve, 3 way 2 positions, 3/2, with "T" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Nickel-plated brass valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300132 Representative image for...
1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

1/2 3/2 T-way valve with pneumatic rotary actuator - Metal Work

Metal Work
W0900300133
€162.98 (€132.50 tax excl.)
1/2" ball valve, 3 way 2 positions, 3/2, with "T" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Nickel-plated brass valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300133 Representative image for illustrative...
1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

Valve 1/4 3/2 T-way with pneumatic rotary actuator - Metal Work

Metal Work
W0900300131
€158.76 (€129.07 tax excl.)
1/4" ball valve, 3 way 2 positions, 3/2, with "T" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Nickel-plated brass valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300131 Representative image for...

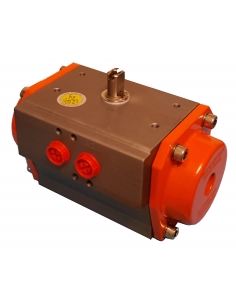

Rotary Actuator .63 Rotary Actuator .63 2
Valves with pneumatic actuators

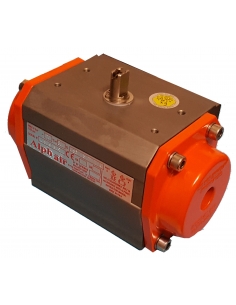

Rotary actuator diameter 63 - Metal Work

Metal Work
AD063GQ014DA
€154.24 (€125.40 tax excl.)
Double-acting Ø63 pneumatic rotary actuator, for actuating ball, butterfly, or any other type of valve, with a 90º turning angle. The actuator can be easily coupled to valves complying with ISO 5211 - DIN3337 regulations. NAMUR standard valves and solenoid valves can be fixed to the actuator for its operation. Reference: W79AD063GQ014DA   Representative...
1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

1/2 3/2-way L-valve with pneumatic rotary actuator - Metal Work

Metal Work
W0900300123
€162.98 (€132.50 tax excl.)
1/2" ball valve, 3 way 2 positions, 3/2, with "L" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Nickel-plated brass valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300123 Representative image for...
1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

Valve 1 3/2 way stainless steel L-shaped with actuator pneumatic rotary - Metal Work

Metal Work
W0900300084
€327.92 (€266.60 tax excl.)
Stainless steel 1" ball valve, 3 way 2 positions, 3/2, "L" configuration, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Stainless steel valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300084 Representative image...
1/4 3/2-way "L" valve with pneumatic rotary actuator 1/4 3/2-way "L" valve with pneumatic rotary actuator 2
Valves with pneumatic actuators

T-stainless steel valve 3/8 3/2-way with pneumatic rotary actuator

Metal Work
W0900300113
€239.51 (€194.72 tax excl.)
3/8" stainless steel 3/8" ball valve, 3 way 2 positions, 3/2, "T" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve made of stainless steel. The valve has a manual activation control. Valves with ATEX certification. Part number: W0900300113 Representative image...

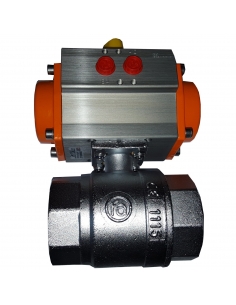

1/4 2/2-way valve with pneumatic rotary actuator 1/4 2/2-way valve with pneumatic rotary actuator 2
