1/4 3/2-way "L" valve with pneumatic rotary actuator

Valve 2 3/2-way L with pneumatic rotary actuator - Metal Work

Name: Valve 2 3/2-way L with pneumatic rotary actuator - Metal Work
Brand: Metal Work
SKU: VB3L2LB050063
Price: 867.9249 EUR
Availability: PreOrder

€867.92 Tax included

€705.63 tax excl.

Valve 2" dial , 3-way 2-position, 3/2, with "L" configuration, with double-acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass.

The valve has a manual activation control.

Valves with ATEX certification.

Reference: VB3L2LB050063D / W0900300128

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Valve 2" dial , 3-way 2-position, 3/2, with valve configuration in "L", with double-acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to be able to act the valve manually.

The configuration of the valve is in "L", in one position, the valve allows the passage from 1 to 2 or 1 to 1 remaining the 3 closed; in the other position, the step is allowed from 1 to 3 or from 3 to 1 remaining the 2 closed.

Valves with ATEX certification.

Diagrama válvula en L

Specifications:

Assembly manufacturer: Metal Work.
Manufacturer reference: VB3L2LB050063D / W0900300128
Actuator type: Ø63 double pneumatic effect (AP63).
Valve type: 3 ways 2 positions (3/2).
Valve configuration: in "L".
Thread type: G 2" female.
Valve body: nickel-plated OT58 brass.
Dial: Chrome OT58 brass.
Joints: PTFE.
Nominal pressure PN: 16 bar
Standard: ISO 5211 (direct mounting to the actuator)
Temperature: -20ºC to +80ºC

Dimensiones valvula 3 vias el L con actuador

Dimensiones valvulas con actuador neumático de 3 vías

Válvula en L con actuador neumático

Material for professional use, install in compliance with the regulations in force at the place of installation.

Valves with pneumatic actuator

catalog valves with actuator Metal Work

Download (688.05KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

L-valve 1 3/2-way with pneumatic rotary actuator - Metal Work

Metal Work

VB3L2LB025050

€320.64 (€260.68 tax excl.)

1" dial valve, 3 ways 2 positions, 3/2, with "L" configuration, with double effect pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3L2LB025050D / W0900300125 Representative...

1/4 3/2-way "L" valve with pneumatic rotary actuator 2

Valves with pneumatic actuators

Valve 1 1/4 3/2 L-way with pneumatic rotary actuator - Metal Work

Metal Work

VB3L2LB032063

€447.61 (€363.91 tax excl.)

Valve of 1"1/4 of sphere, 3 ways 2 positions, 3/2, with configuration in "L", with pneumatic rotary actuator of double effect. For control of air, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3L2LB032063D / W0900300126...

Valves with pneumatic actuators

Valve 1 1/2 3/2 L-way with pneumatic rotary actuator - Metal Work

Metal Work

VB3L2LB040063

€568.14 (€461.90 tax excl.)

Valve of 1"1/2 of sphere, 3 ways 2 positions, 3/2, with configuration in "L", with pneumatic rotary actuator of double effect. For control of air, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3L2LB040063D / W0900300127...

16 other products in the same category:

Valves with pneumatic actuators

T-stainless steel valve 1 1/2 3/2-way with pneumatic rotary actuator

Metal Work

VB3T2IA040063

€568.83 (€462.46 tax excl.)

1 1/2" valve in stainless steel dial, 3-way 2-position, 3/2, with "T" configuration, with double-acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve made of stainless steel. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3T2IA040063D Representative...

Valves with pneumatic actuators

Valve 1 1/4 3/2 L-way with pneumatic rotary actuator - Metal Work

Metal Work

VB3L2LB032063

€447.61 (€363.91 tax excl.)

Valves with pneumatic actuators

Angled seat valve 2 NC actuator in technopolymer - Aignep

Aignep

X2YXH10800

€286.69 (€233.08 tax excl.)

Normally closed (NC) simple acting inclined seat valve with 2" thread. PTFE gaskets which allow it to work in a wide range of temperatures in the fluid (-10ºC to +180ºC). The actuator body is manufactured in technopolymer and is pneumatically actuated. The valve can be installed in any mounting position, the body manufactured in the shape of a "Y"...

Valves with pneumatic actuators

Rotary actuator diameter 42 double effect - Metal Work

Metal Work

AC042GQ011DA

€114.61 (€93.18 tax excl.)

Double effect pneumatic rotary actuator Ø42, to act ball valves, butterfly, or any other type, with anchorage F03 Y F05 and angle of rotation of 90º. The actuator allows easy coupling to valves in compliance with ISO 5211 - DIN3337. On the actuator can be fixed valves and solenoid valves STANDARD NAMUR for its action. Reference:...

Valves with pneumatic actuators

Rotary actuator diameter 32 F04 - Metal Work

Metal Work

0B032GQ009DA

€98.24 (€79.87 tax excl.)

Pneumatic rotary actuator Ø32 of double effect, to act ball valves, butterfly, or any other type, with anchorage F04 and angle of rotation of 90º. The actuator allows easy coupling to valves in compliance with ISO 5211 - DIN3337. On the actuator can be fixed valves and solenoid valves STANDARD NAMUR for its action. Reference: W790B032GQ009DA ...

Valves with pneumatic actuators

Angled seat valve 1 1/2 NC actuator in INOX diameter 90 - Aignep

Aignep

X1YXG10900

€347.50 (€282.52 tax excl.)

Normally closed (NC) simple acting inclined seat valve with 1" 1/2 thread. PTFE gaskets which allow it to work in a wide range of fluid temperatures (-10ºC to +180ºC). The actuator body It is made of AISI 304 stainless steel and is pneumatically actuated. The valve can be installed in any mounting position, the body manufactured in the shape of a "Y"...

Valves with pneumatic actuators

Angled seat valve 1 1/4 NC actuator in technopolymer - Aignep

Aignep

X2YXF10800

€221.54 (€180.11 tax excl.)

Normally closed (NC) simple acting inclined seat valve with 1 1/4 thread. PTFE gaskets which allow it to work in a wide range of temperatures in the fluid (-10ºC to +180ºC). The actuator body is made of technopolymer and is pneumatically actuated. The valve can be installed in any mounting position, the "Y" shaped body increases flow by 30% and increases...

Valves with pneumatic actuators

Stainless steel valve 3/8 3/2-way L with pneumatic rotary actuator - Metal Work

Metal Work

VB3L2IA010032

€230.38 (€187.30 tax excl.)

Stainless steel valve with 3/8" dial, 3 ways 2 positions, 3/2, with "L" configuration, with double effect pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in stainless steel. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3L2IA010032D...

Valves with pneumatic actuators

Stainless steel T-valve 3/4 3/2-way with pneumatic rotary actuator - Metal Work

Metal Work

VB3T2IA020050

€254.79 (€207.15 tax excl.)

3/4" valve in stainless steel dial, 3 ways 2 positions, 3/2, with configuration in "T", with double effect pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve made of stainless steel. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3T2IA020050D...

Valves with pneumatic actuators

Valve 1 3/2 way stainless steel L-shaped with actuator pneumatic rotary - Metal Work

Metal Work

VB3L2IA025050

€363.12 (€295.22 tax excl.)

Stainless steel 1" ball valve, 3 way 2 positions, 3/2, "L" configuration, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Stainless steel valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: Z33VB3L2IA025050D/ W0900300084...

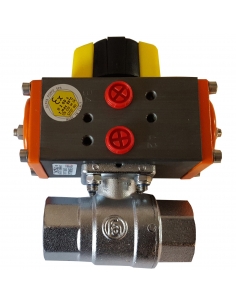

1/4 2/2-way valve with pneumatic rotary actuator

1/4 2/2-way valve with pneumatic rotary actuator 2

Valves with pneumatic actuators

Valve 1 1/4 2/2 ways with pneumatic rotary actuator - Metal Work

Metal Work

VB22LC032050D

€213.21 (€173.34 tax excl.)

Valve of 1" 1/4 of sphere, 2 ways 2 positions, 2/2, with double effect pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB22LC032050D / W0900300106 Representative image for...

Valves with pneumatic actuators

Rotary actuator 50 - Metal Work

Metal Work

AC050GQ011DA

€128.07 (€104.12 tax excl.)

Pneumatic rotary actuator Ø50 of double effect, to act ball valves, butterfly, or any other type, with anchorage F03 Y F05 and angle of rotation of 90º. The actuator allows easy coupling to valves in compliance with ISO 5211 - DIN3337. On the actuator can be fixed valves and solenoid valves STANDARD NAMUR for its action. Reference: W79AC050GQ011DA...

Valves with pneumatic actuators

Stainless steel T-valve 1 3/2-way with pneumatic rotary actuator - Metal Work

Metal Work

VB3T2IA025050

€315.42 (€256.44 tax excl.)

1" valve in stainless steel dial, 3 ways 2 positions, 3/2, with configuration in "T", with double effect pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve made of stainless steel. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3T2IA025050D Representative...

Valves with pneumatic actuators

Valve 1/4 3/2-way L- with pneumatic rotary actuator - Metal Work

Metal Work

VB3L2LB008032

€188.96 (€153.63 tax excl.)

Valve 1/4" dial , 3-way 2-position, 3/2, with "L" configuration, with double-acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3L2LB008032D / W0900300121...

Valves with pneumatic actuators

Stainless steel valve 3/4 2/2-way with pneumatic rotary actuator - Metal Work

Metal Work

VB22IA020042D

€176.41 (€143.42 tax excl.)

Stainless steel valve with 3/4" dial, 2-way 2-position, 2/2, with double-acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in stainless steel. The valve has a manual activation control. Valves with ATEX certification. Reference: VB22IA020042D Representative image for...

Valves with pneumatic actuators

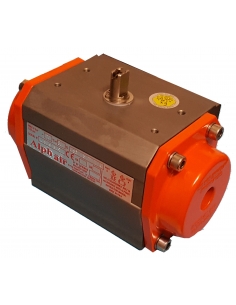

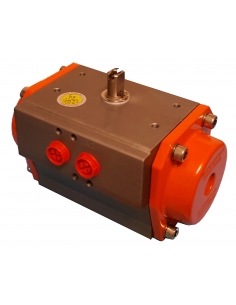

Rotary actuator diameter 63 - Metal Work
