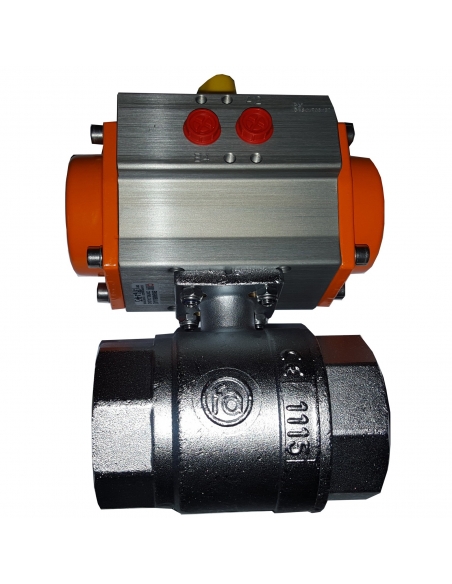

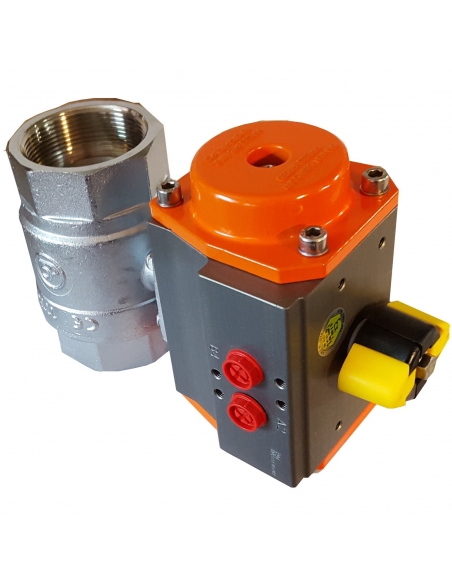

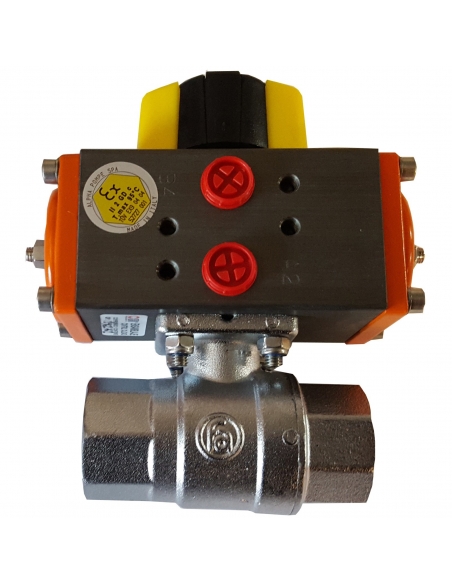

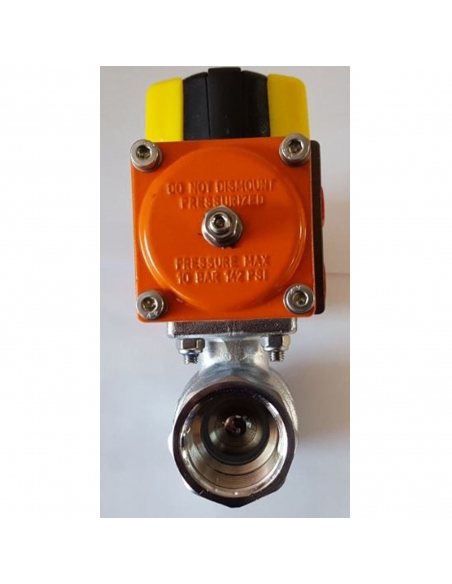

1/4 2/2-way valve with pneumatic rotary actuator

Stainless steel valve 2 2/2-way with pneumatic rotary actuator - Metal Work

Name: Stainless steel valve 2 2/2-way with pneumatic rotary actuator - Metal Work
Brand: Metal Work
SKU: VB22IA050063D
Price: 448.212 EUR
Availability: PreOrder

€448.21 Tax included

€364.40 tax excl.

Stainless steel valve with 2" dial, 2 ways 2 positions, 2/2, with double effect pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in stainless steel.

The valve has a manual activation control.

Valves with ATEX certification.

Reference: VB22IA050063D

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

2" dial valve, made of stainless steel, 2-way 2-position, 2/2, with double-acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to be able to act the valve manually.

Valves with ATEX certification.

Specifications:

Assembly manufacturer: Metal Work.
Manufacturer reference: VB22IA050063D

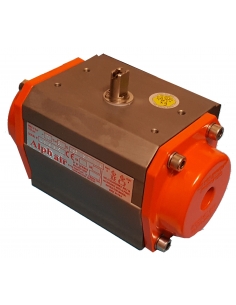

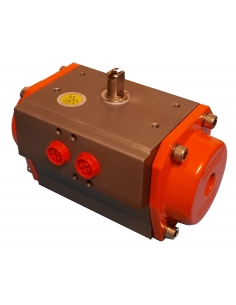

Actuator type: Ø63 double pneumatic effect (AP63).
Valve type: 2 ways 2 positions (2/2).
Thread type: G 2" female.
Valve body: AISI 316 stainless steel
Dial: Stainless steel
Joints: PTFE.
Nominal pressure PN: 40 bar
Standard: ISO 5211 (direct mounting to the actuator)
Temperature: -20ºC to +80ºC

Dimensiones valvulas con actuador 2 vias acero inoxidable

Valvulas rotatorias con actuador neumático 2 vias dimensiones

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Valve 1 1/2 2/2 ways with pneumatic rotary actuator - Metal Work

Metal Work

VB22LC040063D

€253.82 (€206.36 tax excl.)

Valve of 1" 1/2 of sphere, 2 ways 2 positions, 2/2, with double effect pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB22LC040063D / W0900300107 Representative image for...

1/4 2/2-way valve with pneumatic rotary actuator 2

Valves with pneumatic actuators

2 2/2-way valve with pneumatic rotary actuator - Metal Work

Metal Work

VB22LC050063D

€286.47 (€232.90 tax excl.)

Valve of 2" sphere, 2 ways 2 positions, 2/2, with double effect pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB22LC050063D / W0900300108 Representative image for...

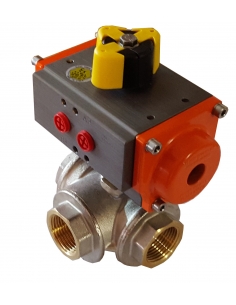

1/4 3/2-way "L" valve with pneumatic rotary actuator

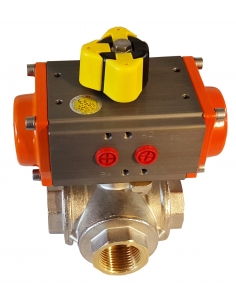

1/4 3/2-way "L" valve with pneumatic rotary actuator 2
