T-way valve 1 3/2-way with pneumatic rotary actuator - Metal Work

€230.91 Tax included

€187.73 tax excl.

W0900300135

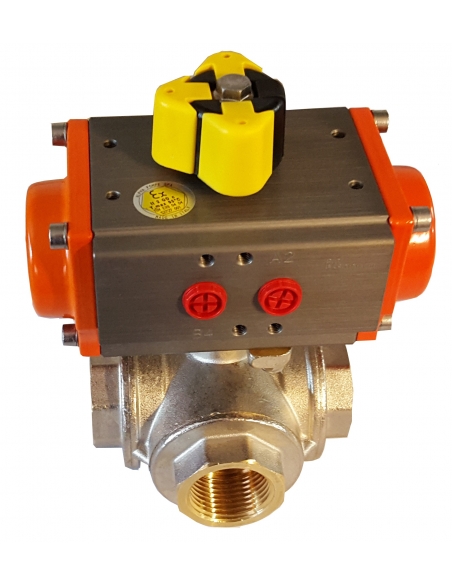

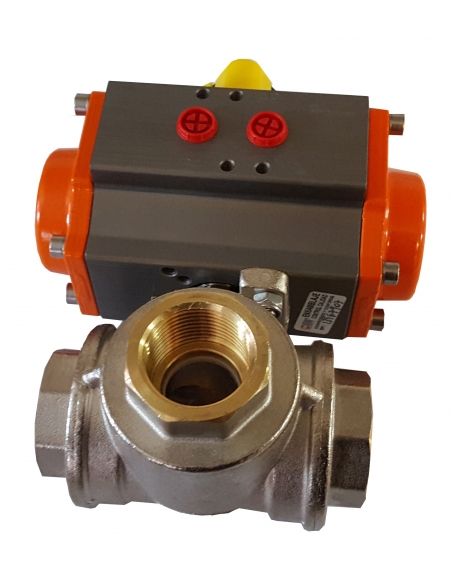

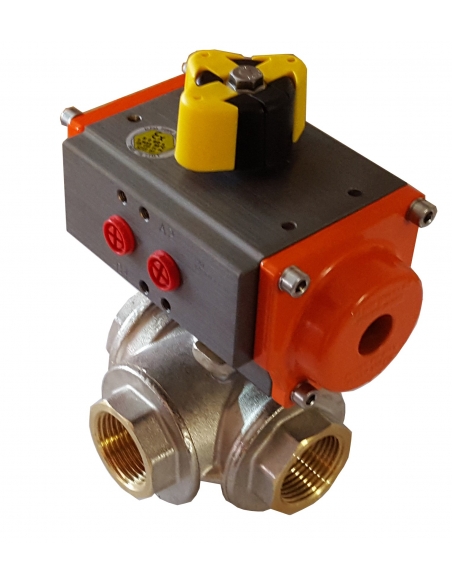

1" ball valve, 3 way 2 positions, 3/2, with "T" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Nickel-plated brass valve body.

The valve has a manual activation control.

Valves with ATEX certification.

Part number: W0900300300135

Simbolo neumatico actuador con valvula doble efecto Pictograma ATEX

Logotipo metal work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1" ball valve, 3 way 2 positions, 3/2, with "T" valve configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a knob to operate the valve manually.

The configuration of the valve is in "T", in one position, the valve allows the passage from 1 to 2 or 1 to 1 remaining the 3 closed; in the other position, the passage is allowed between all the way.

Valves with ATEX certification.

Diagrama válvula en T de 3 Vías

Technical specifications:

  • Manufacturer of the assembly: Metal Work.
  • Manufacturer's reference: W0900300300135
  • Type of actuator: Ø50 double acting pneumatic.
  • Valve type: 3 way 2 positions (3/2).
  • Valve configuration: "T" configuration.
  • Thread type: G 1" female.
  • Valve body: brass OT58 nickel plated.
  • Ball: OT58 chrome-plated brass.
  • Seals: PTFE.
  • Nominal pressure PN: 16 bar
  • Standard: ISO 5211 (direct mounting to actuator)
  • Temperature: -20ºC to +80ºC

Dimensiones valvulas en T para accionadores rotativos

Dimensiones valvulas con actuador neumático de 3 vías

Esquema montaje válvula 3 vías en L con actuador

Material for professional use, install in compliance with the regulations in force at the place of installation.
