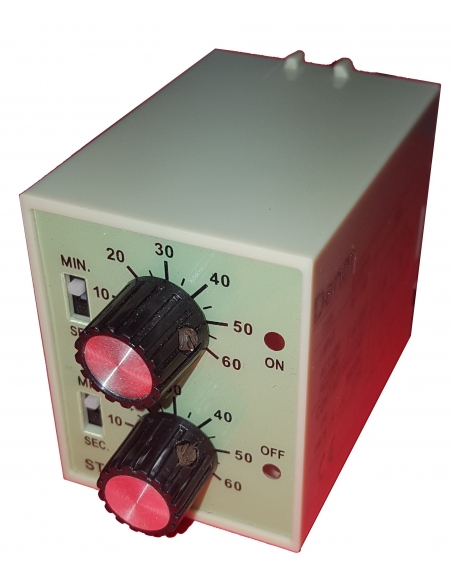

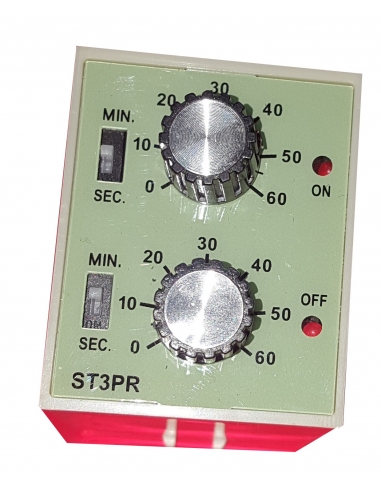

Cyclic timer 60s 230Vac
Cyclic timer 60s 230Vac
Cyclic timer 60s 230Vac
Cyclic timer 60s 230Vac

Analog cyclic timer 230Vac

€28.76 Tax included

23.38 tax excl.

ST3PR60230

Timer ana logic cyclic 0-60s / 0-60min, pluggable 230Vac, cyclic timer with independent time setting, for general and industrial applications, mounted on octal base (8 pins), 1 contact switched.

With two selectable and independent time scales for active and sleep cycles. The time scales are selectable from 0-60s or 0-60 min.

Ordering No.: ST3PR 60S 230Vac

Simbolo relé 1 contacto conmutado

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Out of stock

2 questions about the product
Privacy
Shipments
Returns


Timer cyclic, with 1 contact switched output, for mounting on octal base (8 pins), operating voltage 230Vac.

This timer allows the control of the time duration of the output, a potentiometer adjusts the time duration of the active signal and another potentiometer the time it remains at rest. The indication of the states is produced by 1 led located on the front.

Manufactured in CMOS technology with low power consumption and high stability.

The timer has selectors for independent time scales for each of the work cycles, these scales allow selecting time ranges between 0-60s or 0-60 min.

Timing diagram:

Diagrama de tiempos temporizador cíclico

Technical characteristics:

  • Manufacturer/Supplier: Denor
  • Part number: ST3PR 60S 230Vac
  • Working voltage: 230Vac.
  • Operating mode: Cyclic.
  • Time setting mode: Independent by potentiometers.
  • Time range: 0-60s/ 0-60min.
  • Type of contacts: 1 contact switched.
  • Output contacts capacity: 2A (380Vac, cosϕ=1).
  • Status indication: Red LEDs.
  • Dimensions: 50x40mm
  • Weight: 160gr.
  • Degree of protection: IP20.

Wiring diagram:

Conexionado temporizador ST3PR

Dimensions:

Dimensiones temporizador ST3PR

Material for professional use, install respecting the regulations in force at the place of installation.

Questions

Question
tengo una bomba que se enchufa a la pared y necesito encenderla durante 3 segundos cada 30 segundos. Es posible hacerlo con este dispositivo?
Answer
Buenos días.

Sería posible, hay que tener en cuenta el consumo de la bomba para saber si el contancto del temporizador puede soportar la carga, de lo contrario hay que utilizar un contactor para que soporte la el consumo de la bomba y con el temporizador se contola la bobina de dicho contactor.

Saludos

Adajusa
Diego on 06/29/2023 01:43:57
Question
Boa tarde. Preciso de acender uma luz a cada 15 minutos e que esteja acesa por mais ou menos 2 minutos
Answer

Boa tarde

O temporizador possui 1 contato de saída comutado, permite controlar a duração da saída e o tempo que ela permanece em repouso, conforme indicado no diagrama da ficha técnica.

O temporizador possui seletores para escalas de tempo independentes para cada um dos ciclos de trabalho, essas escalas permitem selecionar intervalos de tempo entre 0-60s ou 0-60min.

Uma saudação

ADAJUSA

Ibon on 11/23/2022 19:05:58

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Digital weekly programmer with schuko plug TKO-DHE| ADAJUSA | price
Timers - Switches and time programmers

Digital weekly programmer with plug-in socket

TRACON
TKO-DHE
€14.65 (€11.91 tax excl.)
Digital time programmer with front Schuko socket. Weekly programming with minimum switching time 1 minute, 20 storage programs, possibility of ON-OFF switching independently of timing, power reserve 100 hours. For indoor use. Part no.: TKO-DHE Picture is representative for illustrative purposes, the article supplied will correspond to the specifications...

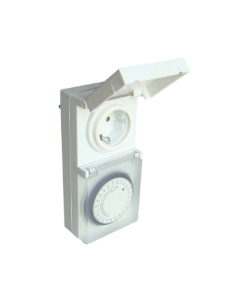

Analog daily programmer with schuko plug IP44 TKO-DN| ADAJUSA : price
