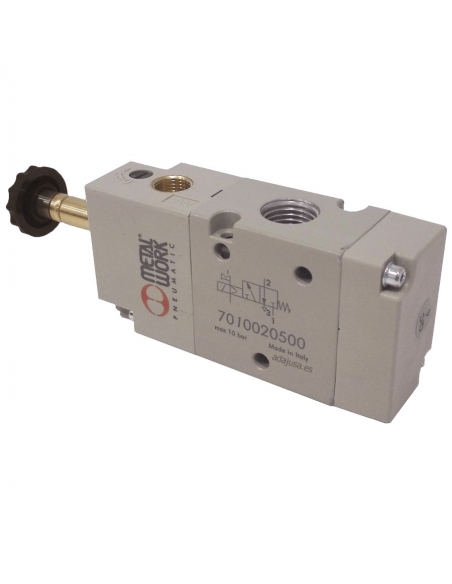

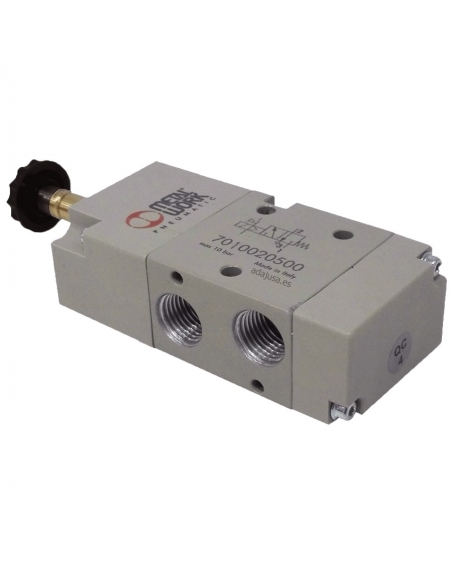

Electrovalve 1/8 3-way assisted monostable - Metal Work - ADAJUSA

Solenoid valve 1/8 3-way monostable assisted without coil - Metal Work

Name: Solenoid valve 1/8 3-way monostable assisted without coil - Metal Work
Brand: Metal Work
SKU: 7010020500
Price: 57.195 EUR
Availability: PreOrder

€57.20 Tax included

€46.50 tax excl.

Electrovalve 1/8 3-way monostable assisted without coil. Brand Metal Work. Normally closed (NC).
Reference: 7010020500

Logotipo Metal Work
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Electrovalve 1/8 3-way monostable assisted without coil, normally closed NC. Having independent pressure inlet for the pilot (assisted) allows to be used from 0 bars of pressure at the inlet.

Manufacturer Metal Work:
Reference: SOV23SESNC Code: 7010020500

characteristics:

Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 5 mm
Conductance C Nl/min · bar: 121.43
Critical ratio b bar/bar: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
SINGLE-SEAT TRA/TRR at 6 bar ms: 15/35
TRA/TRR bistable at 6 bar ms: 20/20
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15

Dimensiones electrovalvula 1/8-3/2 monoestable

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab
