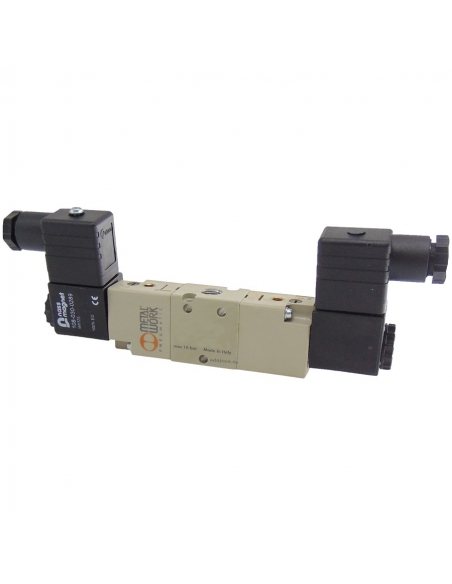

Double solenoid valve 1/8 3/2 assisted pathway NC-NO 24Vdc - Metal Work

1/8" 3/2 way double assistedpneumatic solenoid valve. One inlet is normally closed, i.e. with coil voltage will not pass through the solenoid valve , when the coil is not energized the passage of fluid or air will be interrupted and the other inlet is normally open, i.e. with no coil voltage, fluid or air will pass through the solenoid valve , when the coil is energized the passage of fluid or air will be interrupted.

With plastic connectors size 22 and coils 24 Vdc 2W

The supply includes:

• Double solenoid valve 1/8" 3/2 assisted NC-NO
• 2 Coils 24 Vdc 2W
• 2 Connectors

Technical characteristics:

• Manufacturer Metal Work
• Part number: Metal Work: SOV 28 SOS NC-NO Code: 7010023600
• Type of threads: G 1/8"
• Bistable bar: 2.5 ÷ 10
• Minimum assistance pressure bar: 2.5
• Operating temperature °C: -10 ÷ +60
• Nominal diameter mm: 5
• Conductance C Nl/min - bar: 121,43
• Critical ratio b bar/bar: 0,32
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
• Flow rate at 6 bar ΔP 1 bar Nl/min: 550
• TRA/TRR monostable at 6 bar ms: 15/35
• TRA/TRR bistable at 6 bar ms: 20/20
• Voltage tolerances %: -10 ÷ +15
• Class of isolation: F 155
• Rated voltage: 24Vdc
• Rated power: 2W

Equipment for professional use, install in compliance with the regulations in force at the place of installation.
