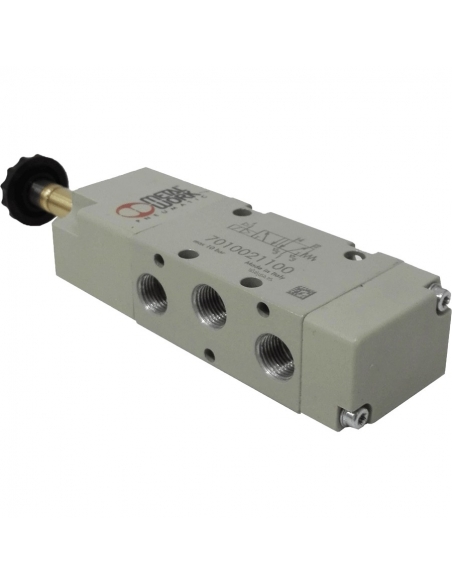

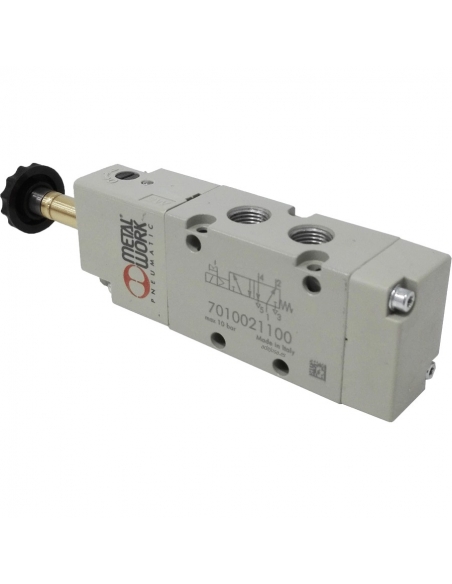

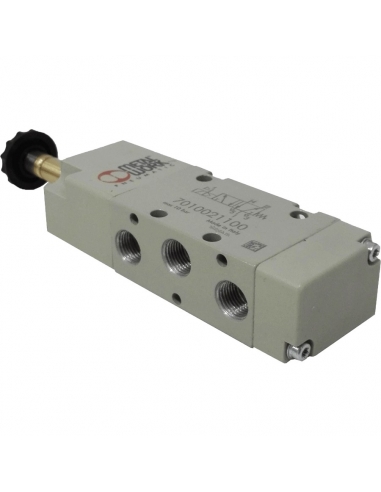

Solenoid valve 1/8 5 monostable roads without coil - Metal Work

€61.17 Tax included

49.73 tax excl.

7010021100

5-way 1/8" electrovalves, for pneumatic applications for industrial or general use. Manufactured in Europe by METAL WORK. Coil and connector not included.
simbolo eletroválvula neumática 5 vías
Logotipo Metal Work

Reference: 7010021100

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


5-way 1/8" pneumatic solenoid valves for industrial or general pneumatic applications. High throughflow and very high reliability and durability.

Coils and connectors not included.

  • Manufacturer: Metal Work
  • Reference: SOV25SOS00 Code: 7010021100.
  • Monostable bar operating pressure: 2.5 ÷10
  • Minimum assist pressure bar: 2.5
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min · bar: 121.43
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • Monostable TRA/TRR at 6 bar ms: 15/35
  • BISET TRA/TRR at 6 bar ms Voltage s coils: 20/20
  • Power: 2 W (DC) 3.5VA (AC
  • Voltage tolerances %: -10 ÷ +15

electrovalvula 1/8-5/2

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
