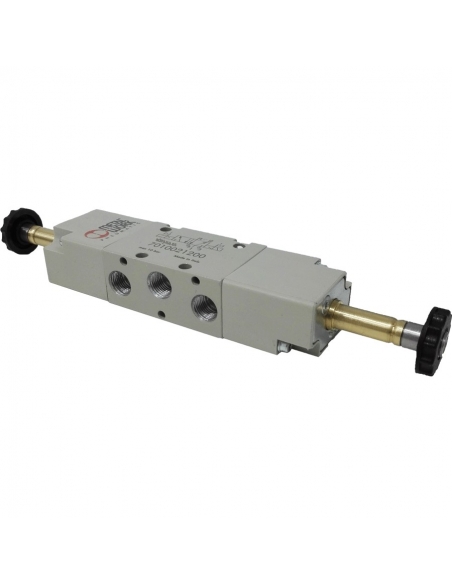

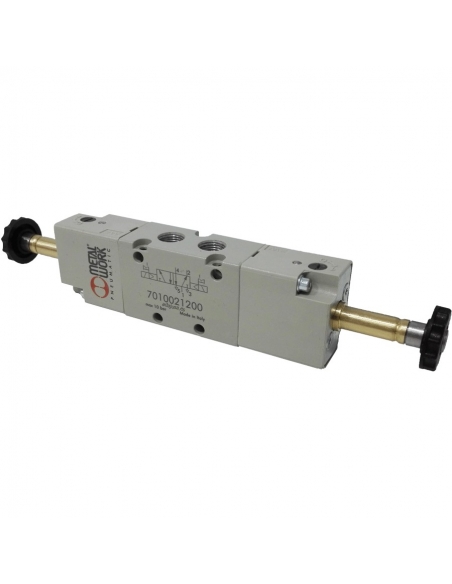

1/8 5-way bistable solenoid valve - Metal Work - ADAJUSA

Electrovalve 1/8 5-bistable tracks without coils - Metal Work

Name: Electrovalve 1/8 5-bistable tracks without coils - Metal Work
Brand: Metal Work
SKU: 7010021200
Price: 84.0213 EUR
Availability: InStock

€84.02 Tax included

€68.31 tax excl.

Electrovalve 1/8 5-way bistable (coils not included)
Reference: 7010021200
esquema neumático electroválvula nemática 5 vías Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve of 1/8 5 ways bistable, with nucleus for 8mm coil. For general and industrial applications. The solenoid valve is normally closed (NC), that is, without tension in the coil, the inlet is not communicated with the outlet, that is, there is no air pressure at the outlet, the outlet is communicated with the exhaust of the valve. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve. Coil and connector not included.

Specifications:

Manufacturer: Metal Work
Reference Metal Work: SOV 25 SOS 00 Code: 7010021200
Thread type: G 1/8"
Bistable bar: 1 ÷ 10
Minimum assist pressure bar: 2.5
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min · bar: 121,43
Critical bar/bar ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
Monostable TRA/TRR at 6 bar ms: 15/35
Bistable TRA/TRR at 6 bar ms: 20/20
Voltage tolerances %: -10 ÷ +15
Insulation class: F 155

electrovalvula 1/8-5/2 biestable metal work
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
