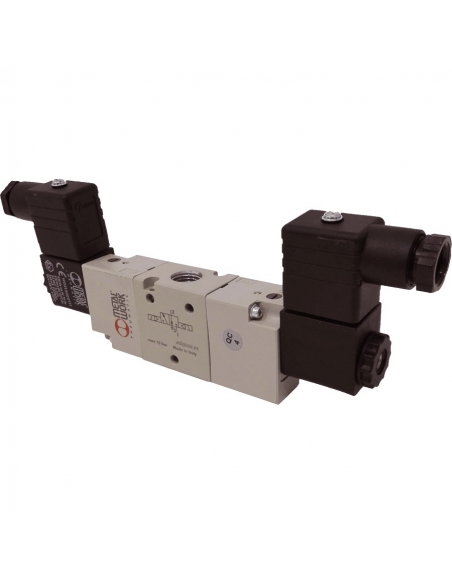

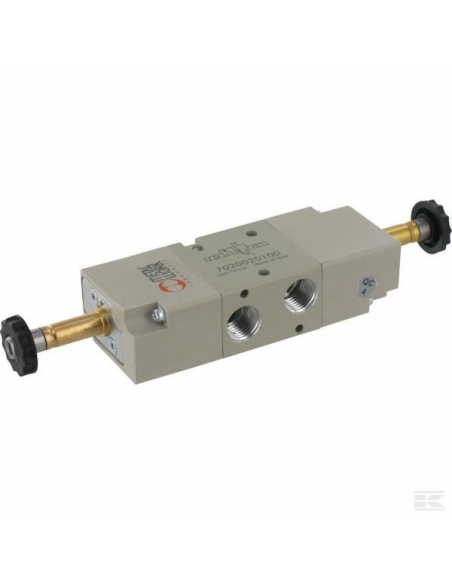

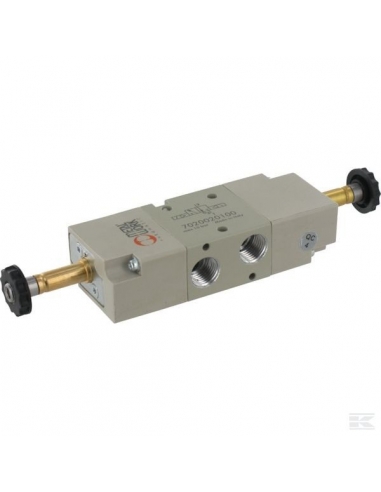

Solenoid valve 1/8 3 ways bistable 24Vdc 2 W - Metal Work

€103.73 Tax included

84.33 tax excl.

PK-12010024C

3-way, 2-position 1/8" electrovalves with 24Vcc coils, for pneumatic applications for industrial or general use.

Esquema neumático electroválvula 3 vías biestable
Logo-Metal-Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


1/8" 3-way, 2-position pneumatic solenoid valves for industrial or general pneumatic applications. High pitch flow rate and very high reliability and durability.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2.5W, for cores of 8mm.

Supply includes:

  • 1 solenoid valve 1/8 3 bistable ways
  • 2 Coils 24Vdc 2.5W
  • 2 22mm connectors

specifications:

  • Manufacturer of the solenoid valve: Metal Work.
  • Working pressure of the solenoid valve: 2.5 to 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10oC to 60oC.
  • Nominal diameter: 5mm.
  • Flow rate at 6 bars p 1 bar: 550 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvula neumática 3 vias 2 posiciones Metal Work

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
