Solenoid valve 1/8 3-way monostable assisted 24Vdc - Metal Work

€68.70 Tax included

€55.85 tax excl.

PK-12050024C

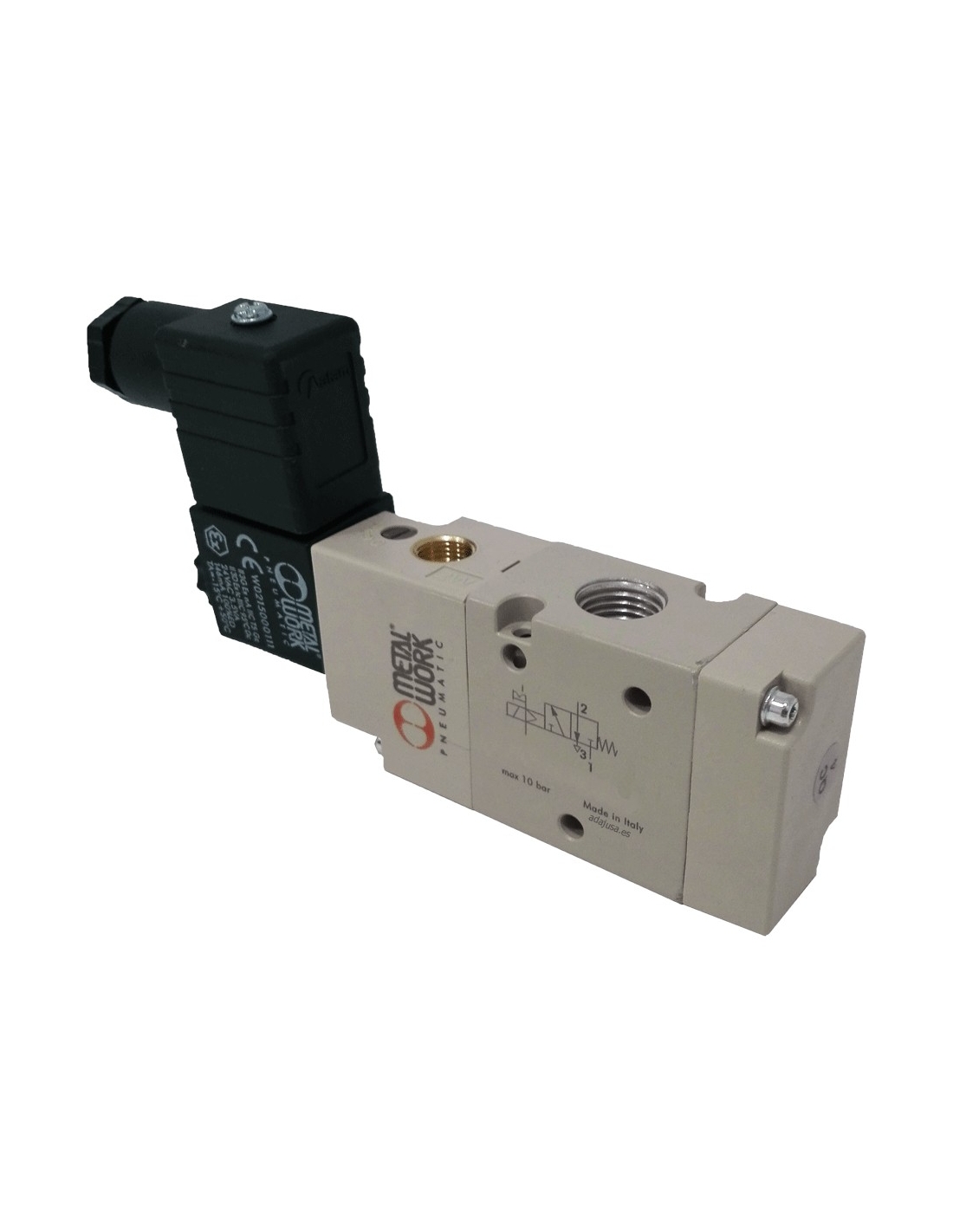

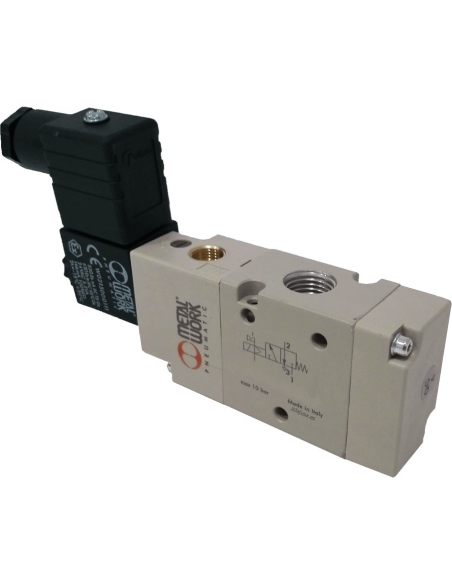

Electrovalve 1/8 3-way assisted monostable normally closed (NC), with coil at 24 Vdc and connector 22 mm

simbolo electrovalvula neumatica 3 vias

Logotipo Metal Work
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.



This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Solenoid valve 1/8 3 ways monostable assisted, normally closed NC with 24Vdc coil. By having an independent pressure inlet for the pilot (assisted) it can be used from 0 bars of pressure at the inlet.

Components included:

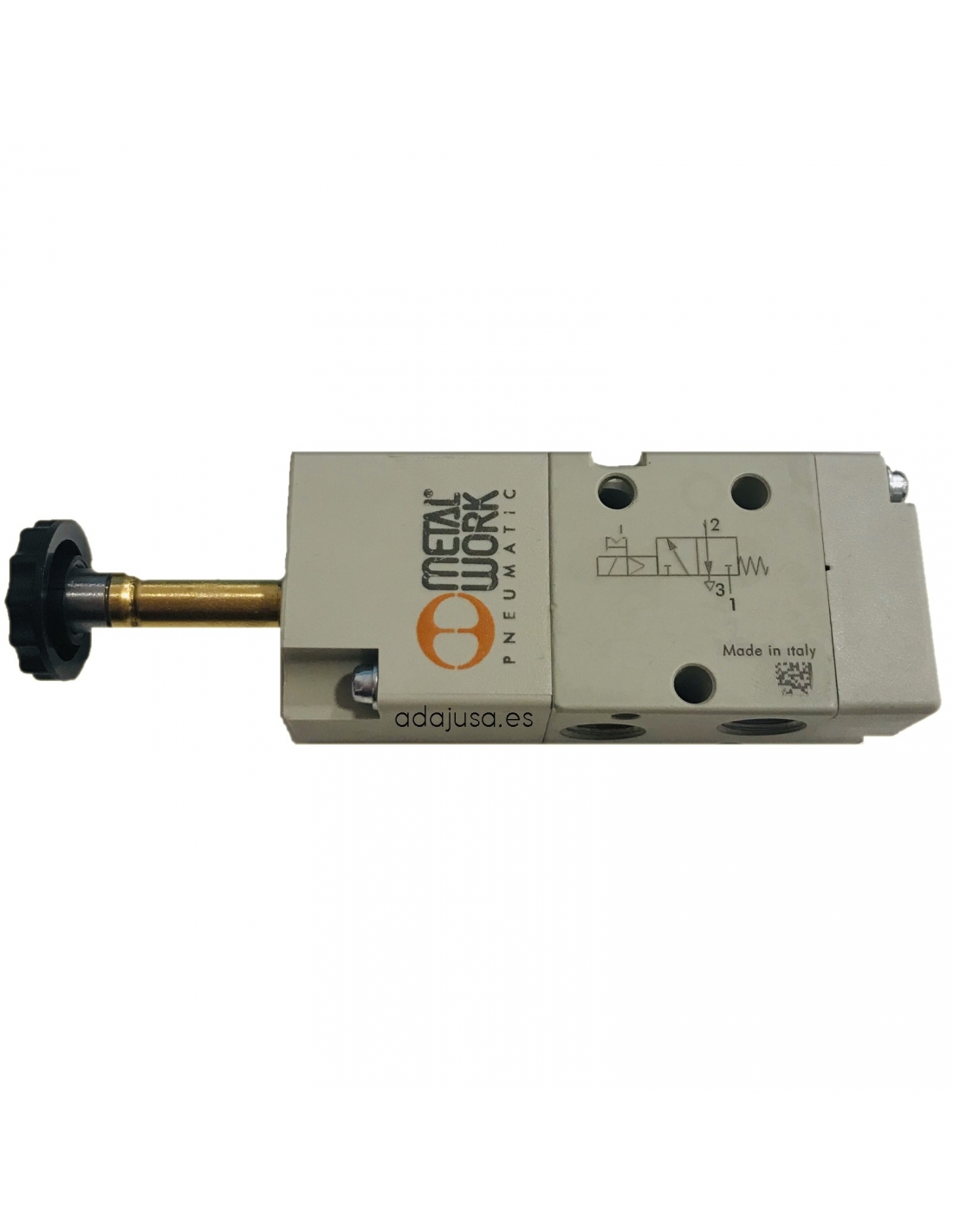

  • Solenoid valve 1/8 3/2 - monostable NC.
  • Coil 24 Vdc 2 W.
  • Connector size 22
Features:

  • Manufacturer: Metal Work
  • Solenoid valve reference: 7010020500 - SOV23SESNC
  • Operating pressure: 2.5 ÷10 bar
  • Minimum assist pressure: 2.5 bar
  • Operating temperature: -10 ÷ +60
  • Nominal diameter: 5 mm
  • Conductance C Nl/min · bar: 121.43
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • Monostable TRA/TRR at 6 bar ms: 15/35
  • Bistable TRA/TRR at 6 bar ms: 20/20
  • Voltage: 24Vdc
  • Power: 2 W
  • Voltage tolerances %: -10 ÷ +15

Dimensiones electrovalvula 1/8-3/2 monoestable


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
