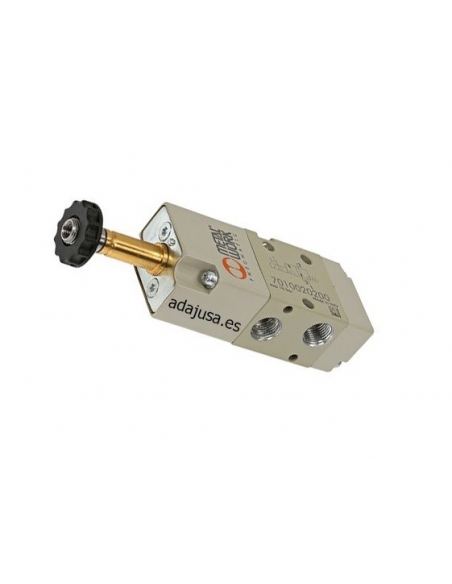

1/8 3-way monostable solenoid valve 230Vac - Metal Work
Solenoid valve connector size 22 - Metal Work - adajusa.com.com.
Coil solenoid valve 110Vac 3.5VA T22 '8 - Metal Work - adajusa.es
Solenoid valve 1/8 3-way monostable 230Vac -...
1/8 3-way monostable solenoid valve 230Vac - Metal Work
Solenoid valve connector size 22 - Metal Work - adajusa.com.com.
Coil solenoid valve 110Vac 3.5VA T22 '8 - Metal Work - adajusa.es
Solenoid valve 1/8 3-way monostable 230Vac - Metal Work

Solenoid valve 1/8 3-way monostable 230Vac - Metal Work

€63.70 Tax included

€51.79 tax excl.

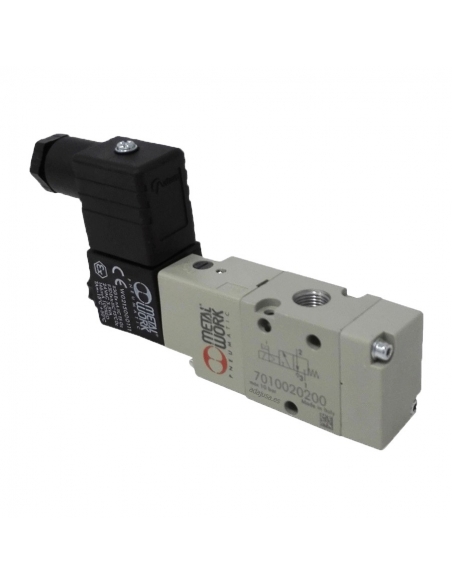

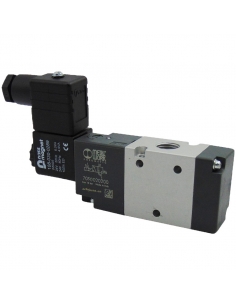

Electrovalve 1/8 3-way monostable normally closed (NC), with coil at 230Vac and connector 22 mm

simbolo electrovalvula neumatica 3 vias

Logotipo Metal Work
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.



This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve of 1/8 3 ways monostable, with 230Vac coil. For general and industrial applications. The solenoid valve is normally closed (NC), that is, without tension in the coil, the inlet is not communicated with the outlet, that is, there is no air pressure at the outlet, the outlet is communicated with the exhaust of the valve. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve.

Components included:

  • Solenoid valve 1/8 3/2 - monostable
  • Coil 230Vac 3.5VA.
  • Connector size 22
Features:

  • Manufacturer: Metal Work
  • Solenoid valve reference: SOV23SOSNC Code: 7010020200
  • Operating pressure: 2.5 ÷10 bar
  • Minimum assist pressure: 2.5 bar
  • Operating temperature: -10 ÷ +60
  • Nominal diameter: 7.5 mm
  • Conductance C Nl/min · bar: 264.26
  • Critical ratio b bar/bar: 0.27
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
  • Flow rate at 6 bar ΔP 1 bar Nl/min:1100
  • Monostable TRA/TRR at 6 bar ms: 19/45
  • Bistable TRA/TRR at 6 bar ms: 21/21
  • Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
  • Voltage tolerances %: -10 ÷ +15
  • Voltage: 220 - 240 Vac
  • Power: 3.5VA

Dimensiones electrovalvula 1/8-3/2 monoestable
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

Coil solenoid valve 110Vac...
Accessories for solenoid valves

Coil solenoid valve 110Vac 4,8VA Size 30mm diameter 9 ATEX - Aignep

Aignep
SOLX2110A2000
€88.88 (€72.26 tax excl.)
ATEX coil for solenoid valve size 30mm, voltage 110Vac, for Ø9mm cores. Coil consumption 4,8VA. Valid for solenoid valves with 9mm actuator core.Reference: SOLX2110A2000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.For more information, download the attached datasheet.

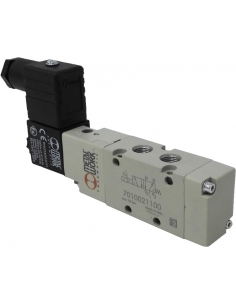

1/8 5-way monostable solenoid valve 24Vac 3.5VA - Metal Work - ADAJUSA 1/8 5-way monostable solenoid valve 24Vac 3.5VA - Metal Work - ADAJUSA 2
  • Pack
Solenoid valves 1/8

Solenoid valve 1/8 5-way monostable 24Vac 3.5VA - Metal Work

Metal Work
PK-12110024A
€68.79 (€55.93 tax excl.)
1/8" 5-way solenoid valves for pneumatic applications for industrial or general use. Coil for solenoid valve size 22mm, voltage 24Vac., with a consumption of 3.5VA, for cores of 8mm.Electric connector for 22mm size solenoid valve, in black.Manufactured in Europe by METAL WORK. Representative image for illustrative purposes, the article supplied shall...

Customers who bought this product also bought:

Male cylindrical adjustable...
Fittings swivel elbow

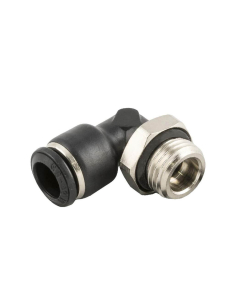

Male cylindrical adjustable elbow fitting 1/8 tube 4mm Series 55000 - Aignep
