1/8-3/2 NC Ball Pneumatic Stroke End - Mindman

Name: 1/8-3/2 NC Ball Pneumatic Stroke End - Mindman
Brand: Mindman
SKU: EPA100A
Price: 20.2458 EUR
Availability: PreOrder

€20.25 Tax included

€16.46 tax excl.

Limit Switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way normally closed (NC) thread. The limit switch is driven by a front metal ball.

Reference: 281EPA100A

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic stroke end,mechanically operated pneumatic valve by metal front ball. End-of-stroke connections are 1/8" threaded. The valve is normally closed 3-way (NC), when it is not pressed there is no pressure at the outlet and the outlet is communicated with the exhaust, when pressed, air pressure appears at the outlet.

Technical details:

Manufacturer: Mindman.
Manufacturer's Reference: EPA-100A.
Valve type: 1/8-3/2 Monostable.
Thread type: G 1/8".
Drive type: Metal front ball.
Number of tracks: 3.
Fluid type: Air under pressure, with or without lubrication.
Working pressure: 0÷9 Kgr/cm2.
Maximum pressure: 9 Kgr/cm2.
Working temperature: -5 to 60oC.
Material: Alumio and steel.
Weight: 68g.

Dimensiones Final de carrera neumático EPA-100A Mindman

EPA pneumatic limit switches

EPA valve data sheet Mindman

Download (364.47KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Limit Switch tyre 1/8 3/2 NC - Mindman

Mindman

EPA100

€19.15 (€15.57 tax excl.)

Limit Switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way normally closed (NC) thread. The limit switch is driven by front piston.Reference: 281EPA100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic switch lever 1/8-3/2 NC - Mindman - ADAJUSA

Pushbuttons and pneumatic actuators

Pneumatic switch lever 1/8-3/2 NC - Mindman

Mindman

EPA101

€21.35 (€17.36 tax excl.)

Pneumaticswitch, mechanically operated pneumatic valve, 1/8 3-way normally closed thread (NC). The limit switch is operated by manual lever with 2 fixed positions.Reference: 281EPA101 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit Switch high cam piston tyre 1/8 3/2 NC - Mindman

Mindman

EPA103

€25.78 (€20.96 tax excl.)

Limit Switch pneumatic,high piston with roller, mechanically operated pneumatic valve, 1/8 thread 3 ways normally closed (NC). The limit switch is driven by a button with a metal roller.Reference: 281EPA103 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Pneumatic Limit switchs

Limit switch 3/2 strut pneumatic NO side fittings diameter 4 mm - Aignep

Aignep

02VG03NOX1

€18.30 (€14.88 tax excl.)

Limit switch pneumatic strut pneumatic of 3 way and 2 positions, monostable, normally open (NO) and fittings located on the side for tube outer diameter of 4 mm. Prepared for mounting with emergency push button or similar. Series: 02VPart no.: 02VG03NOX1 Representative image for illustrative purposes, the item supplied will correspond to the...

Pneumatic Limit switchs

Limit Switch tyre 1/8 3/2 NC - Mindman

Mindman

EPA100

€19.15 (€15.57 tax excl.)

Pneumatic Limit switchs

Pneumatic limit switch 1/8 5/2 for panel actuators - Metal Work

Metal Work

7010001900

€55.17 (€44.85 tax excl.)

limit switch pneumatic valve 1/8 5/2 for mounting with emergency pushbutton or similar Reference: 7010001900 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit Switch 3/2 NC side fittings diameter M5 - Metal Work

Metal Work

W3501001111

€18.39 (€14.95 tax excl.)

limit switch pneumatic with push button drive, fittings located on the side for outer diameter tube of M5. The valve type of the limit switch is normally closed (NC). Reference: W3501001111 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit switch pneumatic 3/2 NC monostable for panel mount actuators - Aignep

Aignep

02VD03NCB5

€14.98 (€12.18 tax excl.)

Limit switch m5 pneumatic 3 way and 2 positions, fittings located on the side for M5 outer diameter tube. Prepared for mounting with emergency push button or similar. Series: 02VPart number: 02VD03NCB5 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit Switch 1/8 5/2 one-way roller lever - Metal Work

Metal Work

7001000610

€42.13 (€34.25 tax excl.)

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 5-way thread. The limit switch is unidirectional drive by roller lever. Reference: 7001000610 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit switch 3/2 NC pneumatic strut 3/2 NC monostable with lateral fittings diameter M5...

Aignep

02VG03NCB5

€13.44 (€10.93 tax excl.)

Limit switch m5 pneumatic 3 way and 2 positions, fittings located on the side for M5 outside diameter tube. The type of limit switch valve is normally closed (NC). Series: 02VPart number: 02VG03NCB5 Representative image for illustrative purposes, the item supplied will correspond to the specifications shown.

Pneumatic Limit switchs

Limit Switch 1/8 3/2 one-way roller lever - Metal Work

Metal Work

7001000600

€39.11 (€31.80 tax excl.)

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way thread. The limit switch is unidirectional drive by lever with roller. Reference: 7001000600 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit Switch tire piston NC 3/2 diameter M5 - Metal Work

Metal Work

W3501001411

€19.64 (€15.97 tax excl.)

Limit Switch pneumatic,fittings located on the side, for tube outer diameter of M5. The valve type of the limit switch is normally closed (NC). Reference: W3501001411 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit Switch 1/8 5-way tyre - Metal Work - adajusa.es

Pneumatic Limit switchs

Limit Switch 1/8 5-way strut tyre - Metal Work

Metal Work

7001000110

€30.37 (€24.69 tax excl.)

limit switch pneumatic drive with pushbutton drive, 1/8" 5-way mechanical drive. Drive by mechanical strut spring return. Reference: MEV 25 TAS OO - 7001000110 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit switch 3/2 NC pneumatic strut 3/2 NC side fittings diameter 4 mm- Aignep

Aignep

02VG03NCX1

€15.72 (€12.78 tax excl.)

Limit switch pneumatic strut pneumatic 3 way and 2 positions, monostable, normally closed (NC) and fittings located on the side for tube outer diameter of 4 mm. Prepared for mounting with emergency pushbutton or similar. Series: 02VPart no.: 02VG03NCX1 Representative image for illustrative purposes, the item supplied will correspond to the...

Pneumatic Limit switchs

Limit Switch tyre 3/2 NO side fittings diameter M5 - Metal Work

Metal Work

W3501001110

€20.11 (€16.35 tax excl.)

limit switch pneumatic with pushbutton drive, fittings located on the side for M5 outer diameter tube. The valve type of the limit switch is normally open (NA). Reference: W3501001110 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit Switch Metal Work roller lever - ADAJUSA

Limit Switch Metal Work roller lever - ADAJUSA 2

Pneumatic Limit switchs

Limit Switch 1/8 5/2 lever roller - Metal Work

Metal Work

7001000510

€41.92 (€34.08 tax excl.)

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 5-way thread. The limit switch is driven by a roller lever.Reference: 7001000510 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit Switch tyre piston NO 3/2 diameter M5 - Metal Work

Metal Work

W3501000411

€18.43 (€14.98 tax excl.)

Limit Switch pneumatic,fittings located on the side, for tube outer diameter of M5. The valve type of the limit switch is normally open (NO). Reference: W3501000411 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit Switch long cam tire with roller 1/8 3/2 NC - Mindman

Mindman

EPA105L

€21.35 (€17.36 tax excl.)

Limit Switch long cam tire with roller,mechanically operated pneumatic valve with cam with metal roller, thread 1/8 3 ways normally closed (NC).Reference: 281EPA105L Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit Switch 1/8 3-way Metal Work strut - ADAJUSA

Pneumatic Limit switchs

Limit Switch 1/8 3-way tyre strut - Metal Work

Metal Work

7001000100

€27.34 (€22.23 tax excl.)

limit switch pneumatic drive with push-button drive, 1/8" 3-way mechanical drive. Drive by mechanical strut spring return. Reference: MEV 23 TAS NC - 7001000100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Customers who bought this product also bought:

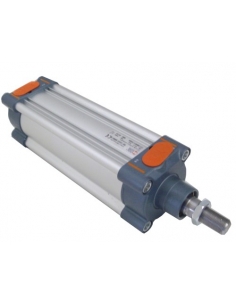

Cylinder 32x500 Double Effect - Metal Work
