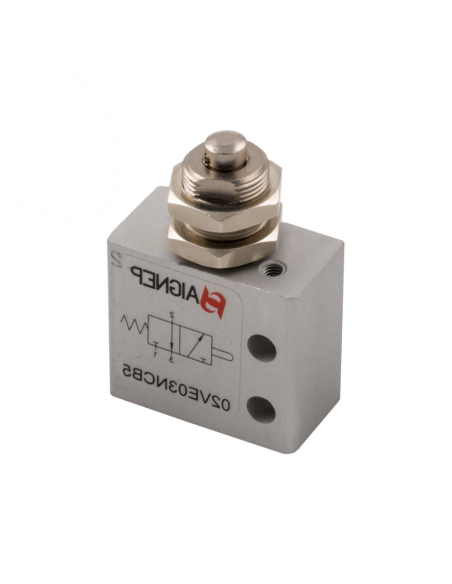

Limit switch 3/2 NC 3/2 NC strut pneumatic tire monostable side fittings diameter M5 - Aignep

Name: Limit switch 3/2 NC 3/2 NC strut pneumatic tire monostable side fittings diameter M5 - Aignep
Brand: Aignep
SKU: 02VE03NCB5
Price: 14.76 EUR
Availability: PreOrder

€14.76 Tax included

€12.00 tax excl.

Limit switch pneumatic actuated by M5 3 way and 2 positions strut actuator, fittings located on the side for M5 outside diameter pipe. The type of limit switch valve is normally closed (NC).

Series: 02V
Part number: 02VE03NCB5

ESQUEMAPASATABIQ NORMATIVAMICROVALVULA

Representative image for illustrative purposes, the item supplied will correspond to the specifications shown.

No queries yet, leave the first!

Privacy

Shipments

Returns

Limit switch pneumatic actuated by means of a strut with integrated quick-connect fittings for M5 external pipe diameter. The valve's idle state is normally closed (NC), i.e. when not pressed there is no air at the outlet, as the air cannot pass through, and when actuated it allows air to pass through and there is pneumatic pressure at the outlet.

Manufacturer: Aignep

Part number: 02VE03NCB5
Thread: M5
Valve body: anodized aluminum
Spring material: stainless steel
Seals: NBR
Fittings: quick couplings for pipe diameter M5 side connection.
Operating pressure: 2 ÷ 10
Operating temperature °C: -10 ÷ +60
Flow rate at 6 bar ΔP 1 bar Nl/min: 100

02VE03NCB5

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

AIGNEP 02V series catalog

Download (4.09MB)
