Limit switch 3/2 NC unidirectional cam pneumatic 3/2 NC monostable with side fittings M5 diameter - Aignep

Name: Limit switch 3/2 NC unidirectional cam pneumatic 3/2 NC monostable with side fittings M5 diameter - Aignep
Brand: Aignep
SKU: 02VU03NCB5
Price: 18.2286 EUR
Availability: PreOrder

€18.23 Tax included

€14.82 tax excl.

Limit switch pneumatic with unidirectional M5 cam actuator 3 way and 2 positions, fittings located on the side for tube outside diameter M5. The type of limit switch valve is normally closed (NC).

Series: 02V
Part no.: 02VU03NCB5

NORMATIVAMICROVALVULA

Representative image for illustrative purposes, the item supplied will correspond to the specifications shown.

No queries yet, leave the first!

Privacy

Shipments

Returns

Limit switch the pneumatic valve is actuated by means of a unidirectional cam, with integrated quick-connect fittings for M5 external diameter pipe. The valve's idle state is normally closed (NC), i.e. when not pressed there is no air at the outlet, as air cannot pass through, and when actuated it lets air pass through and there is pneumatic pressure at the outlet.

Manufacturer: Aignep

Part number: 02VU03NCB5
Thread: M5
Valve body: anodized aluminum
Spring material: stainless steel
Seals: NBR
Fittings: quick couplings for pipe diameter M5 side connection.
Operating pressure: 2 ÷ 10
Operating temperature °C: -10 ÷ +60
Flow rate at 6 bar ΔP 1 bar Nl/min: 100

02VU03NCB5

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

AIGNEP 02V series catalog

Download (4.09MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Limit Switch 3/2 NC one-way cam diameter 4 side fittings - Metal Work

Metal Work

W3501001301

€23.22 (€18.88 tax excl.)

Limit Switch pneumatic with unidirectional cam drive, fittings located on the side, for outer diameter tube of 4 mm. The valve type of the limit switch is normally closed (NC). Reference: W3501001301 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit Switch pneumatic 3/2 NC one-way cam diameter M5 side fittings - Metal Work

Metal Work

W3501001311

€22.77 (€18.51 tax excl.)

Limit Switch pneumatic with unidirectional cam drive, fittings located on the side, for M5 outer diameter tube. The valve type of the limit switch is normally closed (NC). Reference: W3501001311 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

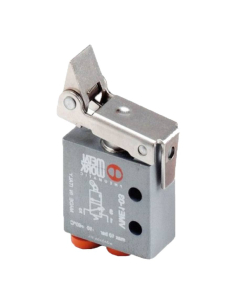

Limit Switch pneumatic 3/2 NC unidirectional cam diameter M5 - Metal Work

Metal Work

W3501000300

€21.65 (€17.60 tax excl.)

Limit Switch tire with unidirectional cam drive, fittings located at the rear, for M5 outer diameter tube. The valve type of the limit switch is normally closed (NC). Reference: W3501000300 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

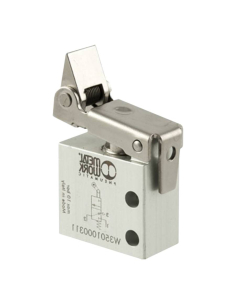

Limit Switch tyre 3/2 NC one-way cam diameter M5 rear fittings - Metal Work
