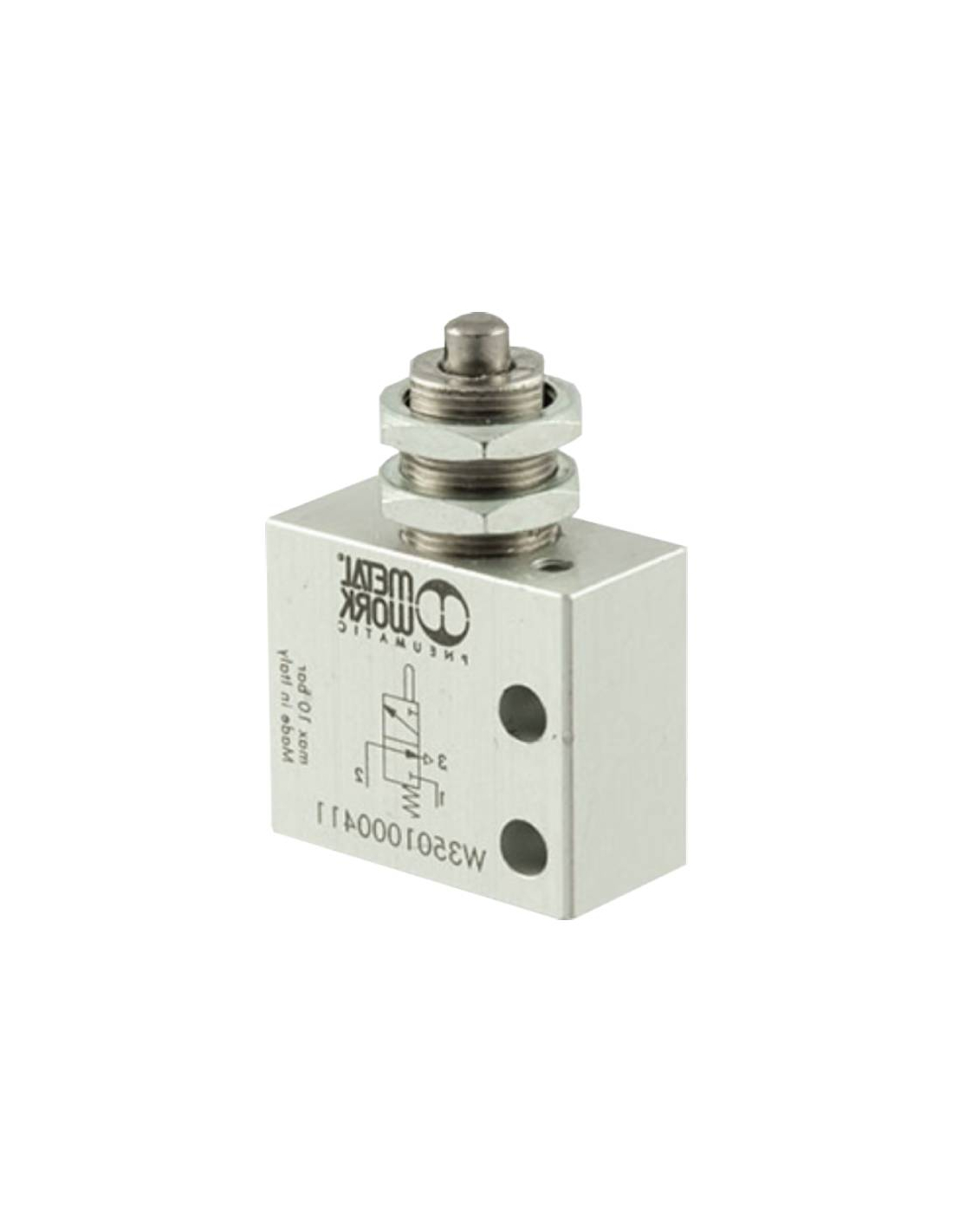

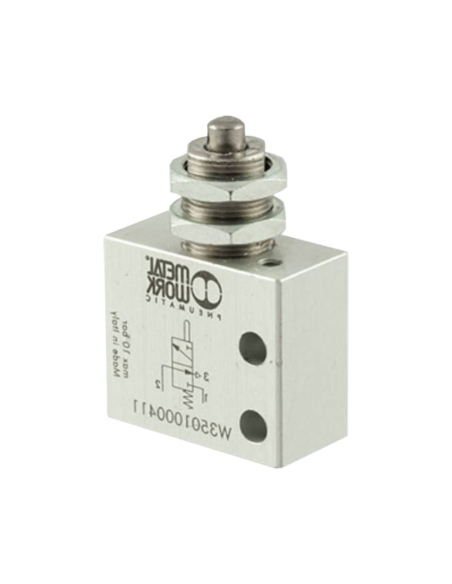

Limit Switch tire piston NC 3/2 diameter M5 - Metal Work

Name: Limit Switch tire piston NC 3/2 diameter M5 - Metal Work
Brand: Metal Work
SKU: W3501001411
Price: 20.02 EUR
Availability: InStock

€20.02 Tax included

16.28 tax excl.

W3501001411

Limit Switch pneumatic,fittings located on the side, for tube outer diameter of M5. The valve type of the limit switch is normally closed (NC).

Reference: W3501001411

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

limit switch pneumatic,with integrated quick-connect fittings for 4 mm outer diameter tube. The state of the valve of the limit switch at rest is normally closed (NC), that is, without pressing there is no presence of air in the exit, the air can not pass, when it is activated, it lets the air pass and there is pneumatic pressure at the outlet.

Manufacturer: Metal Work
Valve type: 3/2 Normally closed (NC).
Manufacturer reference: W3501001411 (VME2-14 NC M5)
Reduced drive force.
Signal speed and pressure.
Mechanical drive.
Material type: metallic.
Fittings: fast for tube diameter M5 side connection.
Installation: in any position.
Fluid: Compressed air filtered without lubrication; lubrication, if used, must be continuous.
Working pressure (bar): 0.5 ÷ 10
Working temperature (°C): -10° ÷ +60
Nominal diameter (mm) 2.5
Conductance C (Nl/min · bar): 16.5
Critical ratio b (bar/bar): 0.03
Capacity at 6 bar ΔP 0.5 bar (Nl/min): 35
Capacity at 6 bar ΔP 1 bar (Nl/min): 60
Strut drive force at 6 bar (N): 8
Lubricant recommended: ISO and UNI FD22

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Minivalves

Download (794.37KB)
