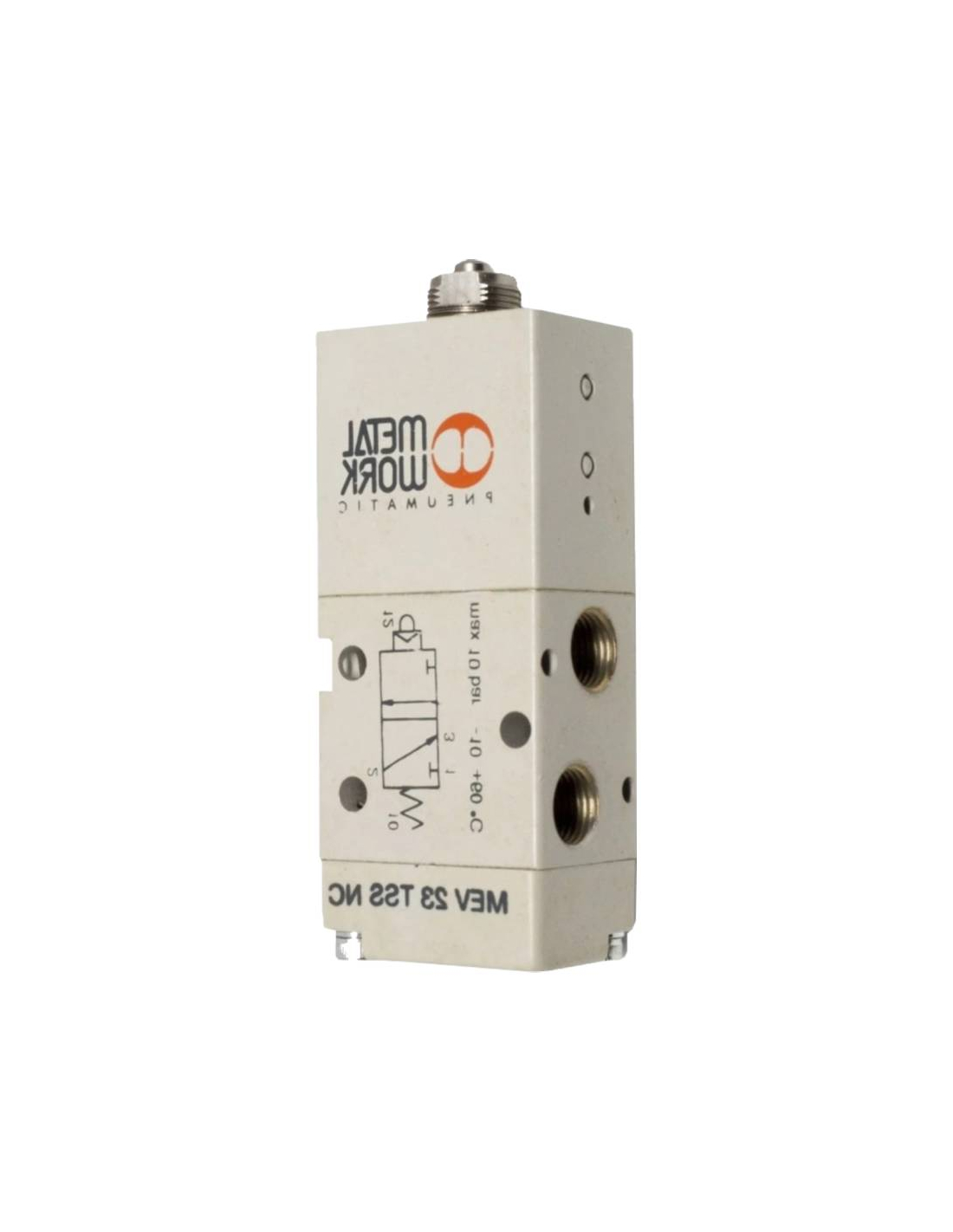

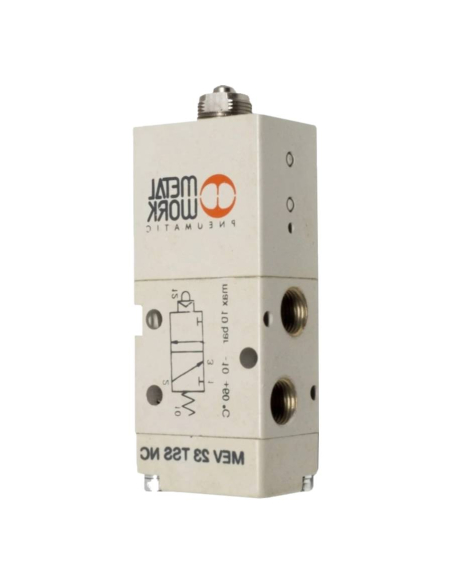

Limit Switch 1/8 3-way strut servo-pilot - Metal Work

€50.58 Tax included

€41.12 tax excl.

7001000200

limit switch pneumatic drive with push-button drive, 1/8" 3-way mechanical drive. Sensitive strut drive.

Reference: 7001000200

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


limit switch 1/8 3-way single-stable tire. Front-operated and with all tracks functional and with 1/8" thread. The valve is 3-way monostable (spring return) with sensitive strut.

Specifications:

  • Manufacturer: Metal Work.
  • Reference: MEV 23 TSS NC
  • Code: 7001000200.
  • Fluid: Pressurized or vacuum air, with or without lubrication.
  • Valve Body: aluminum.
  • Sliding material: Nickel-plated aluminum.
  • Joints: NBR.
  • number of tracks: 3.
  • Size: 1/8".
  • Working pressure: Vacuum÷10 bar.
  • Temperature: -10÷60ºC.
  • Nominal diameter: 5mm.
  • Flow rate at 6bar ΔP 0.5bar: 400 Nl/min.
  • Flow at 6bar ΔP 1bar: 550 Nl/min.
  • Installation: in any position.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

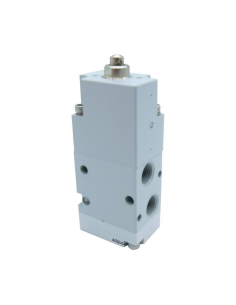

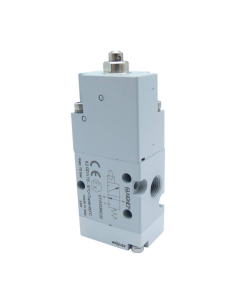

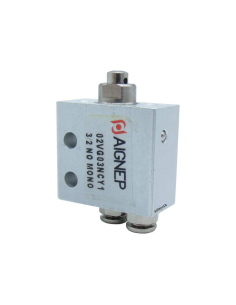

Limit switch pneumatic strut 3/2 NC rear fittings diameter 4 mm - Aignep | ADAJUSA | price
