Limit switch pneumatic 3/2 NO side fittings diameter 4 mm- Aignep

Name: Limit switch pneumatic 3/2 NO side fittings diameter 4 mm- Aignep
Brand: Aignep
SKU: 02VD03NOX1
Price: 18.876 EUR
Availability: InStock

€18.88 Tax included

€15.60 tax excl.

Limit switch 4 mm pneumatic 3 way and 2 positions, fittings located on the side for tube outer diameter of 4 mm. Prepared for mounting with emergency push button or similar.

Series: 02V
Part number: 02VD03NOX1

NORMATIVAMICROVALVULA

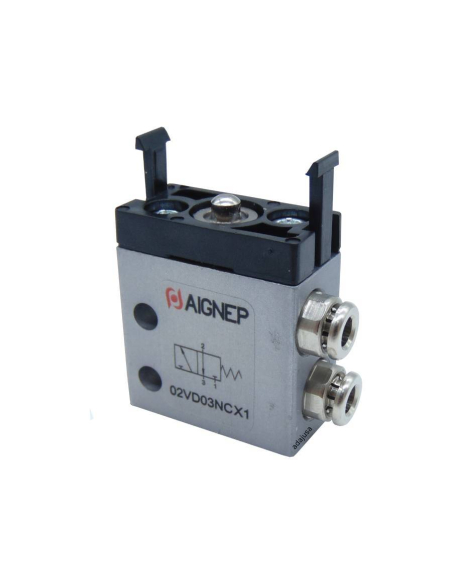

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Limit switch pneumatic 4 mm, with integrated quick-connect fittings for 4 mm outer diameter pipe. The limit switch valve is normally open (NO), i.e. no air is present at the outlet when not pressed, air can pass through and when actuated, air stops passing through and the air in the outlet circuit communicates with the exhaust.

Manufacturer: Aignep

Part number: 02VD03NOX1
Thread: M5
Valve body: anodized aluminum
Spring material: stainless steel
Seals: NBR
Fittings: quick couplings for pipe diameter 4 mm side connection.
Operating pressure: 2 ÷ 10
Operating temperature °C: -10 ÷ +60 °C
Flow rate at 6 bar ΔP 1 bar Nl/min: 100
Adapter for push-button connection included

dimensionesmicrovalvula

Material for professional use, install in compliance with the regulations in force at the place of installation.
