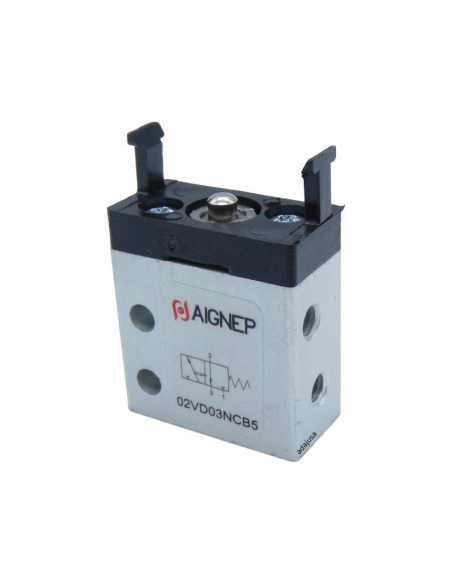

Limit switch pneumatic 3/2 NC monostable for panel mount actuators - Aignep

Name: Limit switch pneumatic 3/2 NC monostable for panel mount actuators - Aignep
Brand: Aignep
SKU: 02VD03NCB5
Price: 14.9814 EUR
Availability: InStock

€14.98 Tax included

€12.18 tax excl.

Limit switch m5 pneumatic 3 way and 2 positions, fittings located on the side for M5 outer diameter tube. Prepared for mounting with emergency push button or similar.

Series: 02V
Part number: 02VD03NCB5

NORMATIVAMICROVALVULA

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Limit switch m5 pneumatic, with integrated quick-connect fittings for M5 external pipe diameter. When the limit switch valve is at rest it is normally closed (NC), i.e. when not pressed there is no air at the outlet as air cannot pass through and when actuated it allows air to pass through and there is pneumatic pressure at the outlet.

Manufacturer: Aignep

Part number: 02VD03NCB5
Thread: M5
Valve body: anodized aluminum
Spring material: stainless steel
Seals: NBR
Fittings: quick couplings for pipe diameter M5 side connection.
Operating pressure: 2 ÷ 10
Operating temperature °C: -10 ÷ +60
Flow rate at 6 bar ΔP 1 bar Nl/min: 100
Adapter for push button connection included

dimensionesmicrovalvula

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

AIGNEP 02V series catalog

Download (4.09MB)

AIGNEP 04V series catalog

Download (4.06MB)
