Limit Switch tyre 3/2 NO rear fittings diameter 4 - Metal Work
Limit Switch tyre 3/2 NO rear fittings diameter 4 - Metal Work

Limit Switch tyre 3/2 NO rear fittings diameter 4 - Metal Work

€19.08 Tax included

€15.51 tax excl.

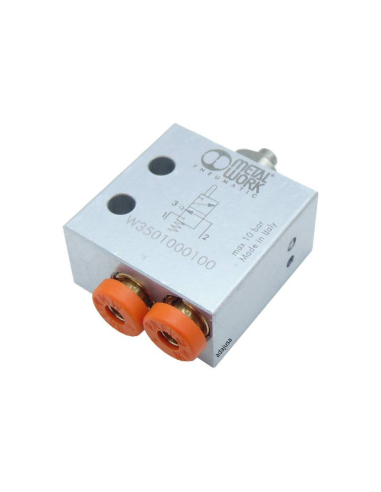

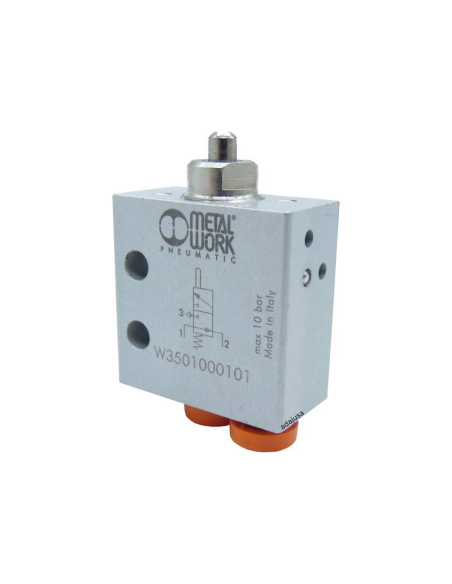

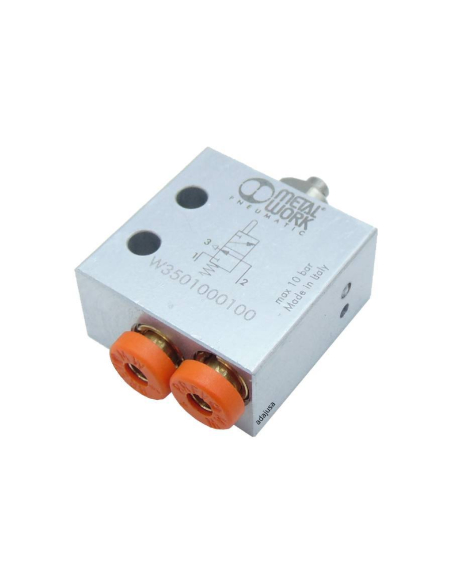

Limit Switch pneumatic (mini-valve) with push-button drive, fittings located at the rear for 4 mm outer diameter tube. The valve type of the limit switch is normally open (NO).

Reference: W3501000101

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


limit switch metal embolus drive tire, with integrated quick-connect fittings for 4mm outer diameter tube. The state of the valve at rest of the limit switch is normally open, that is, without pressing there is the presence of air in the exit, the air can pass, when it is activated, there is no pneumatic pressure at the outlet and the outlet is communicated with the exhaust to produce the discharge of air from the circuit.

  • Manufacturer: Metal Work
  • Valve type: 3/2 normally open (NA).
  • Type of limit switch drive : metal front piston.
  • Manufacturer reference: W3501000101 VME1-10 NO Ø 4
  • Reduced drive force.
  • Signal speed and pressure.
  • Mechanical drive.
  • Material type: metallic.
  • Fittings: fast for tube diameter 4mm axial connection.
  • Installation: in any position.
  • Fluid: Compressed air filtered without lubrication; lubrication, if used, must be continuous.
  • Working pressure (bar): 0.5 ÷ 10
  • Working temperature (°C): -10° ÷ +60
  • Nominal diameter (mm) 2.5
  • Conductance C (Nl/min · bar): 16.5
  • Critical ratio b (bar/bar): 0.03
  • Capacity at 6 bar ΔP 0.5 bar (Nl/min): 35
  • Capacity at 6 bar ΔP 1 bar (Nl/min): 60
  • Strut drive force at 6 bar (N): 8
  • Lubricant recommended: ISO and UNI FD22

Dimensiones final de carrera neumatico pistón NA racor de 4 trasero


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
