Pneumatic logic valve AND function 1/8 - Aignep | ADAJUSA | price

Pneumatic logic valve AND function 1/8 - Aignep | ADAJUSA | price

Pneumatic logic valve AND function 1/8 - Aignep

€17.49 Tax included

€14.22 tax excl.

8872 1/8

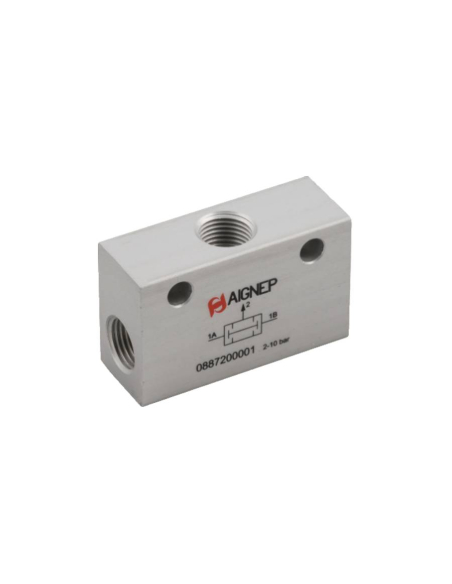

Pneumatic logic valve "AND" function with built-in quick fittings for 1/8 diameter tube.

Series: Function
Reference: 8872 1/8

8872DIAGRAM
aignep normative
Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Pneumatic logic valve "AND" function, with built-in quick fittings for 1/8 diameter tube. Fixing using through screws or DIN rail.

Regulator Features:

Manufacturer: Aignep
Reference: 8872 1/8
Valve type: logic "AND" function.
Thread size: 1/8.
Body material: Anodized aluminum.
Internal components: Brass
Gaskets: NBR
Spring: Stainless steel
Working pressure: 2 to 10 bar
Working temperature: -10ºC + 60ºC
Nominal flow at 6 bar : 100 Nl/min.
Fluid: Filtered compressed air with or without lubrication.
Installation: In any position.

8872DIMENSIONS

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab

fucntion series catalog

Download (8.93MB)
