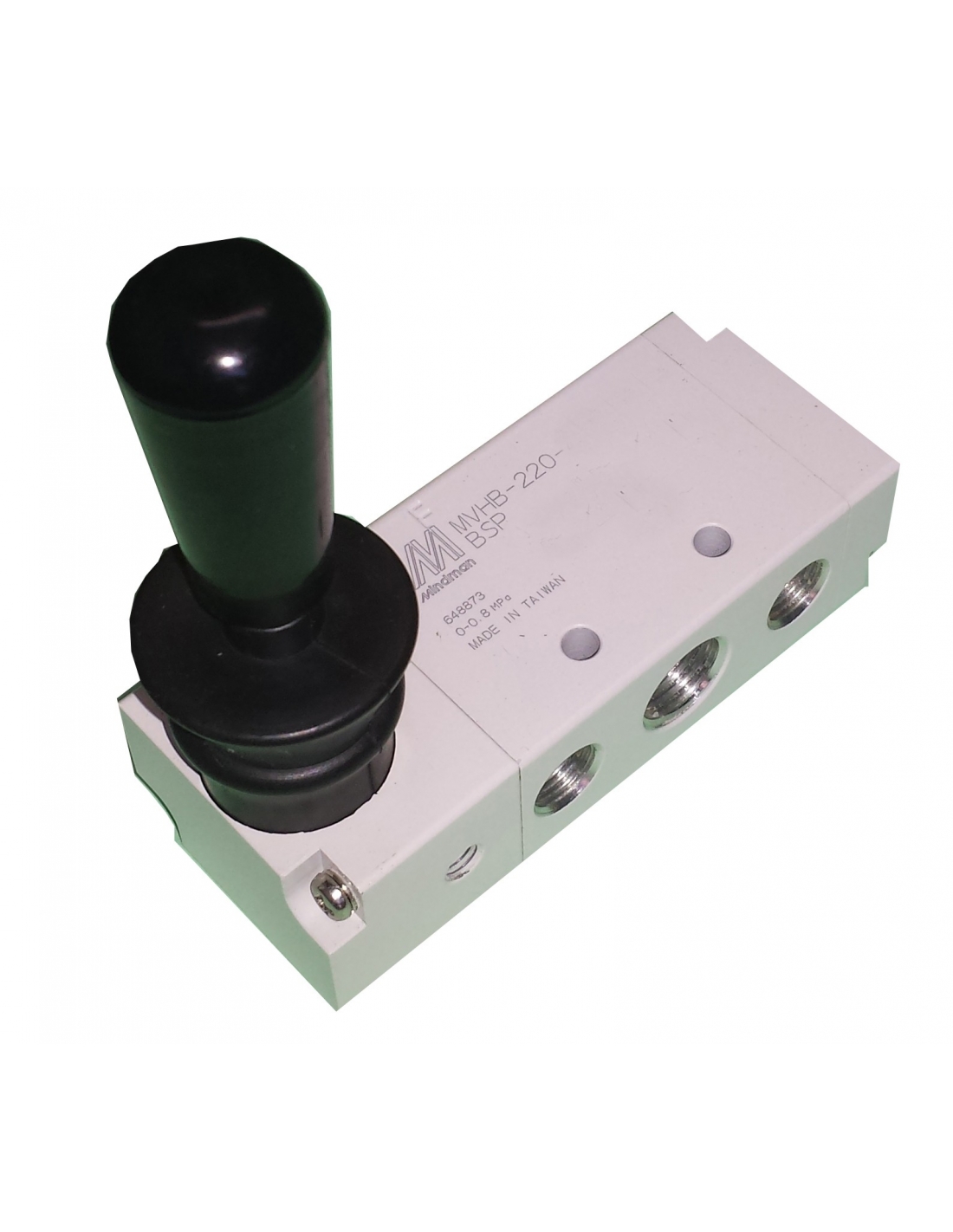

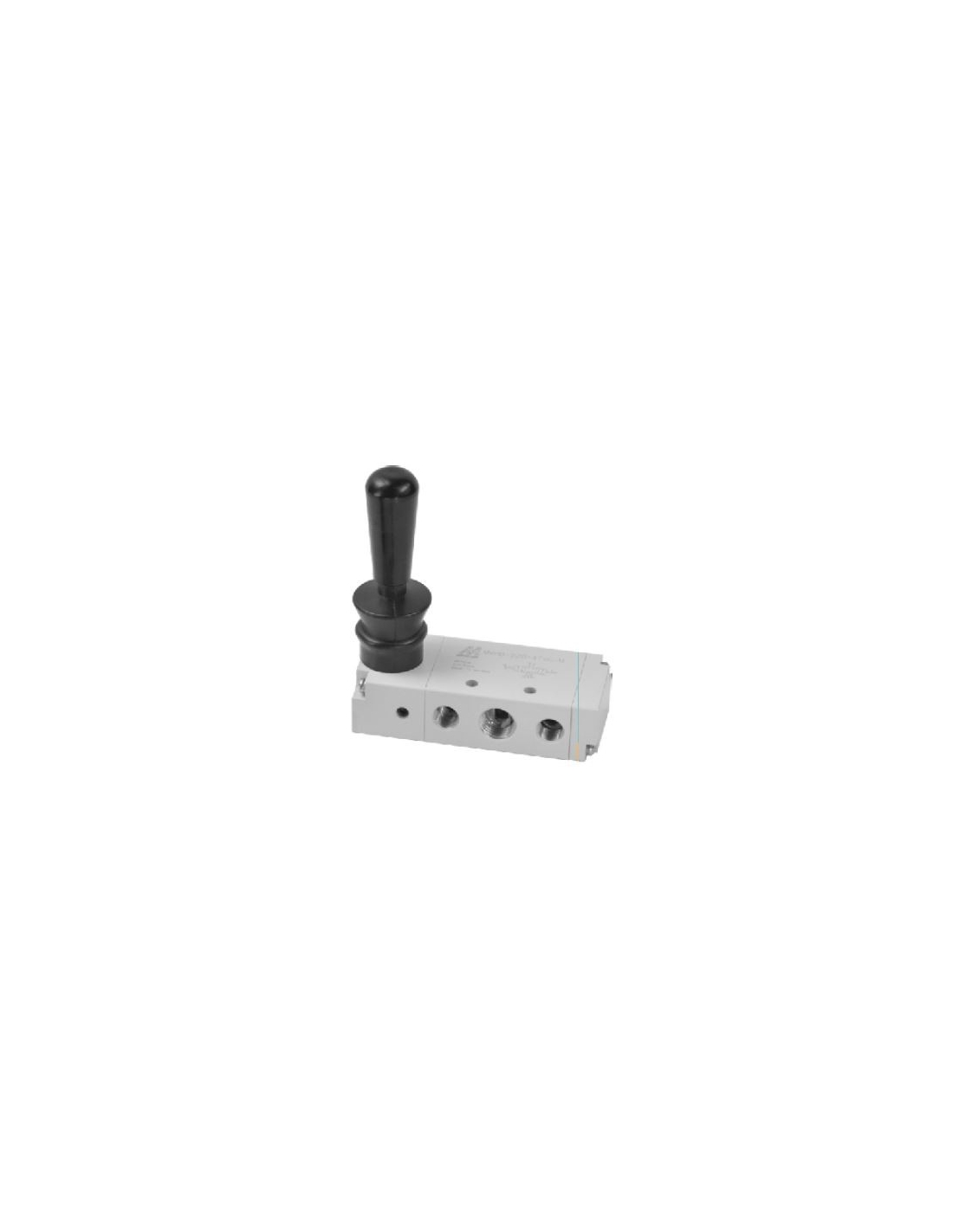

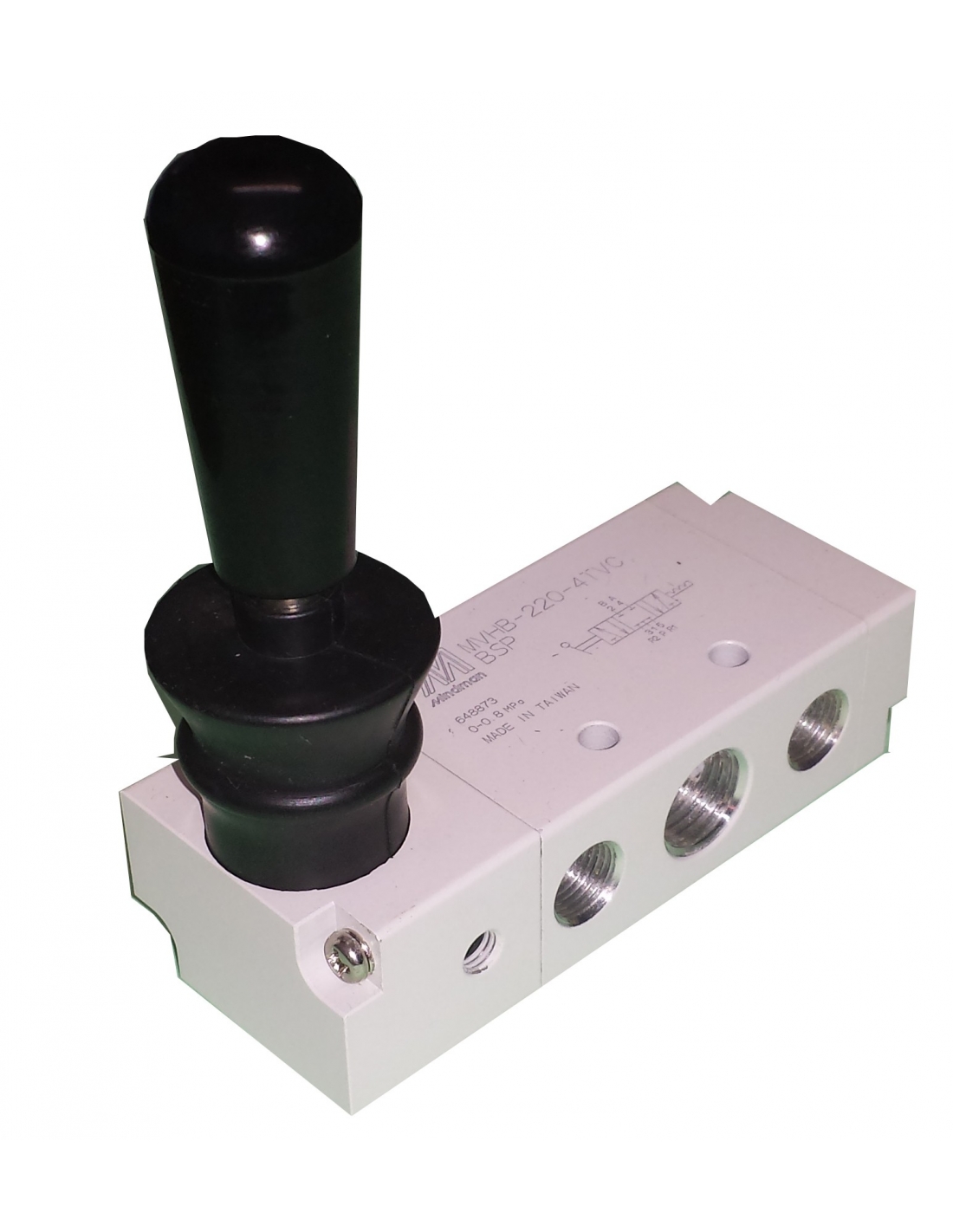

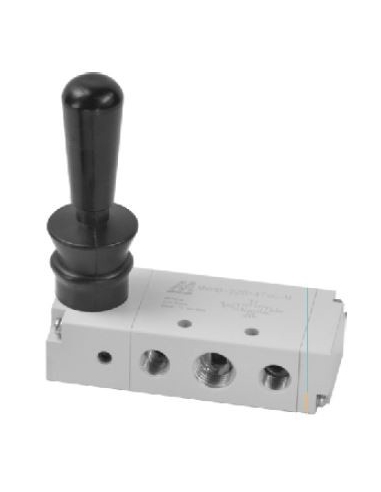

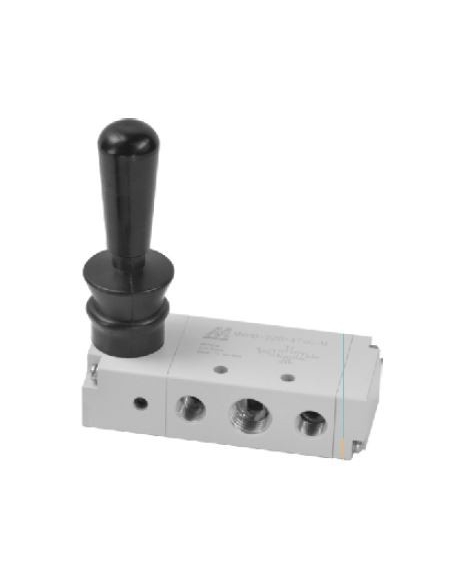

Valve 1/4 5-way 2 positions return - Mindman

€35.15 Tax included

€29.05 tax excl.

1/4 valve manual lever drive. 5 ways 2 positions return, metal body. For single and double effect cylinder control.

Reference: 281MVHB2204TVSP

https://rodavigo.net/datos/logos-marcas-png/th_mindman.png

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/4 manual lever drive valve with 2 position return lever, 5-way 2 positions that allow to control single and double effect cylinders. In one position the cylinder is collected, in another position the cylinder advances. It can also be used as a pneumatic circuit passage valve or cut-off. The exhausts are threaded at 1/8".

Technical characteristics:

  • Manufacturer: Mindman.
  • Type: 5 ways.
  • Mode: 2 bistable positions (return).
  • Thread type: G 1/4".
  • Type of exhaust threads: G 1/8".
  • Effective surface: 18mm2.
  • Fluid type: Air under pressure, with or without lubrication.
  • Working pressure: 0 to 8 Kgr.
  • Working temperature: -5o to +60o (Non-condensing).
  • Screw-fixing: 4 through holes .
  • Valve body material: Metal.
  • Weight: 193 g.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

Manual lever valve 1/8 5/3...
Lever-operated pneumatic valves 1/8

Manual lever valve 1/8 5/3 stable positions pressure centers lever 90 degrees - Aignep

Aignep
01VL27PC02
€47.80 (€39.50 tax excl.)
Valve 1/8 manually operated by 90º angle lever of 5 way and stable with 3 fixed positions, centers in pressure, the valve is actuated when the lever is actuated and returns to the rest position when the lever stops being actuated. For control of double acting cylinders. Made of anodized and painted aluminum. Series: 01VPart number: 01VL27PC02...
Valve manual lever 1/8 5/3... Valve manual lever 1/8 5/3... 2
Lever-operated valves

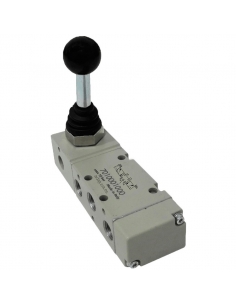

Valve manual lever 1/8 5/3 positions closed centers return spring lever 90 degrees -...

Metal Work
7010001000
€49.66 (€41.04 tax excl.)
1/8 valve manual lever drive. 5 ways 3 positions, closed centers, spring return, the valve is actuated when the lever is operated and returns to the resting position when the lever stops actuated, metal body. For dual-effect cylinder control. Reference: 7010001000 Representative image for illustrative purposes, the article supplied will correspond to...
Manual lever valve 1/4 5/3...
Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/3 stable positions open centers lever 90 degrees - Aignep

Aignep
01VL27OC03
€52.09 (€43.05 tax excl.)
Valve 1/4 manually operated by 90º angle lever of 5 way and stable with 3 fixed positions, open centers, the valve is actuated when the lever is actuated and returns to the rest position when the lever is no longer actuated. For control of double acting cylinders. Made of anodized and painted aluminum. Series: 01VPart number: 01VL27OC03 Representative...
Valve manual lever 1/8 5/3... Valve manual lever 1/8 5/3... 2
Lever-operated valves

Valve manual lever 1/8 5/3 fixed positions exhaust centers - Metal Work

Metal Work
7010000600
€49.66 (€41.04 tax excl.)
1/8 valve manual lever drive. 5 ways 3 positions, exhaust centers, 3 fixed positions, the valve changes position when the lever is operated and remains in it until it is changed position, metal body. For dual-effect cylinder control. Reference: 7010000600 Representative image for illustrative purposes, the article supplied will correspond to the...
Manual lever valve 1/4 5/3... Manual lever valve 1/4 5/3... 2
Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/3 fixed pressure centers - Metal Work

Metal Work
7020000700
€80.72 (€66.71 tax excl.)
Valve of 1/4 manual lever drive. 5 ways 3 positions, pressure centers, 3 fixed positions, the valve changes position when the lever is actuated and remains in it until it is changed position, metal body. For control of double effect cylinders. Reference: 7020000700 Representative image for illustrative purposes, the item supplied will correspond to...
Manual lever valve 1/8 5/3...
Lever-operated pneumatic valves 1/8

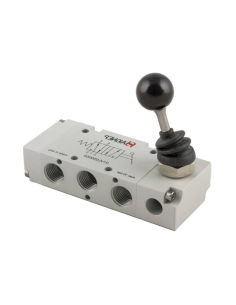

Manual lever valve 1/8 5/3 positions stable closed centers lever 90 degrees - Aignep
