Manual lever valve 1/4 5/3 stable positions open centers lever 90 degree Aignep: ADAJUSA : price

Manual lever valve 1/4 5/3 stable positions open centers lever 90 degrees - Aignep

Name: Manual lever valve 1/4 5/3 stable positions open centers lever 90 degrees - Aignep
Brand: Aignep
SKU: 01VL27OC03
Price: 55.14 EUR
Availability: BackOrder

€55.14 Tax included

44.83 tax excl.

01VL27OC03

Valve 1/4 manually operated by 90º angle lever of 5 way and stable with 3 fixed positions, open centers, the valve is actuated when the lever is actuated and returns to the rest position when the lever is no longer actuated. For control of double acting cylinders. Made of anodized and painted aluminum.

Series: 01V
Part number: 01VL27OC03

Logotipo Aignep iconos-válculas aignep

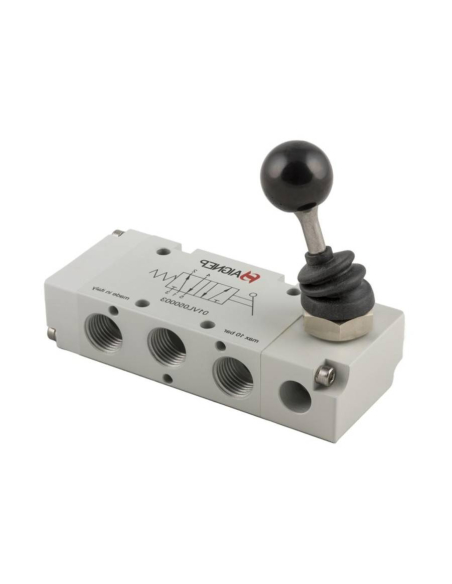

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Valve 1/4 manually operated by lever of 5 way and stable with 3 fixed positions, open centers, the valve is actuated when the lever is actuated and returns to the rest position when the lever stops being actuated, for control of double acting cylinders, the valve has 3 positions, in one of them the cylinder advances, in the central one, the cylinder stops but maintains pressure (force) not letting the air present in its outlets escape, and in the other position the cylinder is collected.

Actuated by angular lever at 90º.

Manufacturer: Aignep

Part number: 01VL27OC03
Working pressure: Vacuum ÷ 10
Operating temperature °C: -10 ÷ +60
Panel mounting: M16x1
Flow rate at 6 bar ΔP 1 bar Nl/min: 1200

CCDIMENSIONES4

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab

Aignep valves catalog

Aignep series 01 valves and solenoid valves catalog

Download (8.44MB)
