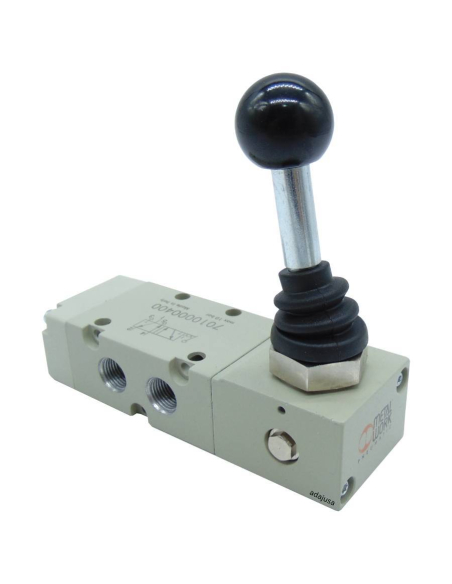

Manual lever valve 1/4 5/3 fixed closed centers - Metal Work
Manual lever valve 1/4 5/3 fixed closed centers - Metal Work

Manual lever valve 1/4 5/3 fixed closed centers - Metal Work

€80.72 Tax included

€66.71 tax excl.

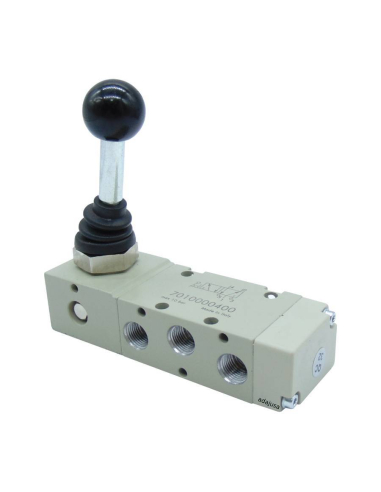

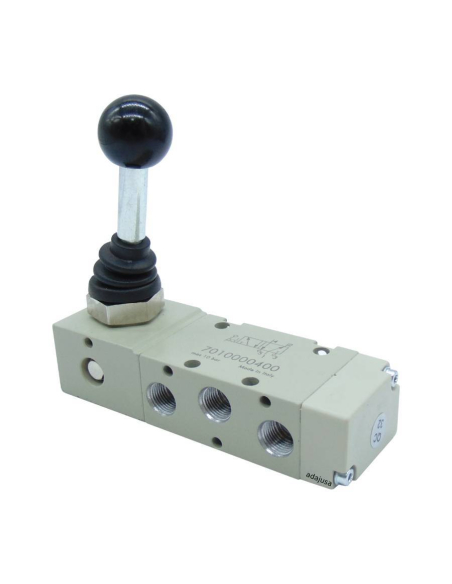

Valve of 1/4 manual lever drive. 5 ways 3 positions, closed centers, 3 fixed positions, the valve changes position when the lever is actuated and remains in it until it is changed position, metal body. For control of double effect cylinders.

Reference: 7020000500

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Valve of 1/4 manual actuation by lever of 3 positions, closed centers, 3 fixed positions, the valve changes position when the lever is activated and remains in it until it changes position, for control of cylinders of double effect, the valve has 3 positions, in one of them the cylinder advances, in the central, the cylinder stops but maintains pressure (force) not letting the air present in its outlets escape, and in the other position the cylinder is collected.

It can also be used as a step or cut valve and for general use

Specifications:

  • Manufacturer: Metal Work.
  • Reference: MAV 36 LEO CC.
  • Code: 7020000500
  • Fluid: Pressurized or vacuum air, with or without lubrication.
  • Valve Body: aluminum.
  • Sliding material: Nickel-plated aluminum.
  • Joints: NBR.
  • number of tracks: 5.
  • Size: 1/4".
  • Positions: 3 closed centers
  • Control: By lever.
  • Working pressure: Vacuum÷10 bar.
  • Temperature: -10÷60ºC.
  • Nominal diameter: 7.5
  • Conductance C (Nl/min · bar): 264.26
  • Critical ratio b (bar/bar): 0.27
  • Flow rate at 6bar ΔP 0.5bar: 750 Nl/min.
  • Flow rate at 6bar ΔP 1bar: 1100 Nl/min.
  • Installation: in any position.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Manual lever valve 1/4 5/3... Manual lever valve 1/4 5/3... 2
Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/3 closed centers return spring lever 90 degrees - Metal Work

Metal Work
7020001000
€80.72 (€66.71 tax excl.)
Valve of 1/4 manual lever drive. 5 ways 3 positions, closed centers, spring return, the valve is actuated when the lever is actuated and returns to the resting position when the lever stops being operated, metal body. For control of double effect cylinders. Reference: 7020001000 Representative image for illustrative purposes, the item supplied will...
Manual lever valve 1/4 5/3... Manual lever valve 1/4 5/3... 2
Lever-operated pneumatic valves 1/4

Manual lever valve 1/4 5/3 centers escape return spring lever 90 degrees - Metal Work

Metal Work
7020000900
€80.72 (€66.71 tax excl.)
Valve of 1/4 manual lever drive. 5-way 3 positions, escape centers, spring return, the valve is actuated when the lever is actuated and returns to the resting position when the lever stops being operated, metal body. For control of double effect cylinders. Reference: 7020000900 Representative image for illustrative purposes, the item supplied will...
Manual lever valve 1/4 5/3... Manual lever valve 1/4 5/3... 2
Lever-operated pneumatic valves 1/4

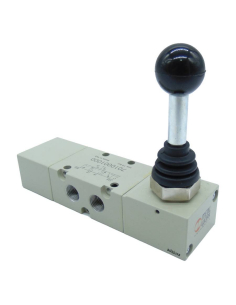

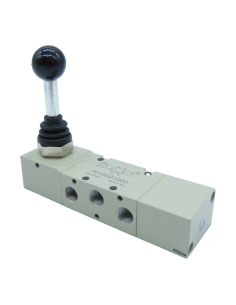

Manual lever valve 1/4 5/3 centers pressure return spring lever 90 degrees - Metal Work
