Valve 1/4 5-way 3 fixed positions c.e.- Mindman

€36.06 Tax included

€29.80 tax excl.

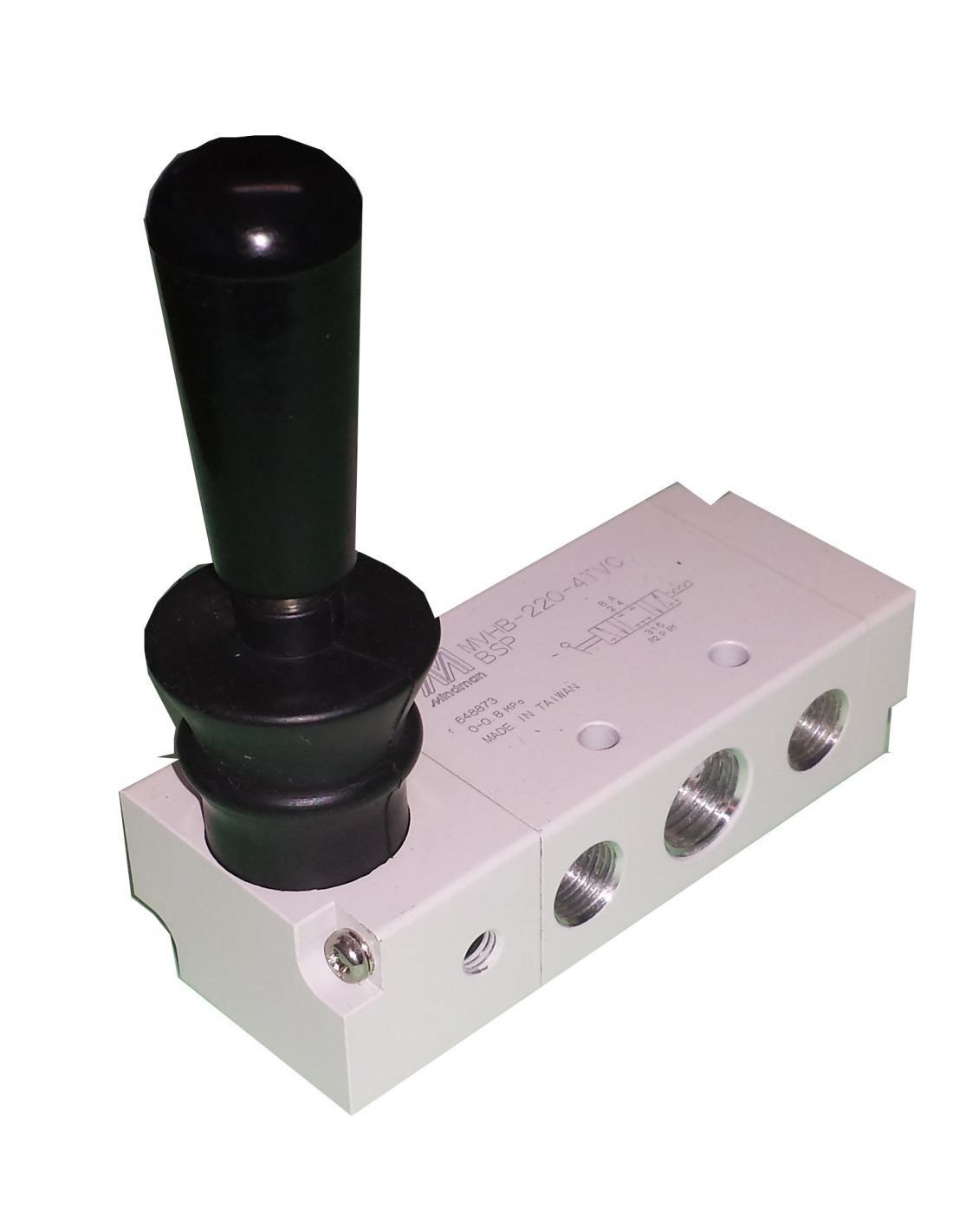

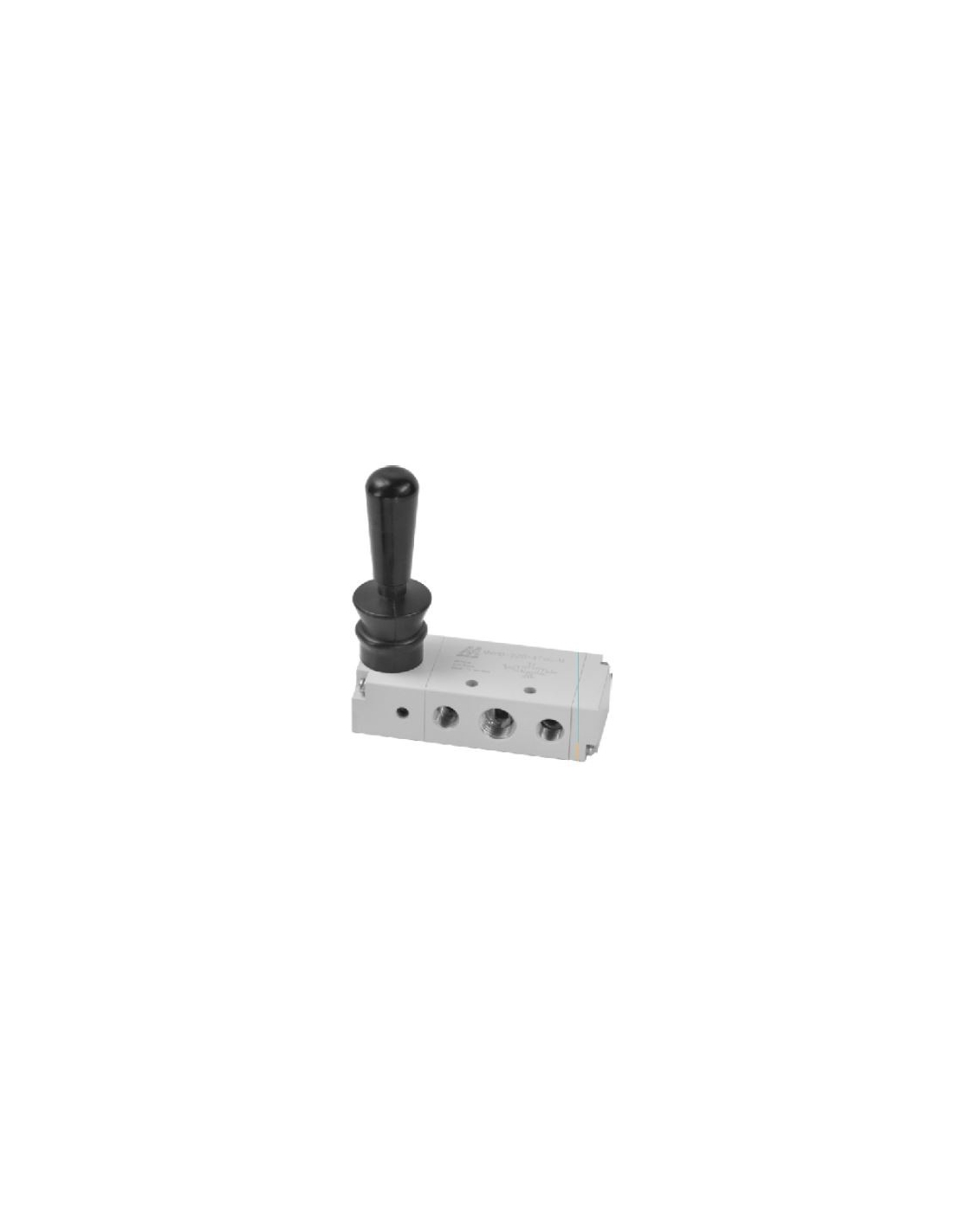

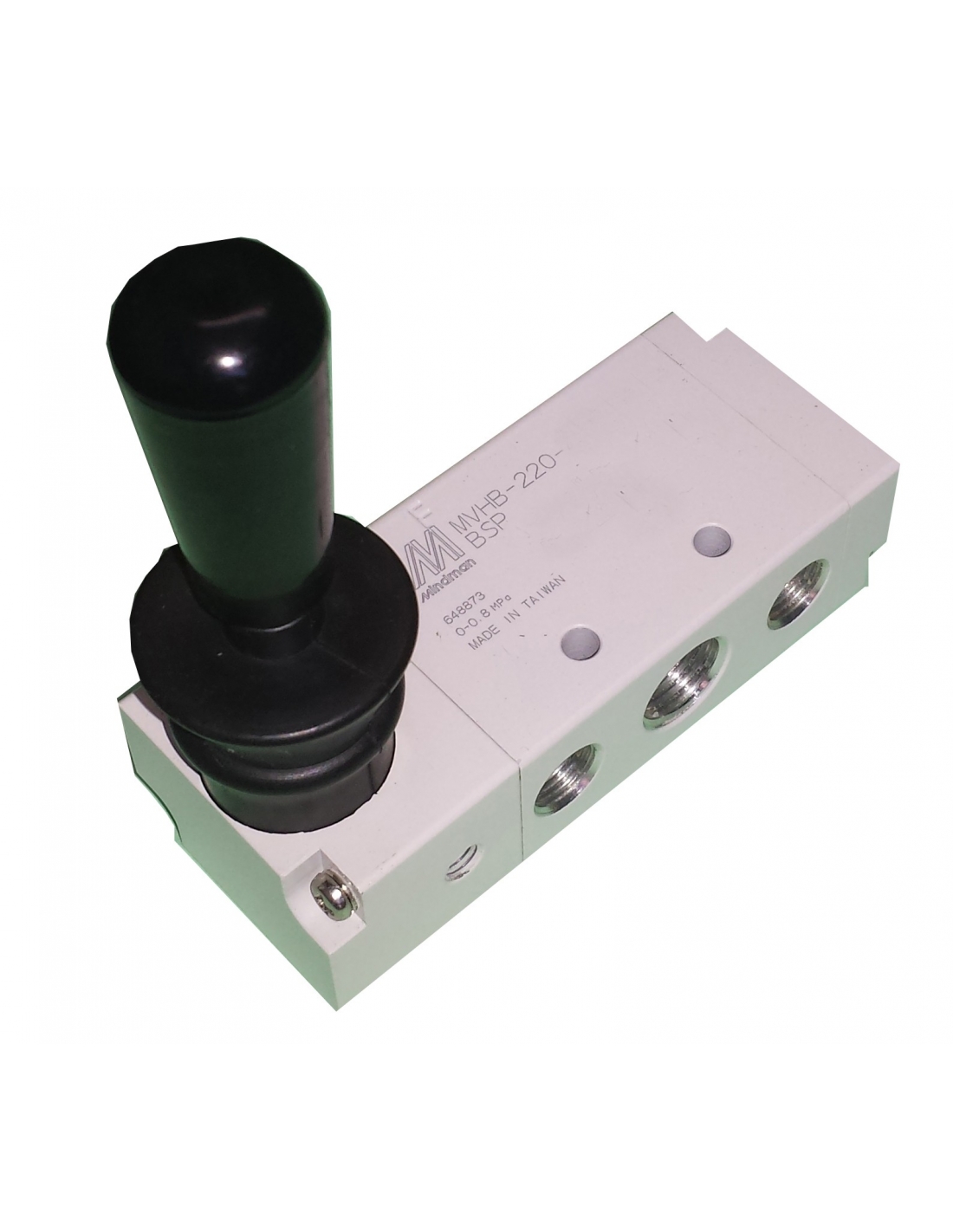

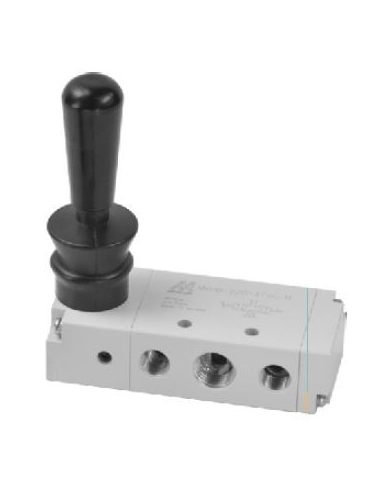

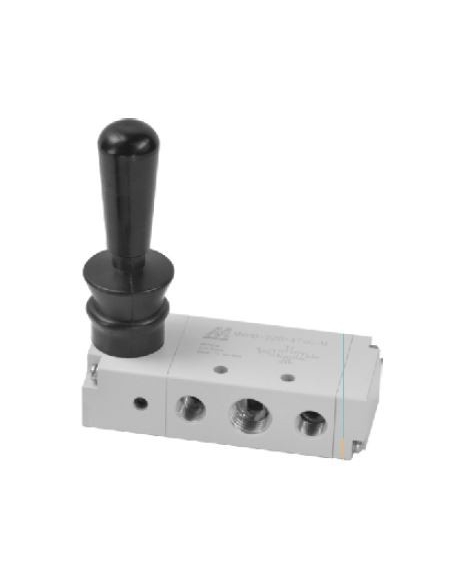

1/4 valve manual drive per lever. 5 ways 3 fixed positions, escape centers, metal body. For dual-effect cylinder control.

Reference: 281MVHB2204TVR
https://rodavigo.net/datos/logos-marcas-png/th_mindman.png

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/4 manual lever-operated valve with 3 fixed positions, exhaust centers, for double-effect cylinder control. The valve has 3 stable positions, in one of them the cylinder advances, in the middle, the cylinder runs out of pressure (force), and in the other position the cylinder is collected.

It can also be used as a pass-through or cutting valve and general purpose

Technical characteristics:

  • Manufacturer: Mindman.
  • Reference: MVHB2604TVR.
  • Type: 5 ways.
  • Mode: 3 bistable (fixed) positions, exhaust centers.
  • Thread type: G 1/4".
  • Type of exhaust threads: G 1/8".
  • Effective surface: 18mm2.
  • Fluid type: Air under pressure, with or without lubrication.
  • Working pressure: 0 to 8 Kgr.
  • Working temperature: -5o to +60o (Non-condensing).
  • Screw-fixing: 4 through holes .
  • Valve body material: Metal.
  • Weight: 278 g.

Dimensiones válvula manual 1/4 5/2 centros en escape Mindman

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
