Pneumatic logic valve function NO - Metal Work

Name: Pneumatic logic valve function NO - Metal Work
Brand: Metal Work
SKU: W3604000003
Price: 28.6467 EUR
Availability: InStock

€28.65 Tax included

€23.29 tax excl.

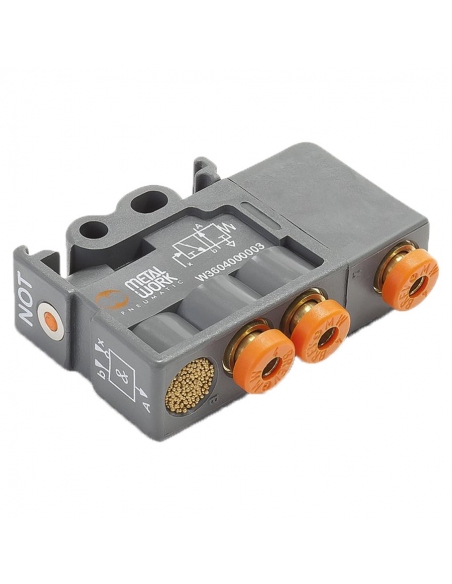

Pneumatic logic valve function "NOT" with built-in quick fittings for 4mm diameter tube.

Reference: W3604000003

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic logic valve function "NOT", with built-in quick fittings for tube of diameter 4mm. fixation by through screws or for din-rail.

Manufacturer: Metal Work.

Manufacturer reference: W3604000003

Technical features:

Valve type: "NO" logic function.
Type of fittings: Quick connection Ø4.
Type of material: Technopolymer.
Working pressure: 0 to 8 bar, piloting pressure from 1.5 to 8 - 0.4 switching threshold at 6 bar
Nominal diameter: 2.7 mm.
Flow rate at 6 bar: 100 Nl/min.
Fluid: Compressed air filtered with or without lubrication.
Installation: In any position.
Mounting: In DIN profile or by means of through screws diameter 4.2mm.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Auxiliary valves

Download (844.62KB)
