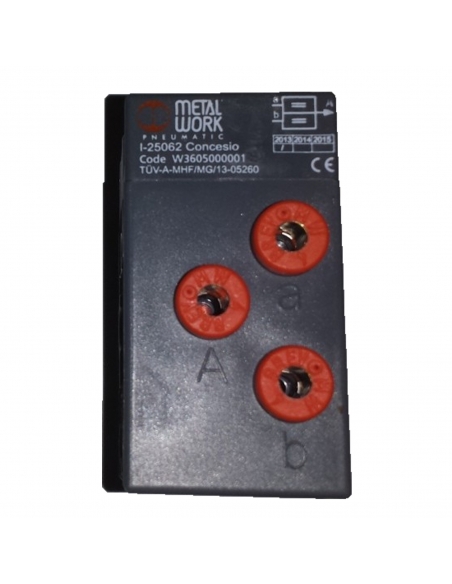

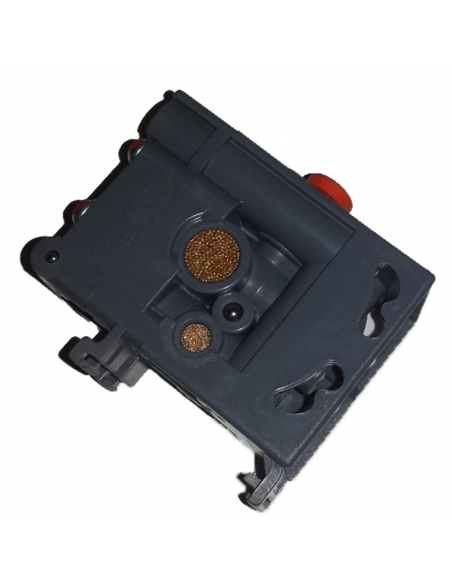

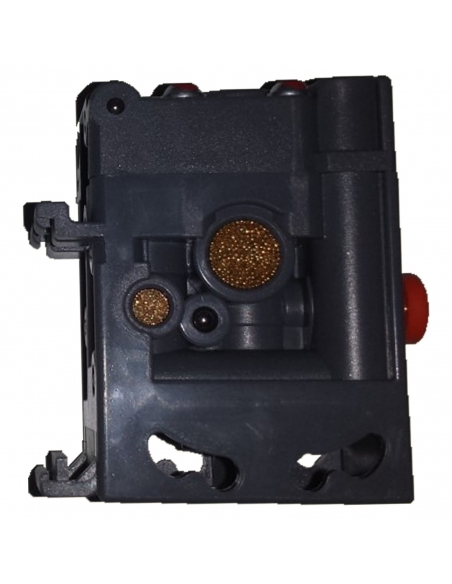

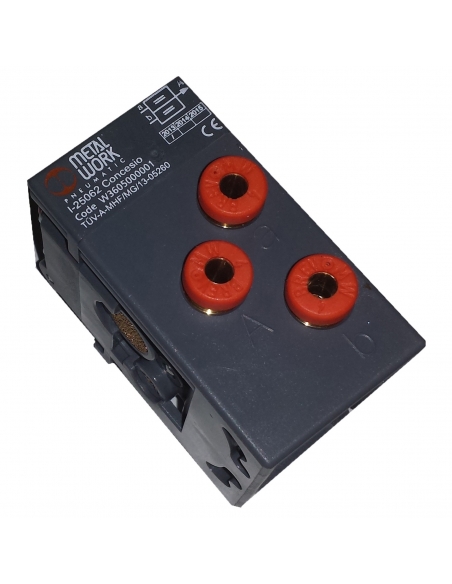

Safety valve for pneumatic bimanual control

Safety valve for pneumatic bimanual control

Name: Safety valve for pneumatic bimanual control
Brand: Metal Work
SKU: W3605000001
Price: 143.9223 EUR
Availability: InStock

€143.92 Tax included

€117.01 tax excl.

Safety valve for pneumatic bimanual control.

Reference: W3605000001

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

This bimanual control block emits an output signal when the two synchronized input signals are present, i.e. the two have to arrive with a difference of no more than 0.4 sec. The output signal disappears as soon as any of the input signals disappear.

Fastening can be done by means of screws to the valve or by DIN rail.

Technical features:

Valve type: synchronized "Y" logic function.
Type of fittings: Quick connect 4 .
Maximum time synchronization between the two input signals: 0.4 sec.
Closing time: less than 0.05 sec.
Drive: pneumatic.
Working pressure: 2.5.. 8
Working temperature: -10.. 60o.
Mounting position: In any position.
Standard: EN574 type IIIA. T-V A/MHF/MG/13-05260. CE marking.

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Limit Switch tyre 3/2 NC rear fittings diameter 4 - Metal Work

Metal Work

W3501000100

€17.40 (€14.15 tax excl.)

limit switch pneumatic with pushbutton drive, fittings (axial connections) located at the rear for 4 mm outer diameter tube. The valve type of the limit switch is normally closed (NC). Reference: W3501000100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Wall fittings

Bulkhead fitting 4 metal - Metal Work

Metal Work

2L11001

€3.81 (€3.10 tax excl.)

Racor metal wall passage for tube Ø4, straight and instantaneous connections, made of nickel-plated brass, for pneumatic and vacuum applications. M12x1 threaded body with nuts included in supply.Reference: 2L11001 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit Switch tyre 3/2 NO side fittings diameter 4 - Metal Work

Metal Work

W3501001100

€20.61 (€16.76 tax excl.)

limit switch pneumatic with push-button drive, fittings located on the side for outer diameter tube of 4 mm. The valve type of the limit switch is normally open (NA). Reference: W3501001100 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pushbuttons and pneumatic actuators

Adapter for push-button valve or selector - Metal Work

Metal Work

0351000050

€2.56 (€2.08 tax excl.)

Adapter for placing valves (W3501000100, W3501000101, W3501001100 or W3501001101) on pushbuttons - selectors (W0351000011, W0351000014 or W0351000031) Reference: 0351000050 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pushbuttons and pneumatic actuators

Pushbutton for pneumatic valve - Metal Work

Metal Work

W0351000011

€11.06 (€8.99 tax excl.)

Monostable protected pushbutton with red and black discReference: W0351000011 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pushbuttons and pneumatic actuators

Pneumatic emergency mushroom-head button - Metal Work

Metal Work

W0351000014

€25.99 (€21.13 tax excl.)

Pneumatic emergency stop button, drill diameter 22.5mm. With valve adapter.Reference: W0351000014 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

10 other products in the same category:

Logic valves and special valves

Valve 1/8 thread circuit selector - Metal Work

Metal Work

W3603000001

€13.39 (€10.89 tax excl.)

Circuit selector valve, with 1/8" thread.Reference: W3603000001 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Logic valves and special valves

Pneumatic logic valve OR function 1/8 - Aignep

Aignep

8870 1/8

€16.99 (€13.81 tax excl.)

Pneumatic logic valve "OR" function with built-in quick fittings for 1/8 diameter tube Series: Function Reference: 8870 1/8 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Logic valves and special valves

Pneumatic logic valve function AND - Metal Work

Metal Work

W3604000002

€18.78 (€15.27 tax excl.)

Pneumatic logic valve function "AND" with built-in quick fittings for 4mm diameter tube. Reference: W3604000002 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Logic valves and special valves

Pneumatic logic valve function NO - Metal Work

Metal Work

W3604000003

€28.65 (€23.29 tax excl.)

Pneumatic logic valve function "NOT" with built-in quick fittings for 4mm diameter tube.Reference: W3604000003 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Logic valves and special valves

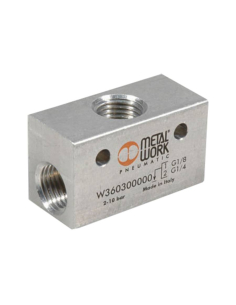

Valve 1/4 thread circuit selector - Metal Work

Metal Work

W3603000002

€13.78 (€11.20 tax excl.)

Circuit selector valve, with 1/4" thread. Reference: W3603000002 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Logic valves and special valves

Pneumatic logic valve AND function 1/8 - Aignep

Aignep

8872 1/8

€17.29 (€14.06 tax excl.)

Pneumatic logic valve "AND" function with built-in quick fittings for 1/8 diameter tube. Series: Function Reference: 8872 1/8 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Pneumatic logic valve function O Metal Work - ADAJUSA

Pneumatic logic valve function O Metal Work - ADAJUSA 2

Logic valves and special valves

Pneumatic logic valve function OR - Metal Work

Metal Work

W3604000001

€17.24 (€14.02 tax excl.)

Pneumatic logic valve function "OR" with built-in quick fittings for 4mm diameter tube.Reference: W3604000001 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Logic valves and special valves

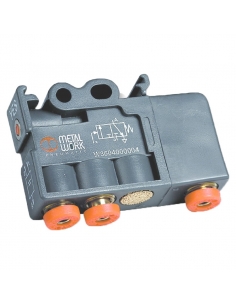

Pneumatic logic valve function YES - Metal Work

Metal Work

W3604000004

€30.18 (€24.54 tax excl.)

Pneumatic logic valve function "YES" with built-in quick fittings for 4mm diameter tube.Reference: W3604000004 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Logic valves and special valves

Pneumatic timer - Metal Work

Metal Work

W3604000006

€126.71 (€103.02 tax excl.)

Pneumatic timer, with a regulation range between 0 and 30 seconds. Quick connect fittings integrated into the 4mm diameter timer body.Reference: W3604000006 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Auxiliary valve logical memory - Metal Work - ADAJUSA

Logic valves and special valves

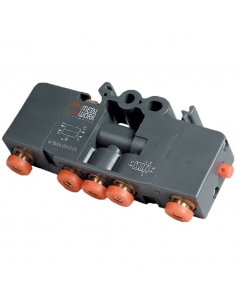

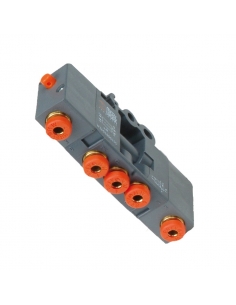

Auxiliary valve logical memory - Metal Work
