Pressure Regulator with pressure gauge and lockable 3/4 0-8 bar size 3 FRL EVO series - Aignep

Name: Pressure Regulator with pressure gauge and lockable 3/4 0-8 bar size 3 FRL EVO series - Aignep
Brand: Aignep
SKU: Y020307030000
Price: 68.27 EUR
Availability: BackOrder

€68.27 Tax included

55.5 tax excl.

Y020307030000

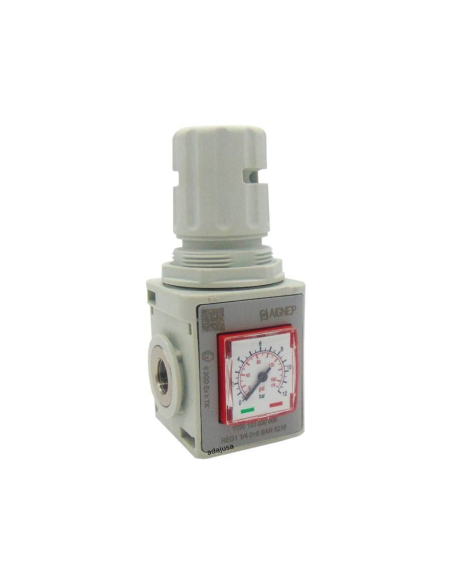

3/4" pressure Regulator with integrated pressure gauge, range 0-8 bar , size 3, technopolymer body and metal finishes . Allows output pressure stability at the preset pressure . Possibility of fixing by means of side drills. Padlock locking system. Made in Italy.

Series: FRL Evo
Reference: Y020307030000

Aignep logo regulations

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

3/4" pressure Regulator with integrated pressure gauge, range 0-8 bar . Allows output pressure stability at the preset pressure starting from an equal or higher input pressure. Compact size (T3). Fixing by means of side drills. Knob with padlock lock and possibility of coupling various regulators in series with individual pressure regulation.

FRL EVO BLOCKING REGULATOR

It supports a wide variety of mounting types, with the appropriate accessories.

Technical characteristics.

Manufacturer: Aignep
Reference: Y020307030000
Regulator size: size 3.
Threaded connection size: 3/4".
Regulation range: 0-8 bar .
Maximum inlet pressure: 13 bar .
Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 7700
Fluid: Compressed air or other inert gases
Wall fixing screws: M6x15
Mounting position: Vertical.
Working temperature: -10 to +50ºC.
Mounting accessories both individually and in series: not included

For other sizes or references: consult.

Dimensions of the Syntesi regulator size 1 Metal Work

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Catalogo FRL EVO

Download (4.94MB)
